February 25, 2025

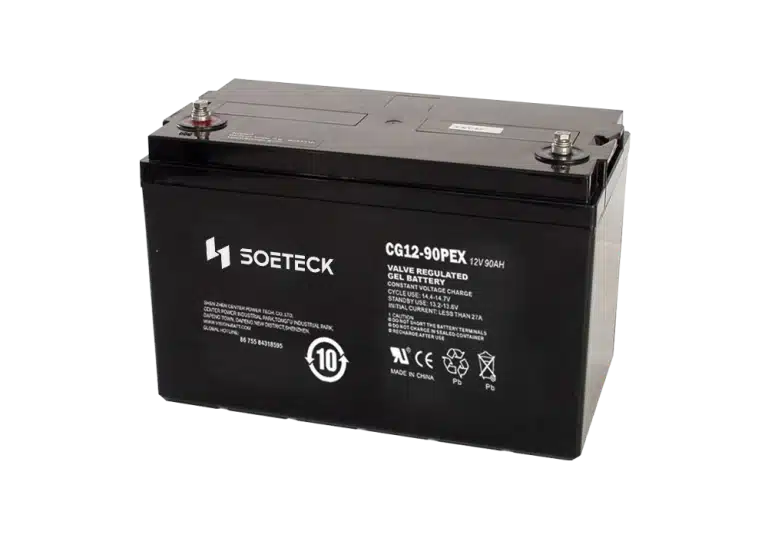

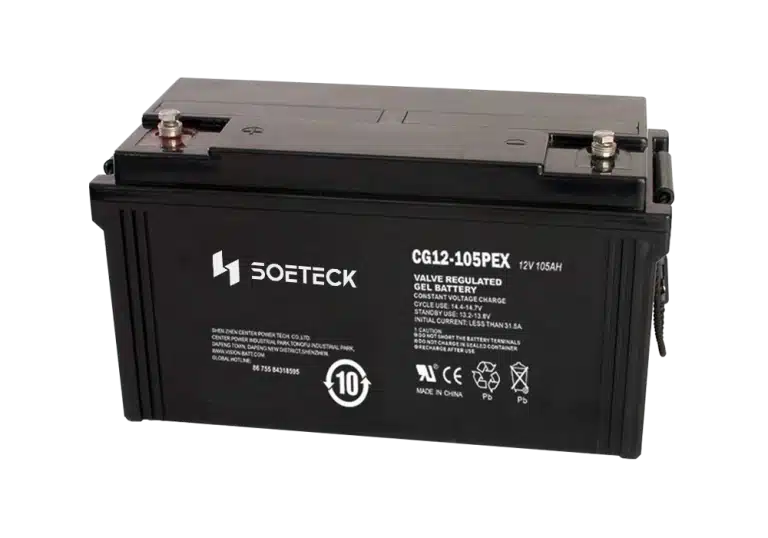

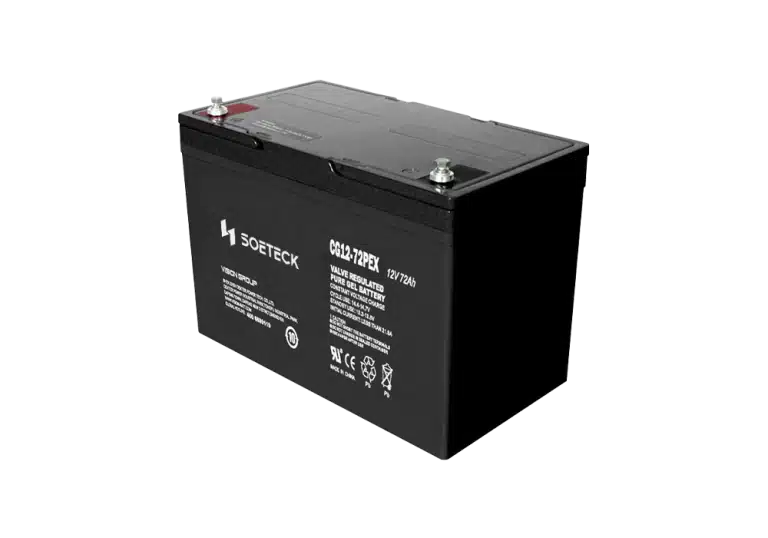

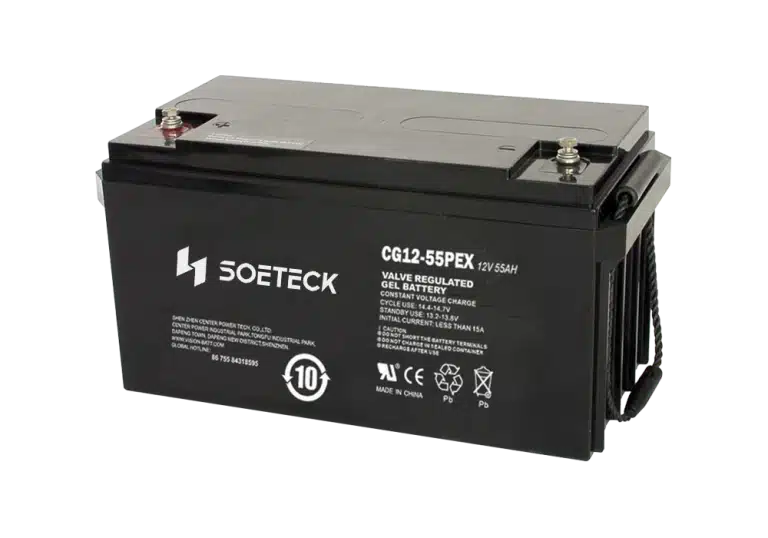

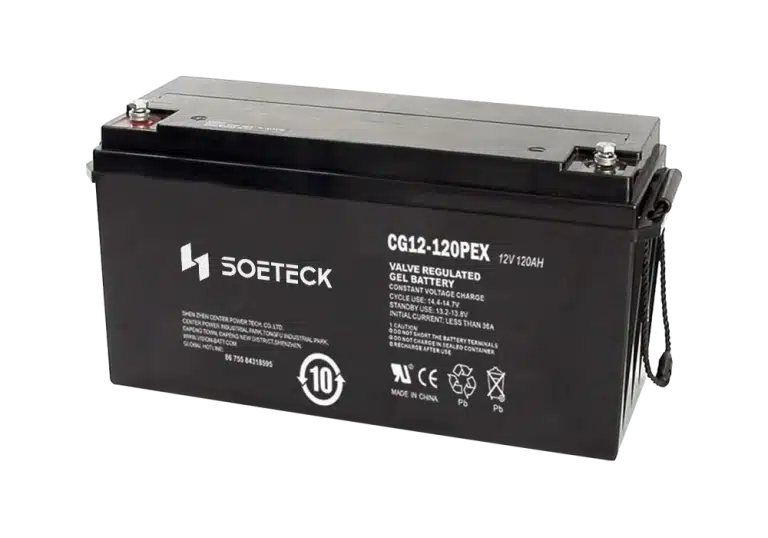

The SOETECK SY-VRLA Series represents a cutting-edge 12V Gel Battery solution, engineered with advanced nanometer SiO2 electrolyte technology. Delivering an exceptional 99% gas recombination efficiency, these batteries provide unparalleled reliability for critical data center and industrial power infrastructure.
Featuring a 12-year design life and superior deep discharge capabilities, the battery series offers remarkable performance across -20°C to 60°C temperature ranges. Its innovative lead-calcium alloy grid design ensures high power density, low self-discharge, and maintenance-free operation, making it the optimal choice for demanding technological environments.
| Nominal Voltage | 12V |
| Rated Capacity | 55~220Ah ( 20A, 77℉ or 25℃) |
| Design Life | 12 years |
| Number of Cells | 6 |
| Electrolyte | Gelled acid |
| Positive plate | Lead dioxide |
| Negative plate | Lead |
| Container | ABS |
In the realm of data center infrastructure, the SOETECK SY-VRLA Series 12V Gel Battery delivers exceptional power reliability and performance. With its innovative nanometer SiO2 electrolyte technology, it achieves a 99% gas recombination efficiency, providing a stable backup power solution with minimal maintenance requirements.
Engineered with advanced lead-calcium alloy grids, the SOETECK SY-VRLA Series offers high power density, making it suitable for demanding UPS and server backup systems. Its design enables rapid recovery to 100% capacity even after prolonged discharges, ensuring continuous power for critical IT infrastructures. The battery’s low internal resistance and superior deep discharge characteristics guarantee seamless performance across complex technological environments, significantly reducing the risk of operational disruptions.
With a design life of 12 years and an operational temperature range of -20°C to 60°C, these batteries set a new standard for energy storage reliability. Available capacities from 55Ah to 220Ah and a cycle life that outperforms traditional AGM technologies by over 50% provide a strategic advantage—lowering total cost of ownership, enhancing system resilience, and offering data centers a robust, future-proof energy storage solution that turns potential vulnerabilities into strengths.
The SOETECK SY-VRLA Series consists of 12V gel batteries offered in 55-220Ah configurations for scalability in data center UPS applications. Utilizing nano-silica electrolyte technology, these batteries achieve 99% recombination efficiency, a 12-year lifespan, and a monthly self-discharge rate of less than 2%, ensuring readiness for emergency power needs.
Models in the series provide compact solutions for edge nodes, with lower-capacity options weighing between 19-44.5 kg and featuring a resistance of ≤8mΩ. High-capacity units, suitable for primary data halls, deliver 1000A pulse outputs and weigh 59-72.5 kg with ≤4mΩ resistance. Notably, the SY-GJM121200 balances 120Ah capacity with portability, making it ideal for modular UPS deployments.
All models operate within a temperature range of -20°C to 60°C, with high-capacity variants enhancing thermal management through copper terminals and flame-retardant ABS. The SY-GJM122200 offers 220Ah in a compact 521×269mm footprint, providing 30% higher energy density than conventional VRLA batteries, meeting the demands of hyperscale infrastructure.
| Models | Nominal Voltage | Rated Capacity | Length | Width | Height | Total Height | Appox.Weight |
|---|---|---|---|---|---|---|---|
| SY-GJM12055 | 12V | 55Ah (10hrs/25℃) | 350mm | 167mm | 179mm | 179mm | 19.0 kg |
| SY-GJM12090 | 12V | 90Ah (10hrs/25℃) | 330mm | 171mm | 215mm | 220mm | 29.5 kg |
| SY-GJM12105 | 12V | 105Ah (10hrs/25℃) | 410mm | 176mm | 224mm | 224mm | 35.5 kg |
| SY-GJM12120 | 12V | 120Ah (10hrs/25℃) | 482mm | 170mm | 240mm | 240mm | 44.5 kg |
| SY-GJM12135 | 12V | 135Ah (10hrs/25℃) | 482mm | 170mm | 240mm | 240mm | 46.0 kg |
| SY-GJM12160 | 12V | 160Ah (10hrs/25℃) | 530mm | 207mm | 215mm | 220mm | 59.0 kg |
| SY-GJM12180 | 12V | 180Ah (10hrs/25℃) | 522mm | 238mm | 218mm | 223mm | 63.0 kg |
| SY-GJM12200 | 12V | 200Ah (10hrs/25℃) | 520mm | 269mm | 203mm | 208mm | 70.0 kg |
| SY-GJM12220 | 12V | 220Ah (10hrs/25℃) | 521mm | 269mm | 220mm | 225mm | 72.5 kg |
Data coming soon! Please revisit this page later, or reach out to us for additional details.
