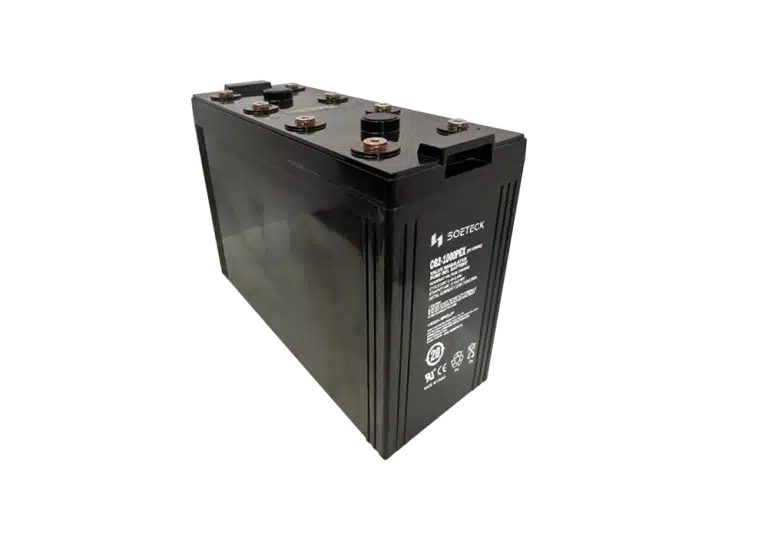

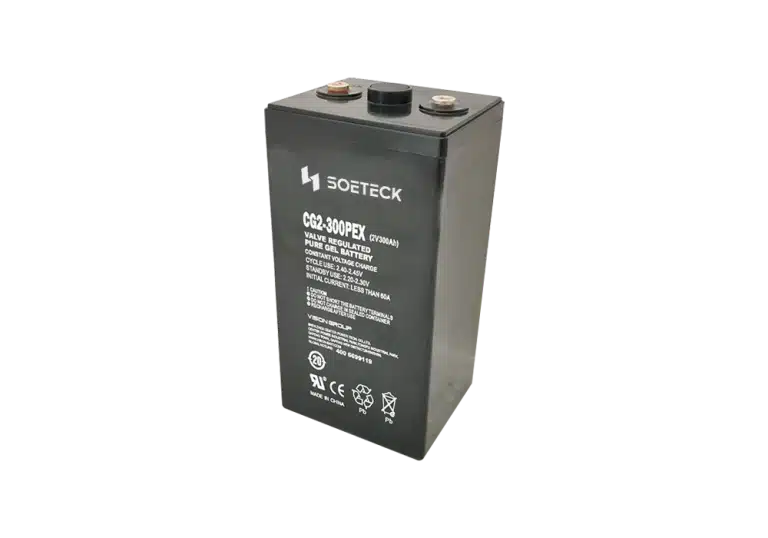

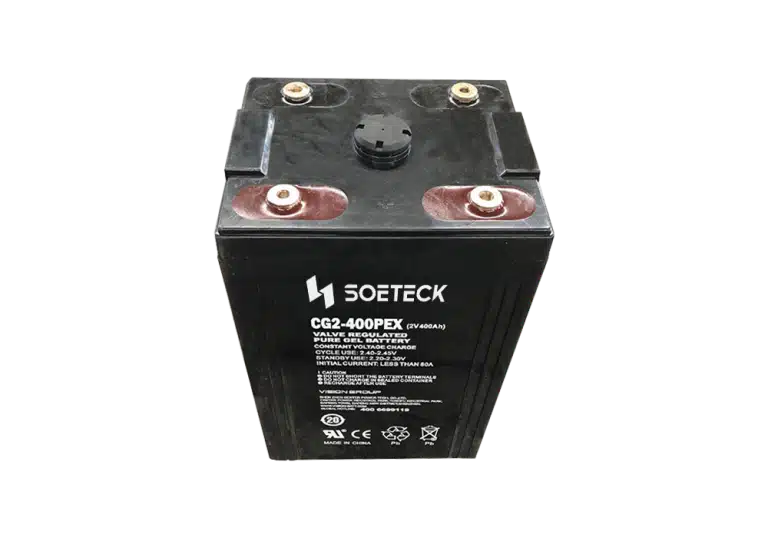

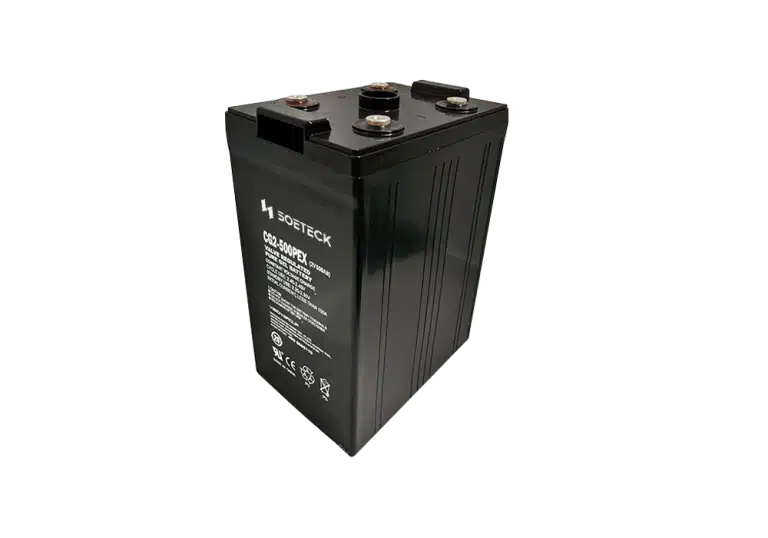

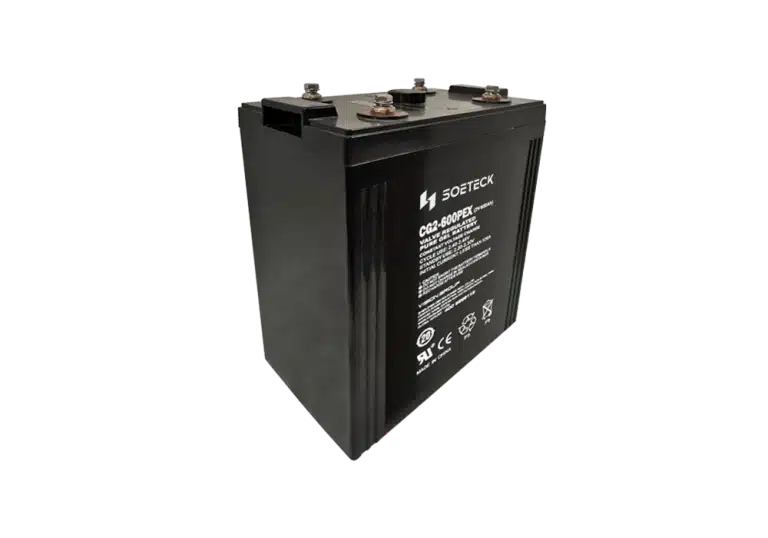

SOETECK SY-VRLA Series 2V GEL Battery

The SOETECK SY-VRLA Series 2V GEL Battery offers exceptional performance and reliability for high-demand applications. Utilizing advanced gelled electrolyte technology, it features maintenance-free operation, low self-discharge rates, and a design life of up to 20 years. Ideal for renewable energy storage, data centers, and motive power applications, this battery ensures high efficiency and longevity under diverse conditions.

No data available


Product Overview

SOETECK SY-VRLA Series 2V GEL Battery is expertly engineered for high-performance applications in demanding environments. Featuring advanced nanometer SiO2 and sulfuric acid gelled electrolyte technology, this battery achieves a gas recombination efficiency of up to 99%, eliminating the need for maintenance and water addition. With a nominal voltage of 2V per cell and an impressive lifespan of up to 20 years, these batteries are optimal for both float and cyclic applications.

The robust construction utilizes a computer-designed lead-calcium-tin alloy grid, which enhances power density and ensures long service life. The 2V GEL Battery is ideal for renewable energy storage, data centers, and various motive power applications such as forklifts and golf carts. Its low self-discharge rate allows it to retain charge in fluctuating temperature environments, ensuring reliable performance.

This series not only provides exceptional thermal stability but also boasts deep discharge recovery capability. Even after extended periods of deep discharge, it can recover to 100% capacity, making it a dependable energy solution offering significant commercial value.

Product Features

High Performance and Longevity

  • Nominal Voltage: 2V per cell, designed for reliable energy across applications.
  • Design Life: Up to 20 years, reducing replacement and maintenance costs.
  • Nominal Capacity: Ranges from 200Ah to 2000Ah, accommodating various energy needs.

Maintenance-Free Design

  • Gas recombination efficiency of up to 99%, eliminating the need for liquid maintenance.
  • Self-discharge rate of 2% capacity loss per month at 20℃, ensuring readiness when needed.
  • Complies with IATA/ICAO Special Provision A67, allowing air transport without restrictions.

Wide Operating Temperature Range

  • Discharge temperatures from -20~60℃ for robust performance in varied climates.
  • Charging temperatures between -10~60℃ to ensure efficacy and safety.
  • Storage conditions from -20~60℃, maintaining stability in both active and idle states.

Robust Safety and Design Features

  • Constructed with standard and flame-retardant ABS materials, enhancing safety.
  • Capable of being mounted in any orientation, providing versatility in installation.
  • Designed to recover from deep discharge situations, enhancing longevity by up to 50% compared to AGM batteries.

Typical Applications

  • Data Centers
  • Telecommunications Equipment
  • Emergency Backup Power
  • Golf Carts
  • Forklifts
  • Renewable Energy Storage

Model Overview

The SOETECK SY-VRLA Series 2V GEL Battery includes a diverse array of models with capacities ranging from 200Ah to 2000Ah, providing effective solutions tailored to meet various energy requirements. This wide capacity range enables users to select the optimal battery size for their specific applications, ensuring both efficiency and cost-effectiveness.

Also, these batteries exhibit varying discharge characteristics, with higher capacity models able to deliver greater instantaneous currents for demanding applications. This makes them suitable for high-performance environments, including industrial and utility applications.

ModelsNominal VoltageRated CapacityLengthWidthHeightTotal HeightAppox.Weight
SY-GJM0202002V200Ah (10hrs/25℃)173mm111mm330mm352mm(364mm after cover installation)14.8 kg
SY-GJM0203002V300Ah (10hrs/25℃)171mm151mm330mm342mm20.0 kg
SY-GJM0204002V400Ah (10hrs/25℃)211mm176mm330mm341mm(367mm after cover installation)27.0 kg
SY-GJM0205002V500Ah (10hrs/25℃)242mm175mm330mm352mm(365mm after cover installation)31.0 kg
SY-GJM0206002V600Ah (10hrs/25℃)410mm175mm330mm352mm(365mm after cover installation)40.0 kg
SY-GJM0208002V800Ah (10hrs/25℃)410mm175mm330mm342mm(365mm after cover installation)53.5 kg
SY-GJM0210002V1000Ah (10hrs/25℃)475mm175mm330mm340mm(365mm after cover installation)63.5 kg
SY-GJM0215002V1500Ah (10hrs/25℃)400mm350mm345mm367mm(382mm after cover installation)105.0 kg
SY-GJM0220002V2000Ah (10hrs/25℃)490mm350mm345mm361mm(382mm after cover installation)120.0 kg

Product Specifications

Data coming soon! Please revisit this page later, or reach out to us for additional details.
