February 25, 2025

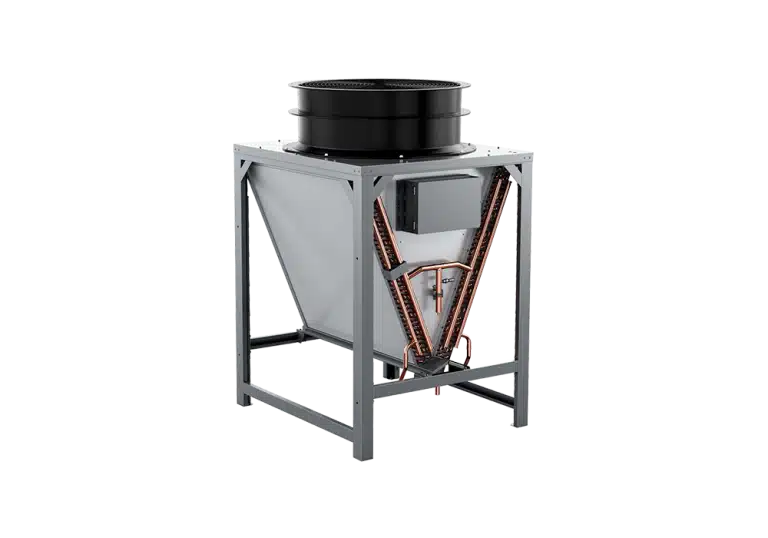

The SOETECK V-Shaped Outdoor Air Cooled Condenser is a high-efficiency heat rejection unit designed for integration into precision cooling systems. It features a V-shaped heat exchanger that maximizes heat dissipation, ensuring reliable performance in high-density cooling applications. Engineered to work with an external pump cabinet system, it utilizes a fluorine pump to optimize refrigerant circulation. This system supports R22, R407C, and R410A refrigerants and operates with intelligent fan control, making it an adaptable and energy-efficient choice for data centers, telecommunication hubs, and industrial cooling infrastructures.
| No data available |
The SOETECK V-Shaped Outdoor Air Cooled Condenser is a high-efficiency heat rejection unit designed for modern data centers, telecommunication facilities, and industrial applications requiring efficient heat rejection. Engineered with a V-shaped heat exchanger, this system maximizes heat dissipation while optimizing airflow, ensuring stable cooling performance in high-density environments.
Unlike integrated condenser units, the SOETECK V-Shaped Outdoor Air Cooled Condenser is designed to be capable to work in combination with an external pump cabinet system, utilizing a fluorine pump to facilitate heat rejection. This configuration allows for enhanced refrigerant circulation over extended distances, making it an ideal choice for cooling infrastructures requiring flexible system design.

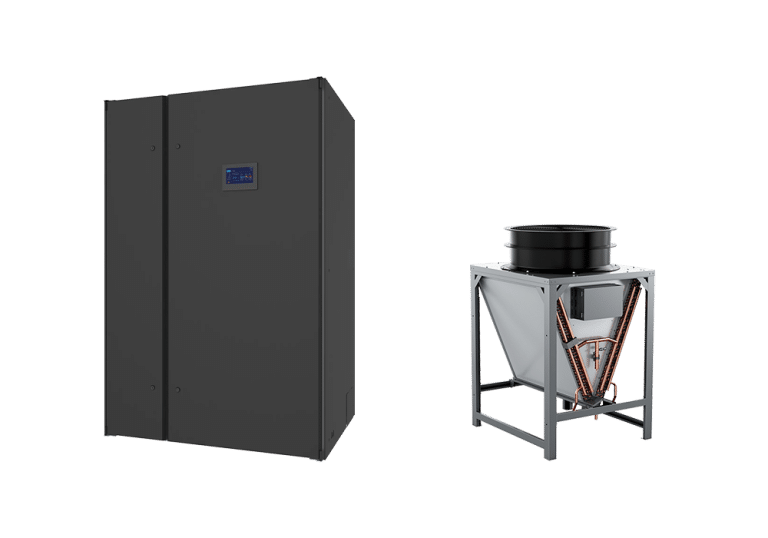

SOETECK Customizable Cabinet for Housing Refrigerant PumpWith a compact footprint and modular design, this condenser offers scalability for both small and large-scale installations. It supports multiple refrigerants, including R22, R407C, and R410A, ensuring broad compatibility with diverse operational requirements. Intelligent fan control further enhances energy efficiency, reducing operational costs while maintaining consistent cooling output. Businesses benefit from a robust, adaptable solution that integrates seamlessly with external fluorine pump systems, delivering reliable performance with long-term value.
The SOETECK V-Shaped Outdoor Air Cooled Condenser series is designed to provide efficient heat rejection for high-density cooling applications. Each model features a V-shaped heat exchanger that enhances airflow management and maximizes heat dissipation, ensuring stable and reliable performance in precision cooling systems. Engineered to work with an external pump cabinet system, these condensers utilize fluorine pump technology to optimize refrigerant circulation over extended distances.
All models maintain a consistent height of 1750mm and depth of 1050mm, while width and weight vary according to specific configurations. The condensers support multiple refrigerant types, including R22, R407C, and R410A, offering flexibility for different cooling system designs. Their modular architecture allows for easy integration into data centers, telecommunication hubs, and industrial cooling infrastructures, providing scalable and energy-efficient cooling solutions tailored to diverse operational requirements.
| Models | Fan Type | Fan Count | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|
| SY-RCM-DJ45 | AC | 1 | 1050mm | 1200mm | 1420mm | 123.0kg |
| SY-RCM-DJ52 | AC | 1 | 1050mm | 1200mm | 1420mm | 140.0kg |
| SY-RCM-DJ58 | AC | 1 | 1050mm | 1200mm | 1420mm | 150.0kg |
| SY-RCM-DJ66 | AC | 1 | 1050mm | 1200mm | 1420mm | 160.0kg |
| SY-RCM-DJ74 | AC | 1 | 1050mm | 1200mm | 1420mm | 175.0kg |
| SY-RCM-DJ83 | AC | 1 | 1050mm | 1200mm | 1420mm | 190.0kg |
| SY-RCM-DJ89 | AC | 1 | 1050mm | 1200mm | 1420mm | 210.0kg |
| SY-RCM-DJ112 | AC | 2 | 1050mm | 1200mm | 1420mm | 235.0kg |
Data coming soon! Please revisit this page later, or reach out to us for additional details.
