February 25, 2025

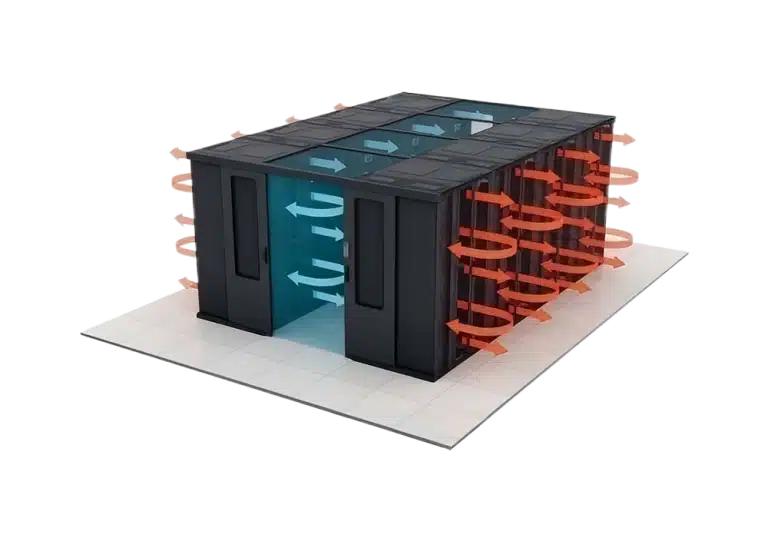

The SOETECK in-Row Chilled-water Cooling System, offering capacities from 28.9kW to 65.8kW, is an energy-efficient cooling solution for modular and containerized data centers. Featuring motorized ball valves, high-performance EC fans, and a compact design with 300mm and 600mm width options, it delivers reliable and precise cooling for high-density IT environments.
| No data available |

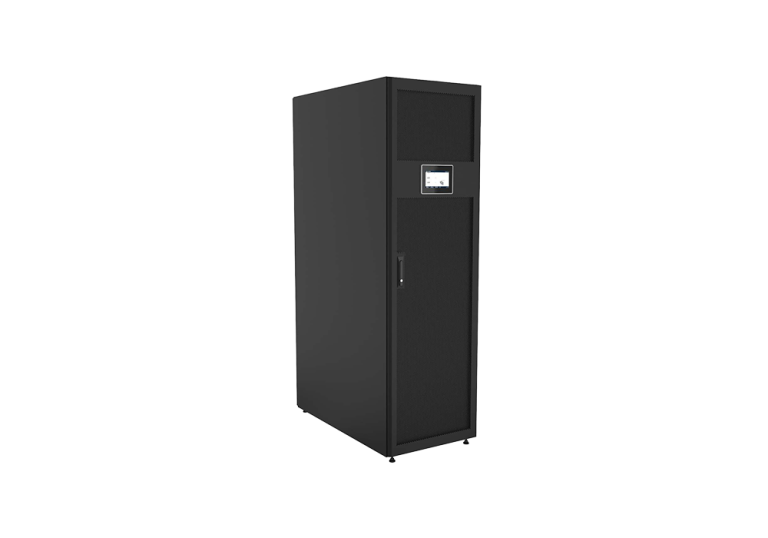

The SOETECK in-Row Chilled-water Cooling System, with a capacity range of 28.9kW to 65.8kW, is an advanced solution tailored for modular and containerized data centers. This compact system utilizes chilled-water cooling technology, delivering precise and reliable thermal management for high-density IT environments.

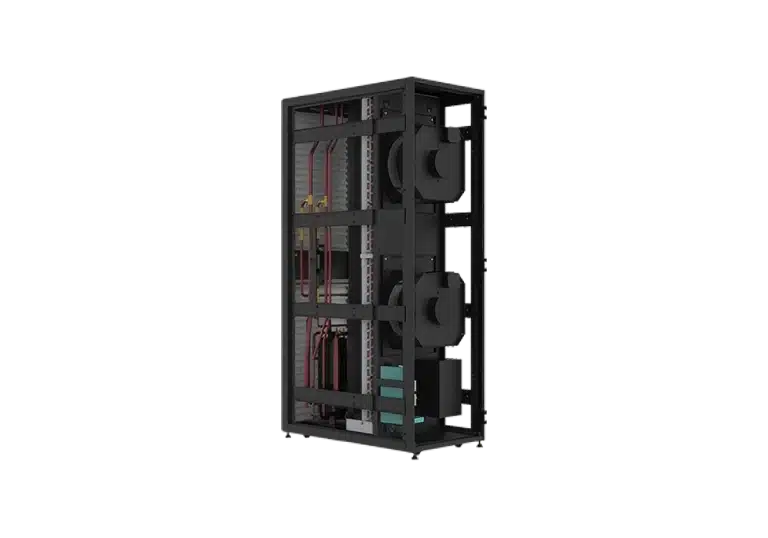

Equipped with dynamically modulated cooling capacity using motorized ball valves, the system maintains consistent temperature control while minimizing water cycling during low load conditions. High-performance EC fans ensure efficient airflow and adapt to varying IT equipment requirements, making this system highly versatile and efficient for critical infrastructure setups.

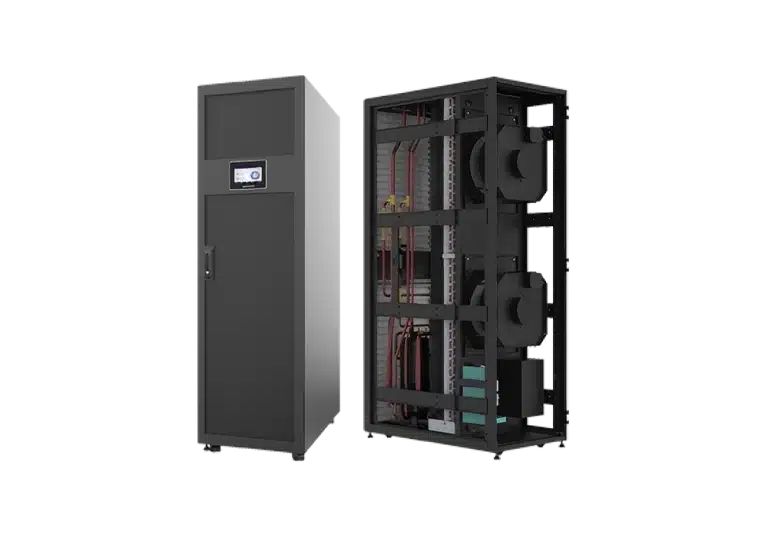

The SOETECK in-Row Chilled-water Cooling System features a slim profile, with 300mm and 600mm width options to optimize space utilization. Additional features such as precision cooling controllers, touch-screen displays, and optional SNMP communication enhance operational efficiency and provide robust support for diverse applications.
The SOETECK in-Row Chilled-water Cooling System offers a range of models with capacities from 28.9kW to 65.8kW, designed for high-performance cooling in modular and containerized data centers. Models such as the S-025RC are optimized for small to medium-sized IT loads, while larger models like the S-065RC cater to high-density server setups. With features like motorized ball valves, high-efficiency EC fans, and advanced monitoring options, these systems ensure reliable and precise cooling tailored to various infrastructure needs.
| Models | Cooling Capacity | Sensible Capacity | Air Volume | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| 025RC-7/12 | 41.0kW | 40.8kW | 4800m³/h | 300mm | 1100mm | 2000mm | 190kg |
| 025RC-10/15 | 36.8kW | 36.8kW | 4800m³/h | 300mm | 1100mm | 2000mm | 190kg |
| 025RC-13/18 | 32.9kW | 32.9kW | 4800m³/h | 300mm | 1100mm | 2000mm | 190kg |
| 045RC-7/12 | 65.4kW | 65.4kW | 9000m³/h | 600mm | 1100mm | 2000mm | 330kg |
| 045RC-10/15 | 59.0kW | 59.0kW | 9000m³/h | 600mm | 1100mm | 2000mm | 330kg |
| 045RC-13/18 | 52.4kW | 52.4kW | 9000m³/h | 600mm | 1100mm | 2000mm | 330kg |
| 065RC-7/12 | 93.2kW | 93.2kW | 11400m³/h | 600mm | 1100mm | 2000mm | 400kg |
| 065RC-10/15 | 84.0kW | 84.0kW | 11400m³/h | 600mm | 1100mm | 2000mm | 400kg |
| 065RC-13/18 | 74.8kW | 74.8kW | 11400m³/h | 600mm | 1100mm | 2000mm | 400kg |
Data coming soon! Please revisit this page later, or reach out to us for additional details.
