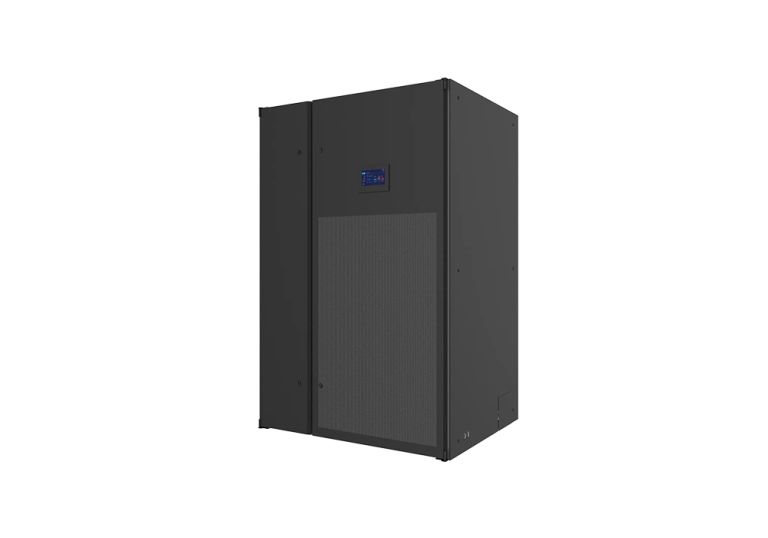

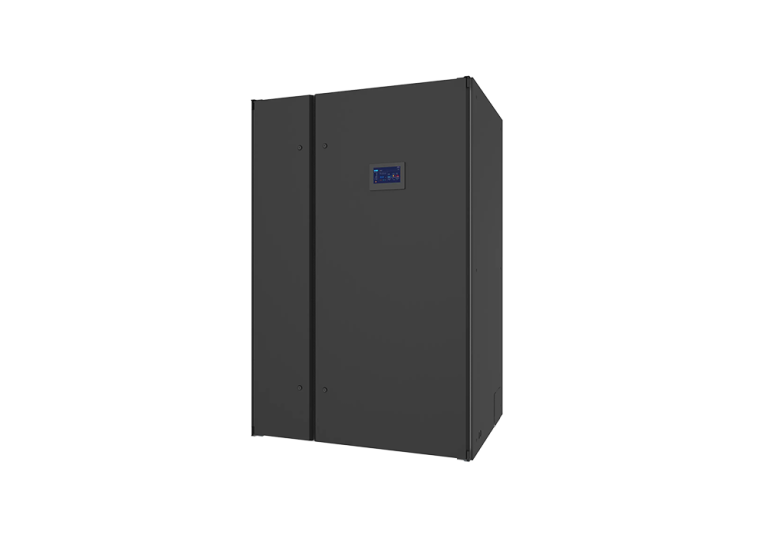

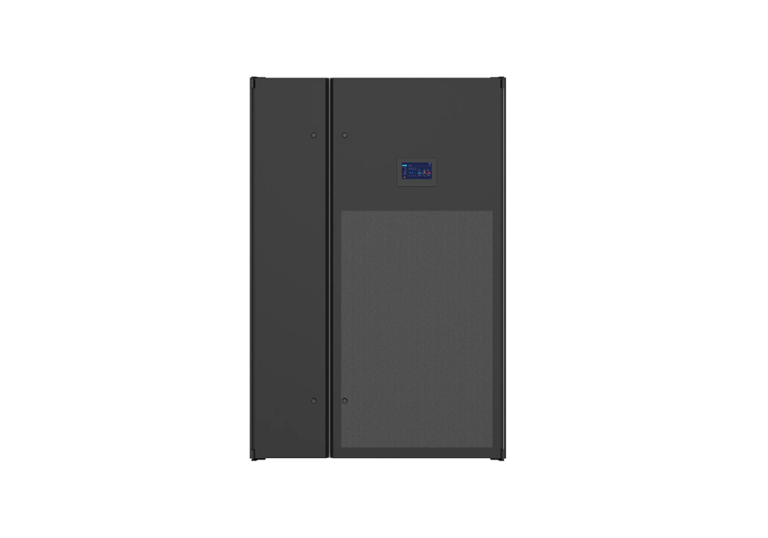

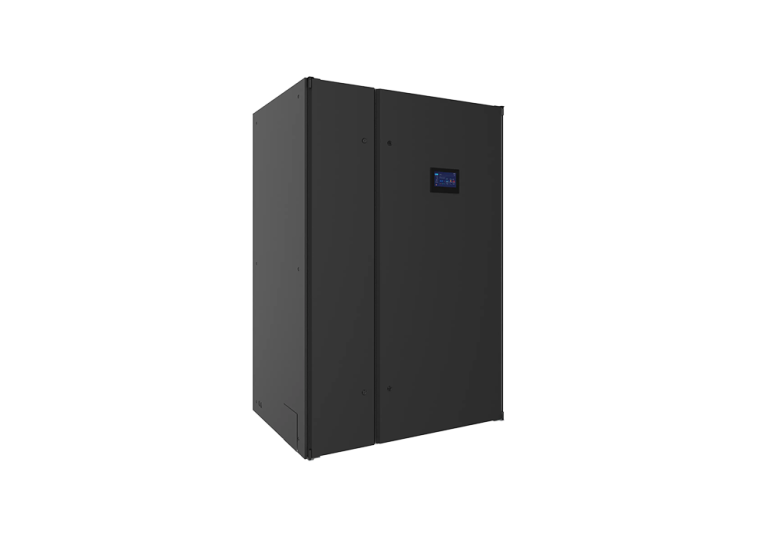

SOETECK DX Air-cooled Room Cooling System, 32.5kW-120kW Capacity, Up/Down Flow

The SOETECK Room Air-cool DX Cooling System, offering a capacity range of 32.5kW to 120kW, is a high-performance cooling solution for data centers and other mission-critical environments. With both upflow and downflow configurations, this system combines advanced DX cooling technology, energy-efficient EC/AC fans, and precise thermal management features to ensure reliable and scalable operation. Compact and flexible, it is ideal for diverse cooling needs.

No data available


Product Overview

The SOETECK Room Air-cool DX Cooling System, with a capacity range of 32.5kW to 120kW, is a versatile and high-efficiency solution for modern data centers, telecommunication hubs, and industrial applications. Available in both upflow and downflow configurations, this system is designed to meet the diverse cooling requirements of mission-critical facilities.

Powered by advanced DX cooling technology and utilizing R410A refrigerant, this system ensures precise thermal management and energy efficiency. Key features include EC/AC fans, an intelligent controller, and an electrode humidifier, making it a comprehensive solution for temperature and humidity control. Its compact modular design supports easy maintenance and installation flexibility.

The SOETECK Room Air-cool DX Cooling System is optimized for reliability and scalability, with optional features like remote monitoring and lightning protection. Its compatibility with a wide range of applications ensures seamless integration into facilities requiring consistent, energy-efficient cooling.

Product Features

Advanced Thermal Management

  • Utilizes DX cooling technology for precise temperature control and consistent performance.
  • Equipped with R410A refrigerant for superior cooling efficiency and environmental sustainability.
  • Offers upflow and downflow configurations to meet specific airflow requirements.

Optimized Energy Efficiency

  • Features EC/AC fans to optimize airflow and minimize power consumption.
  • Incorporates a high-performance heat exchanger for rapid and efficient heat dissipation.
  • Includes advanced filtration systems to maintain clean airflow and protect sensitive equipment.

Comprehensive Humidity Control

  • Equipped with a reliable electrode humidifier to ensure ideal humidity levels in critical environments.
  • Prevents static buildup and improves operational safety for sensitive electronics.
  • Supports consistent humidity control across diverse environmental conditions.

Scalable and Flexible Design

  • Compact modular design allows for easy installation and maintenance.
  • Optional modules include remote monitoring, lightning protection, and advanced control interfaces.
  • Supports single or dual-system configurations for enhanced flexibility.

Reliable Safety Features

  • Includes high-quality thermostatic expansion valves for precise cooling performance.
  • Offers lightning protection and network monitoring for increased system security.
  • Designed for 24/7 operation in demanding environments with minimal downtime.

Typical Applications

  • Data centers
  • Telecommunication hubs
  • Industrial control rooms
  • Edge computing facilities
  • Server rooms

Model Overview

The SOETECK Room Air-cool DX Cooling System offers a range of models to suit diverse cooling needs, with capacities spanning 32.5kW to 120kW. Designed with advanced DX cooling technology and R410A refrigerant, these models deliver superior performance and energy efficiency. Compact models like W-005FA are ideal for smaller setups, while higher-capacity models such as W-025DA cater to large-scale facilities. Each model is equipped with customizable features, including upflow or downflow configurations, EC/AC fans, and electrode humidifiers, ensuring optimal performance for mission-critical environments.

ModelsCooling CapacitySensible CapacityAir VolumeWidthDepthHeightWeight
SY-SA30UD32.5kW29.3kW8325m³/h1126mm990mm1795mm433kg
SY-SA35UD37.7kW34.0kW8620m³/h1126mm990mm1795mm438kg
SY-SA40UD41.8kW38.1kW10500m³/h1326mm990mm1795mm468kg
SY-SA50UD50.0kW45.0kW12400m³/h1326mm990mm1795mm528kg
SY-DA45UD43.5kW39.2kW10500m³/h1326mm990mm1795mm478kg
SY-DA55UD53.1kW47.8kW12400m³/h1326mm990mm1795mm568kg
SY-DA65UD65.1kW58.8kW17240m³/h1826mm990mm1795mm688kg
SY-DA70UD71.1kW64.0kW16650m³/h1826mm990mm1795mm718kg
SY-DA80UD83.6kW75.3kW21000m³/h2226mm990mm1795mm788kg
SY-DA90UD92.1kW83.6kW22600m³/h2226mm990mm1795mm866kg
SY-DA100UD100.9kW91.1kW24800m³/h2226mm990mm1795mm888kg
SY-DA110UD110.9kW97.1kW26200m³/h2426mm990mm1795mm910kg
SY-DA120UD122.9kW105.2kW27100m³/h2426mm990mm1795mm980kg

Product Specifications

Data coming soon! Please revisit this page later, or reach out to us for additional details.
