SOETECK High-frequency Online UPS, 6kVA/10kVA, Rack/Tower-mounted, PF1
Сайт SOETECK ST-RT RT Series, Online High-frequency UPS 6kVA/10kVA offers PF1 power factor, true double conversion technology, and flexible rack/tower-mounted installation. With a wide input voltage range (110-300VAC), 98.5% efficiency in ECO mode, and zero transfer time for AC to Battery Mode, it delivers reliable and efficient power protection for critical applications.
| UPS Structure | Online Double Conversion |
| Input Voltage | 110~300VAC @ 50% load, 176~300VAC @ 100% load |
| Output Voltage | 208/220/230/240VAC |
| Power Factor | ≥ 0.99 @ full load |
| Frequency | 46~54Hz, 56~64Hz |
| Efficiency | 92 - 98.5% |
| Waveform | Pure Sine Wave |
| Noise | Less than 55dB @ 1 Meter |
Обзор продукции
Сайт SOETECK ST-RT RT Series, Online High-frequency UPS 6kVA/10kVA provides exceptional power protection with a PF1 output power factor и true double-conversion technology, ensuring clean, continuous, and reliable power for critical loads. Designed for flexibility, it supports both rack-mounted и tower-mounted installations, making it ideal for diverse environments.
With a wide input voltage range of 110-300VAC, this UPS adapts to unstable power grids while maintaining stable output voltage. Its advanced DSP control technology guarantees high performance, achieving AC Mode efficiency up to 94% и ECO Mode efficiency of 98.5%, optimizing energy savings and operational costs.
Сайт SOETECK ST-RT RT Series also features fast transfer times, including zero transfer for AC to Battery Mode and efficient overload handling for Inverter to Bypass scenarios. Equipped with intelligent battery management and adjustable charging current, it ensures long battery life and quick recovery, making it an ideal solution for servers, network equipment, and sensitive electronics.
Характеристики
True Double Conversion Technology
- Delivers zero transfer time (0ms) для AC Mode to Battery Mode for uninterrupted operation
- Ensures pure sinewave output with minimal harmonic distortion (<5% at full load)
High Efficiency and Performance
- Output power factor of 1.0, providing full-rated power to connected equipment
- Optimized AC Mode efficiency up to 94% for energy savings
- ECO Mode efficiency up to 98.5%, reducing energy costs
Wide Input Voltage Range
- Supports 110-300VAC input voltage, ideal for unstable power grids
- Compatible with 50/60Hz frequency converter mode for global applications
Fast and Reliable Transfer
- Zero transfer time (0ms) for AC to Battery Mode
- Fast Inverter to Bypass switching for overload conditions
Intelligent Battery Management
- Supports up to 20 hot-swappable batteries for extended runtime
- Adjustable charging current up to 4A for faster battery recovery
Flexible Design

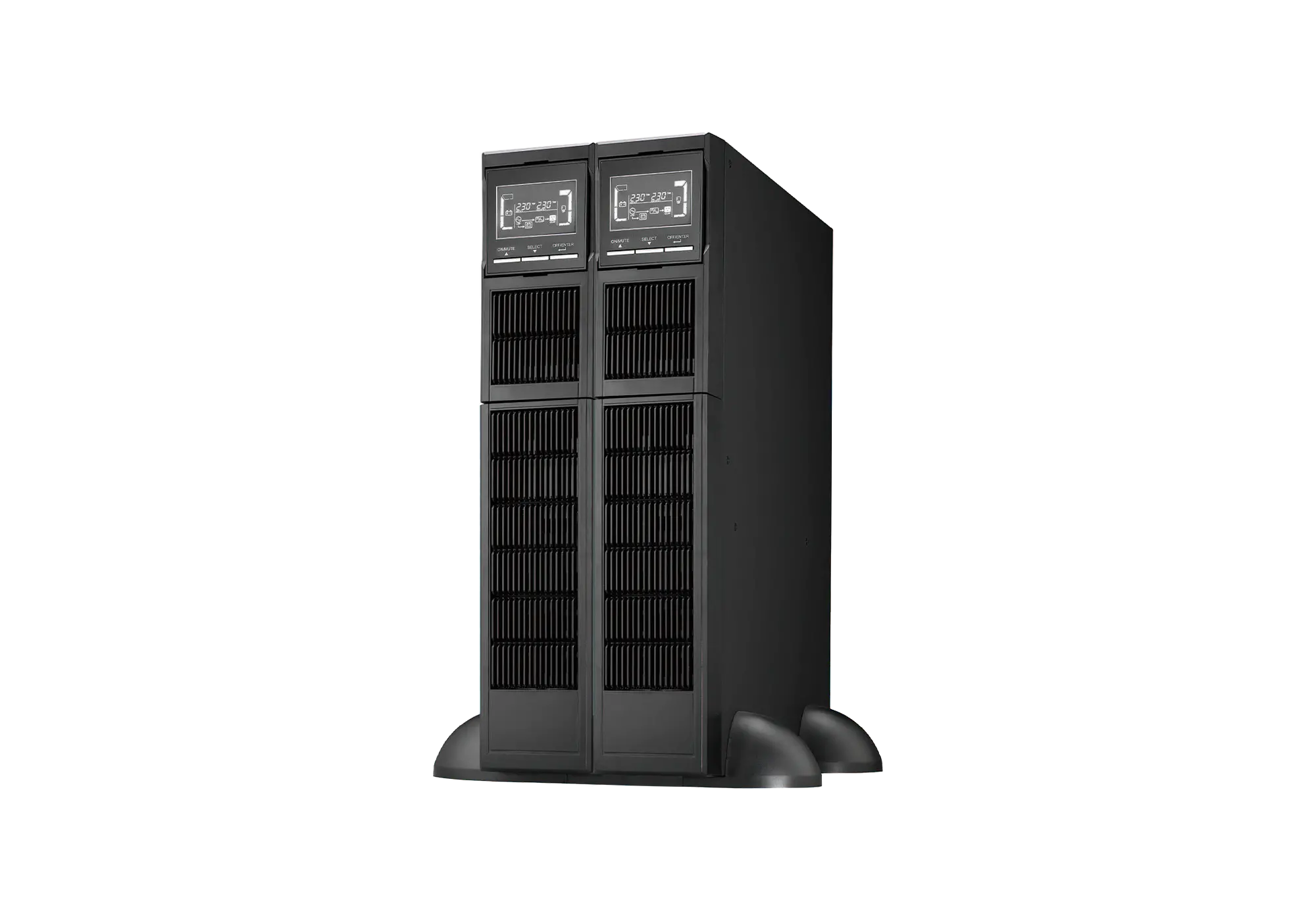

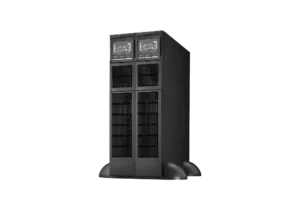

- Supports both rack-mounted и tower-mounted installations
- Compact and space-saving design for IT rooms and data centers
Advanced Monitoring and Safety

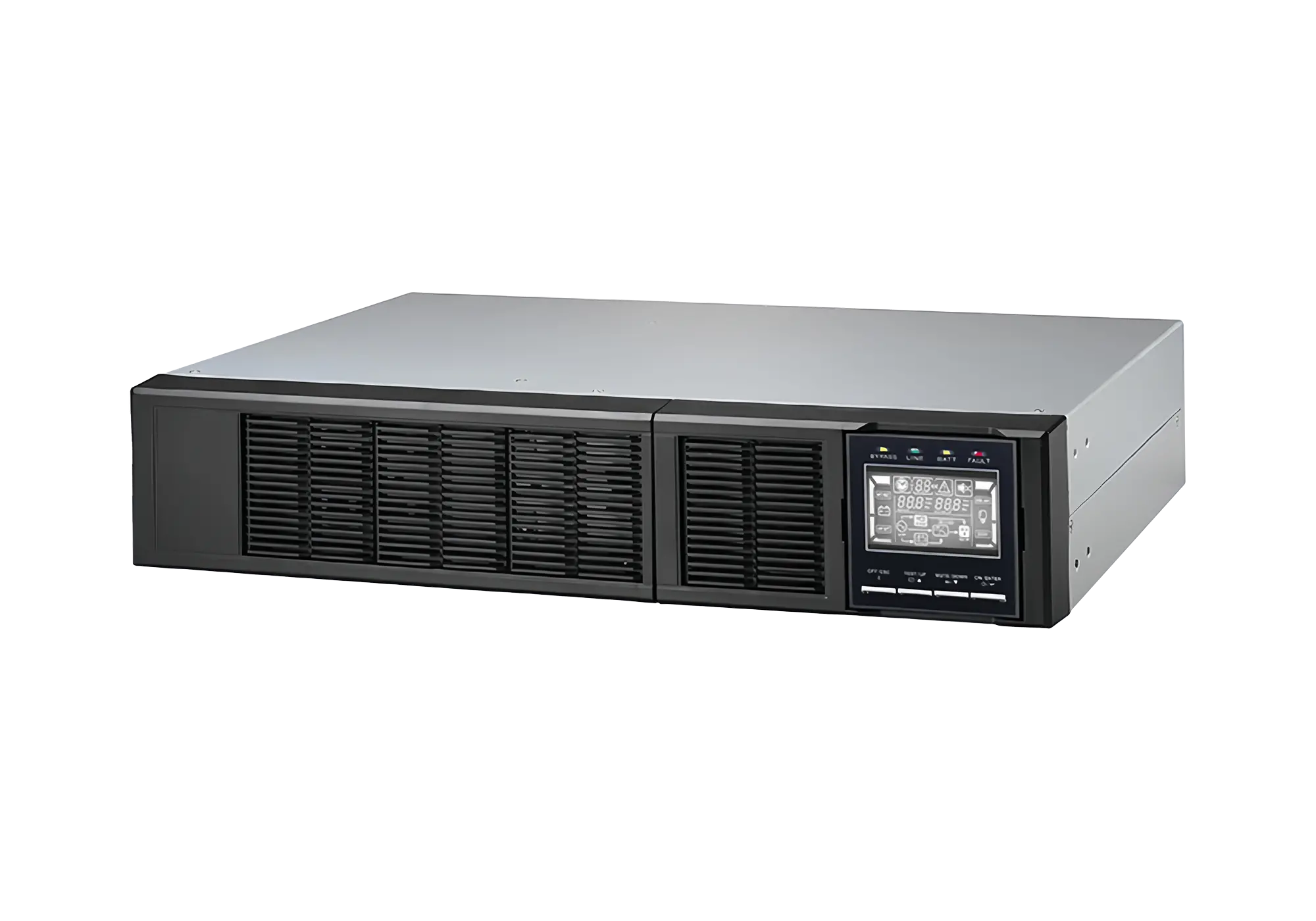

- Оснащен LCD display for real-time UPS status monitoring

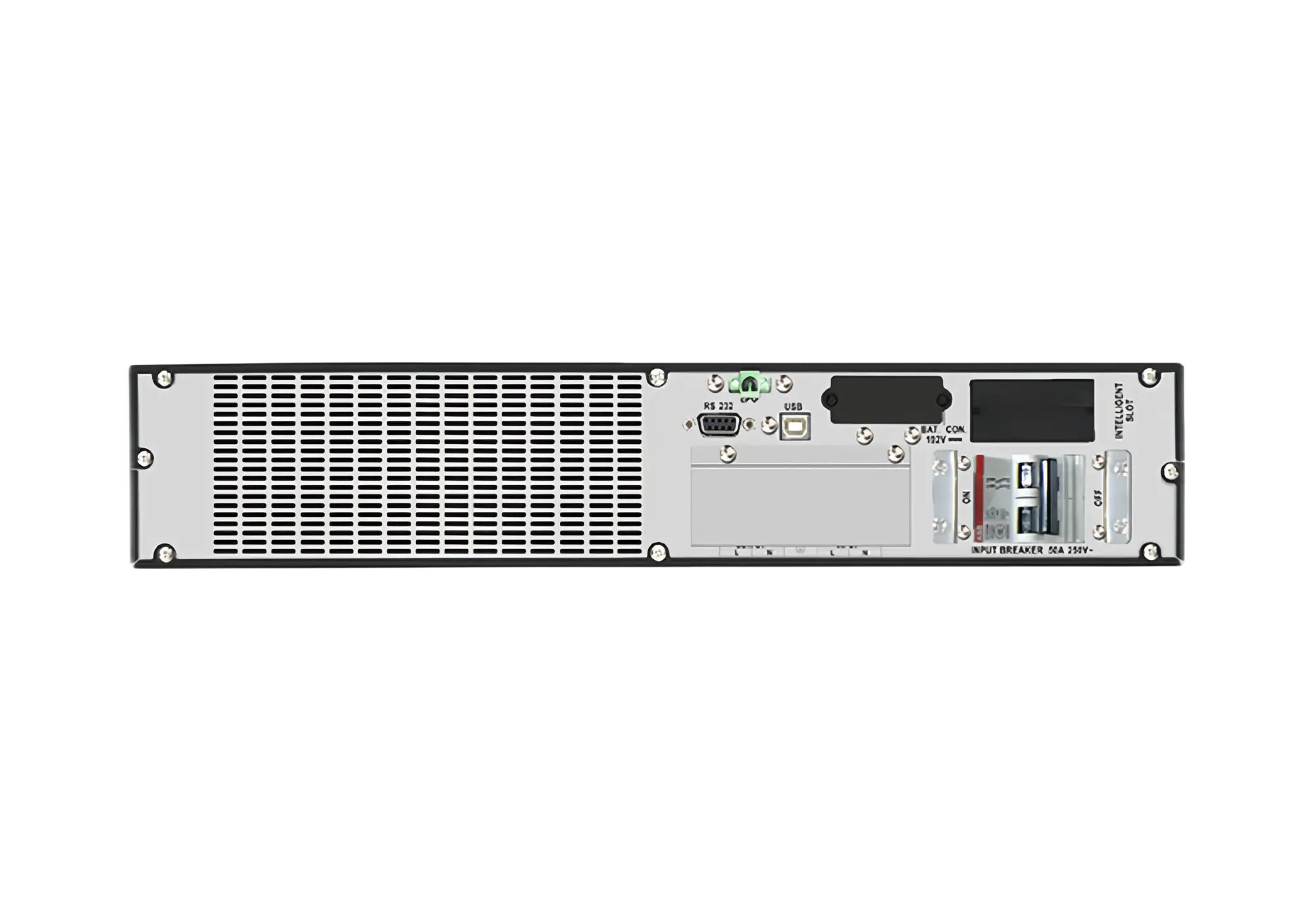

- Supports SNMP/USB/RS-232 communications for remote management
- Programmable Emergency Power Off (EPO) for added safety
Приложения
- Data Centers
- Server Rooms
- Network and Communication Equipment
- Security and Surveillance Systems
- Medical Equipment
- Industrial Automation
Модели
Сайт SOETECK ST-RT RT Series, Online High-frequency UPS 6kVA/10kVA is designed for critical power protection with PF1 efficiency и true double-conversion technology. Featuring нулевое время передачи данных for AC to Battery Mode and fast switching for Inverter to Bypass, it ensures reliable performance under all conditions. Its flexible rack/tower-mounted design, intelligent battery management, and high efficiency (up to 98.5% in ECO mode) make it ideal for demanding IT systems, data centers, and sensitive applications.
| Модели | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYRT6kVA | 6000VA / 6000W | 110~300VAC (± 3%) at 50% load; 176~300VAC (± 3%) at 100% load | Nominal: 208/220/230/240 VAC | 94% (AC mode) ; 98.5% ( ECO mode) ; 92% ( Battery mode ) | 1 phase in, 1 phase out |
| 10000VA/10000W | 10000VA / 10000W | 110~300VAC (± 3%) at 50% load; 176~300VAC (± 3%) at 100% load | Nominal: 208/220/230/240 VAC | 94% (AC mode) ; 98.5% ( ECO mode) ; 92% ( Battery mode ) | 1 phase in, 1 phase out |
