SOETECK High-frequency Online UPS, 10-60kVA, Tower, PF1
"(《世界人权宣言》) SOETECK SY-T Series Online High-frequency UPS, 10-60kVA, Tower, PF1 offers robust and efficient power protection for mission-critical systems. With true double-conversion technology, a power factor of 1.0, and three-phase input/output support, it ensures clean and reliable power delivery. Its wide input voltage range of 110-300V and high efficiency of 95.5% in ECO mode make it an energy-efficient choice for industrial setups, IT networks, and data centers. Optional monitoring via 简单网络管理协议, USB, or RS-232 enhances system control and reliability.
| UPS 结构 | 在线双重转换 |
| 输入电压 | 3x360/380/400/415VAC |
| 输出电压 | 3 x 360/380/400/415VAC |
| 功率因数 | ≥ 0.99 @ 100% load |
| 频率 | 40 ~ 70 Hz |
| 效率 | 98.5% |
| Waveform | Pure Sine Wave |
| 电线 | 3-in, 3-out; 4-in, 1 out; 1-in, 1-out |
产品概览
"(《世界人权宣言》) SOETECK SY-T Series Online High-frequency UPS, 10-60kVA, Tower, PF1 is a high-performance power protection solution designed for mission-critical applications. This series offers a robust and efficient power backup system with true double-conversion technology, ensuring clean and stable power for sensitive equipment. Supporting three-phase input and three-phase output, it delivers exceptional reliability for industrial systems, IT networks, and data centers.
With capacities ranging from 10kVA to 60kVA, the UPS features a wide input voltage range of 110-300V (at 50% load), making it compatible with unstable power grids and generator inputs. The system achieves a power factor of 1.0, providing full-rated power for connected devices and optimizing energy utilization. Its high efficiency of up to 95.5% in ECO mode minimizes energy loss, significantly reducing operational costs and environmental impact.
"(《世界人权宣言》) SOETECK SY-T Series UPS also incorporates intelligent battery management, ensuring efficient charging and extending battery lifespan. Optional remote monitoring through 简单网络管理协议, USB和 RS-232 interfaces provides real-time system visibility, while its modular design allows for seamless scalability to meet growing power demands. This UPS is an ideal solution for businesses seeking reliable and energy-efficient power protection for critical operations.
特点
Exceptional Power Protection
- True double-conversion technology ensures clean and stable power delivery, safeguarding sensitive equipment from power disturbances.
- "(《世界人权宣言》) power factor of 1.0 provides full-rated power, maximizing system performance and energy utilization.
- Supports three-phase input and output (3-in/3-out), ensuring compatibility with industrial-grade systems.
High Energy Efficiency
- Achieves up to 95.5% efficiency in ECO mode, significantly reducing energy loss and operating costs.
- A wide input voltage range of 110-300V (at 50% load) ensures reliable operation in unstable grids and generator-supported environments.
- Low harmonic distortion (<4% THD at 100% load) enhances the stability and performance of connected equipment.
Advanced Battery Management
- Intelligent charging system extends battery lifespan and optimizes backup power availability.
- Modular battery configurations support flexible runtime adjustments to meet diverse application requirements.
- Charging current up to 8-36A ensures rapid battery recovery during critical operations.
Comprehensive Monitoring and Control
- Optional remote monitoring via 简单网络管理协议, USB和 RS-232 enables real-time system management and control.
- Intuitive LCD interface provides detailed insights into load status, input/output voltage, battery health, and operating conditions.
- Audible alarms and fault indicators ensure timely responses to critical system events.
Reliable and Scalable Design
- Robust tower design supports seamless integration into industrial and IT environments.
- Scalable architecture allows for future expansion to meet growing power demands.
- Complies with global safety standards, ensuring reliability and durability in challenging operating conditions.
应用
- Industrial Automation Systems
- Data Centers and IT Networks
- Healthcare Equipment
- Telecommunication Systems
- Banking and Financial Systems
- Critical Manufacturing Processes

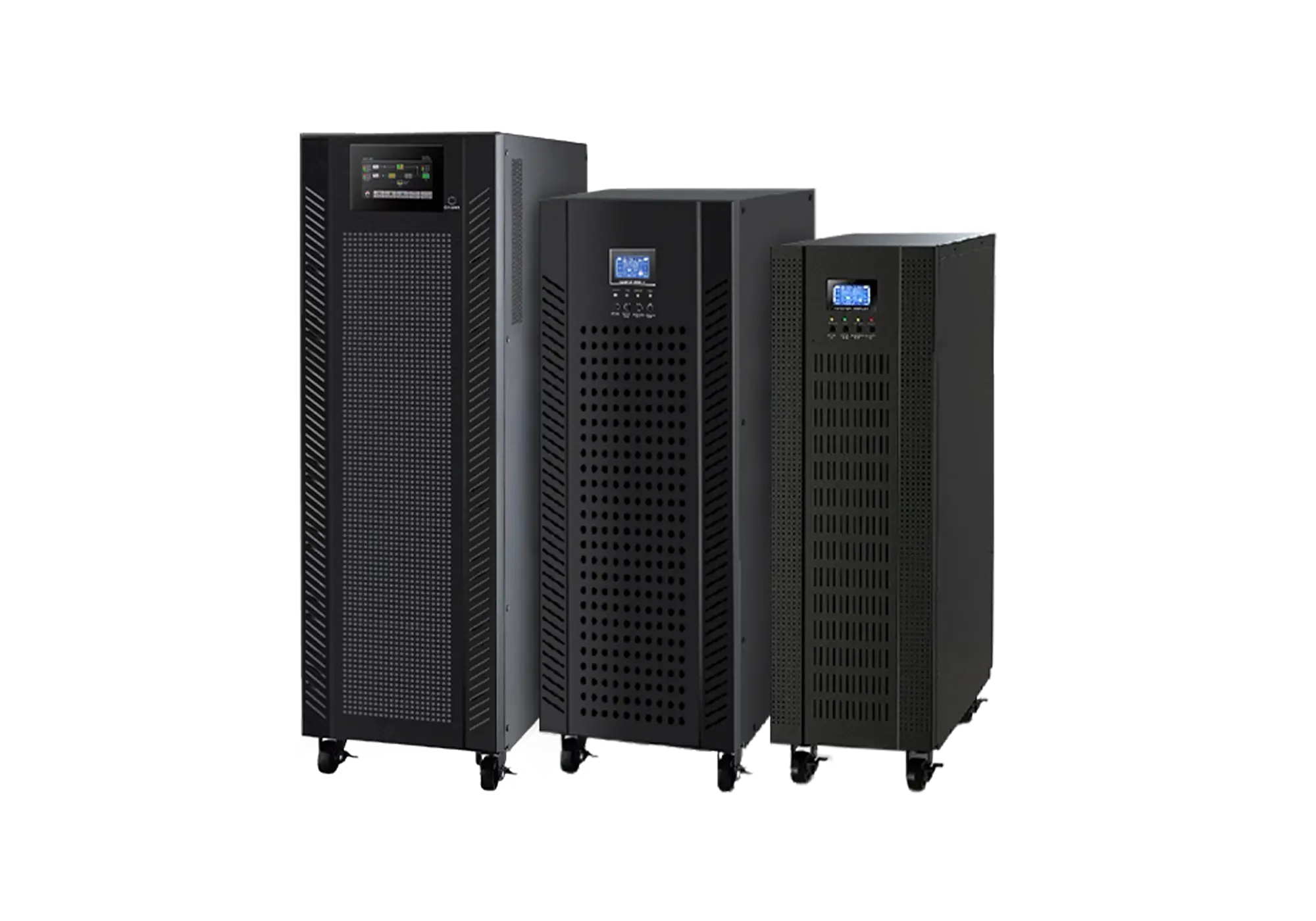

机型
"(《世界人权宣言》) SOETECK SY-T Series Online High-frequency UPS, 10-60kVA, Tower, PF1 offers versatile models to meet various operational requirements. The 10kVA and 20kVA models are ideal for small to medium-sized setups, providing reliable power and compact design. For larger-scale applications, the 30kVA, 40kVA, 50kVA, and 60kVA models deliver higher capacities, extended runtimes, and enhanced performance. With a wide input voltage range of 110-300V, three-phase input/output, and high efficiency of up to 95.5%, these models ensure seamless power protection for demanding environments. Optional remote monitoring through 简单网络管理协议, USB和 RS-232 enhances control and operational efficiency.
| 机型 | 额定功率 | 输入电压范围 | 输出电压范围 | 效率 | 布线 |
|---|---|---|---|---|---|
| SYT10kVA | 10kVA / 10kW | 110-300 VAC at 50% load; 176-276 VAC at 100% load | 3 x 360/380/400/415 VAC (3PH N) | 95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode ) | 3 phase in, 3 phase out; 3 phase in, 1 phase out; 1 phase in, 1 phase out |
| SYT20kVA | 20kVA / 20kW | 110-300 VAC at 50% load; 176-276 VAC at 100% load | 3 x 360/380/400/415 VAC (3PH N) | 95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode ) | 3 phase in, 3 phase out; 3 phase in, 1 phase out; 1 phase in, 1 phase out |
| SYT30kVA | 30kVA / 30kW | 110-300 VAC at 50% load; 176-276 VAC at 100% load | 3 x 360/380/400/415 VAC (3PH N) | 95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode ) | 3 相 N PE |
| SYT40kVA | 40kVA / 40kW | 110-300 VAC at 50% load; 176-276 VAC at 100% load | 3 x 360/380/400/415 VAC (3PH N) | 95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode ) | 3 相 N PE |
| SYT60kVA | 60kVA / 60kW | 110-300 VAC at 50% load; 176-276 VAC at 100% load | 3 x 360/380/400/415 VAC (3PH N) | 95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode ) | 3 相 N PE |
