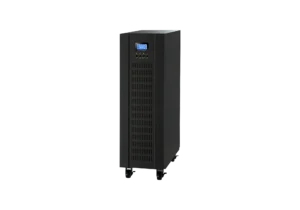

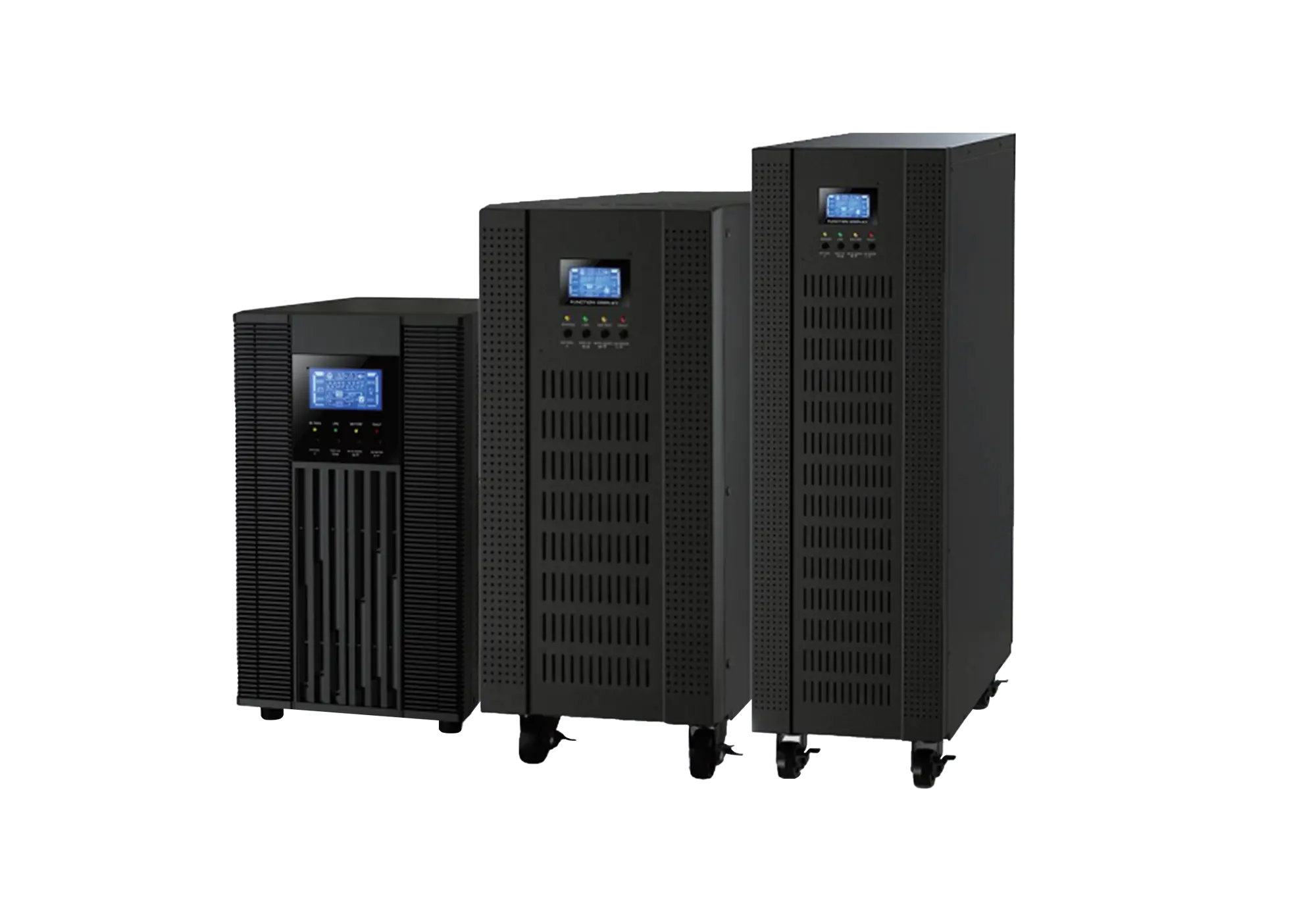

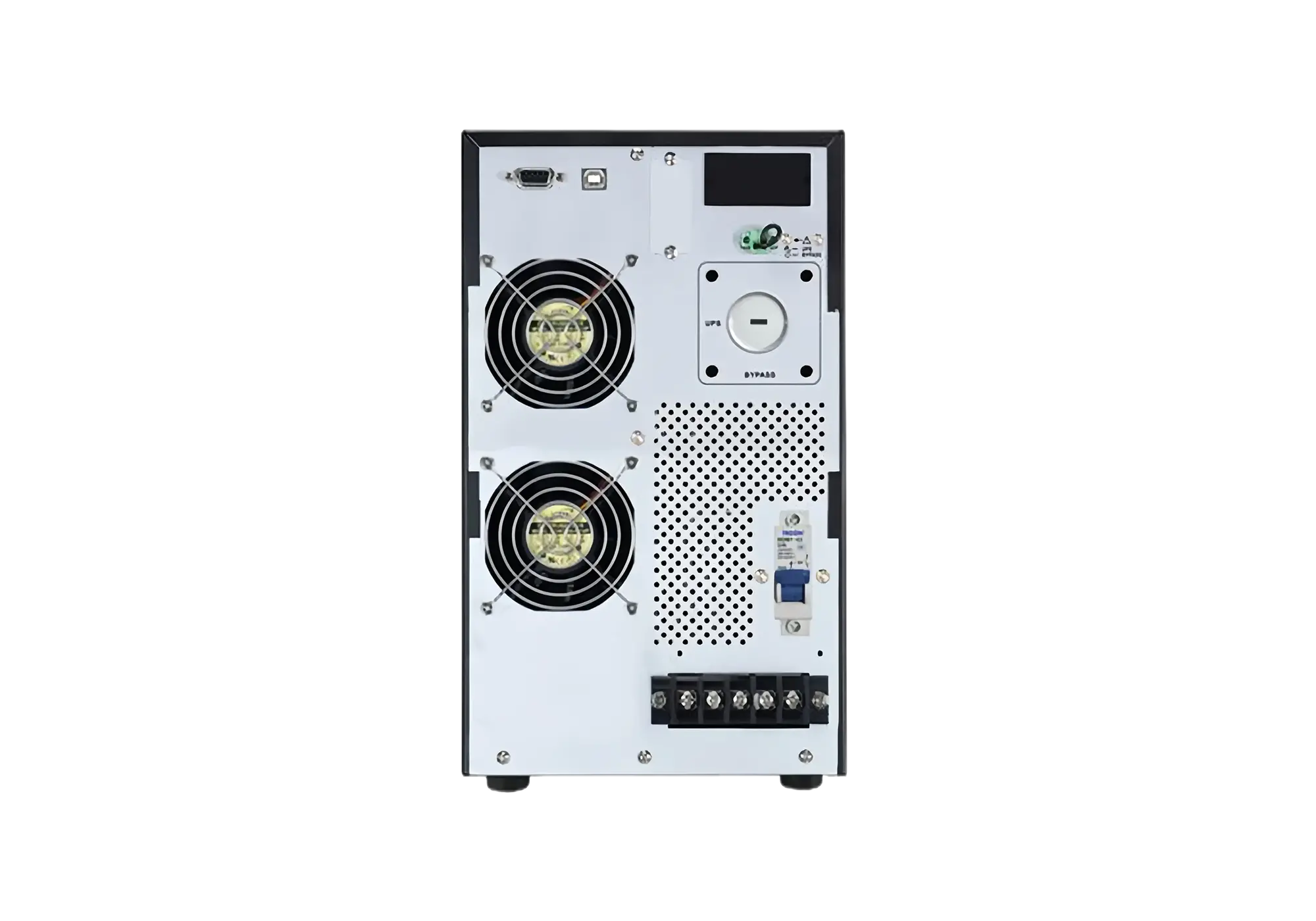

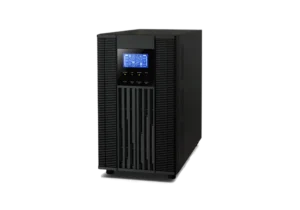

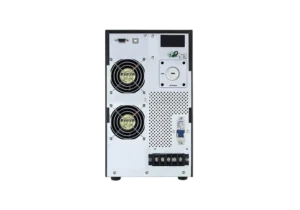

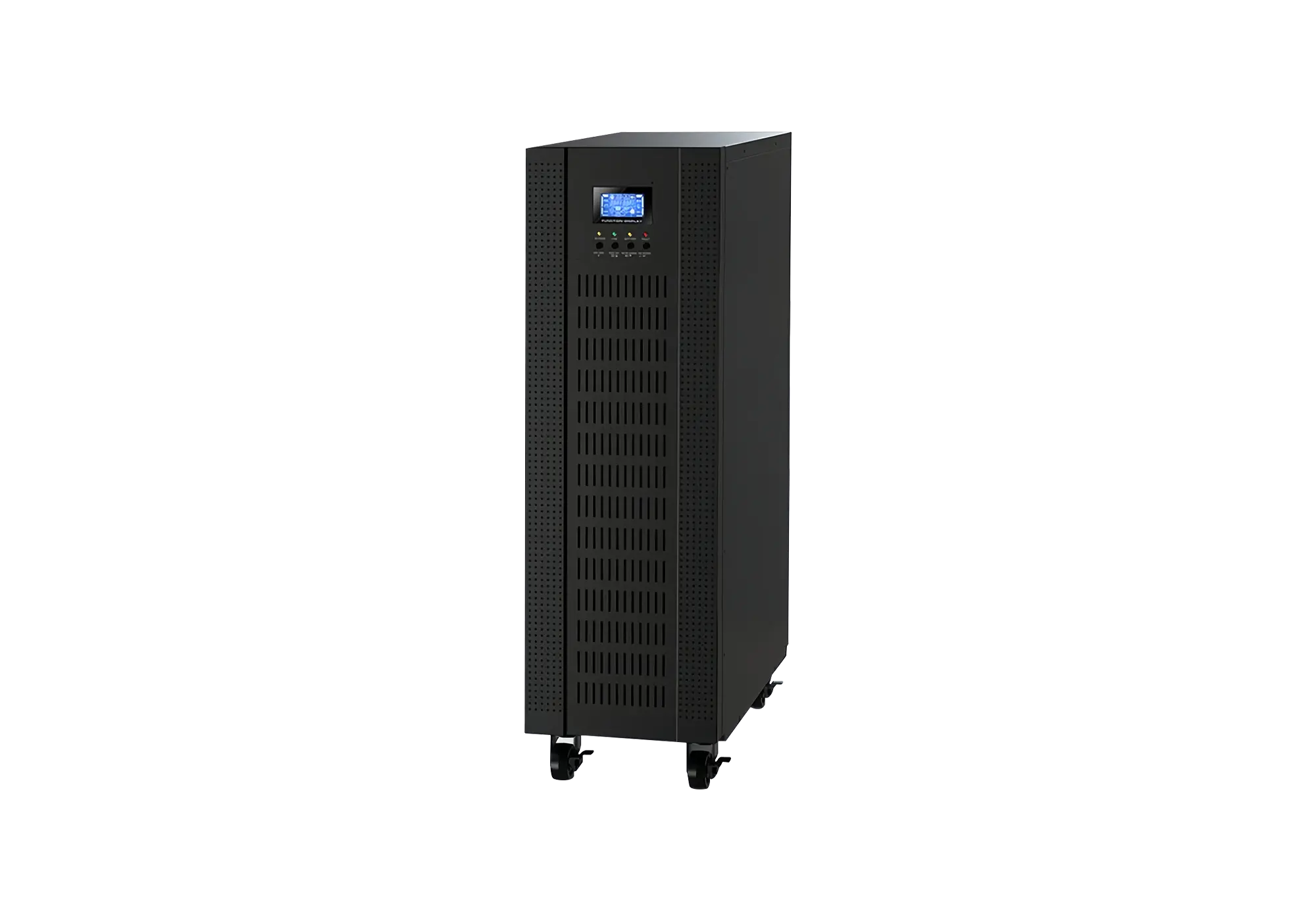

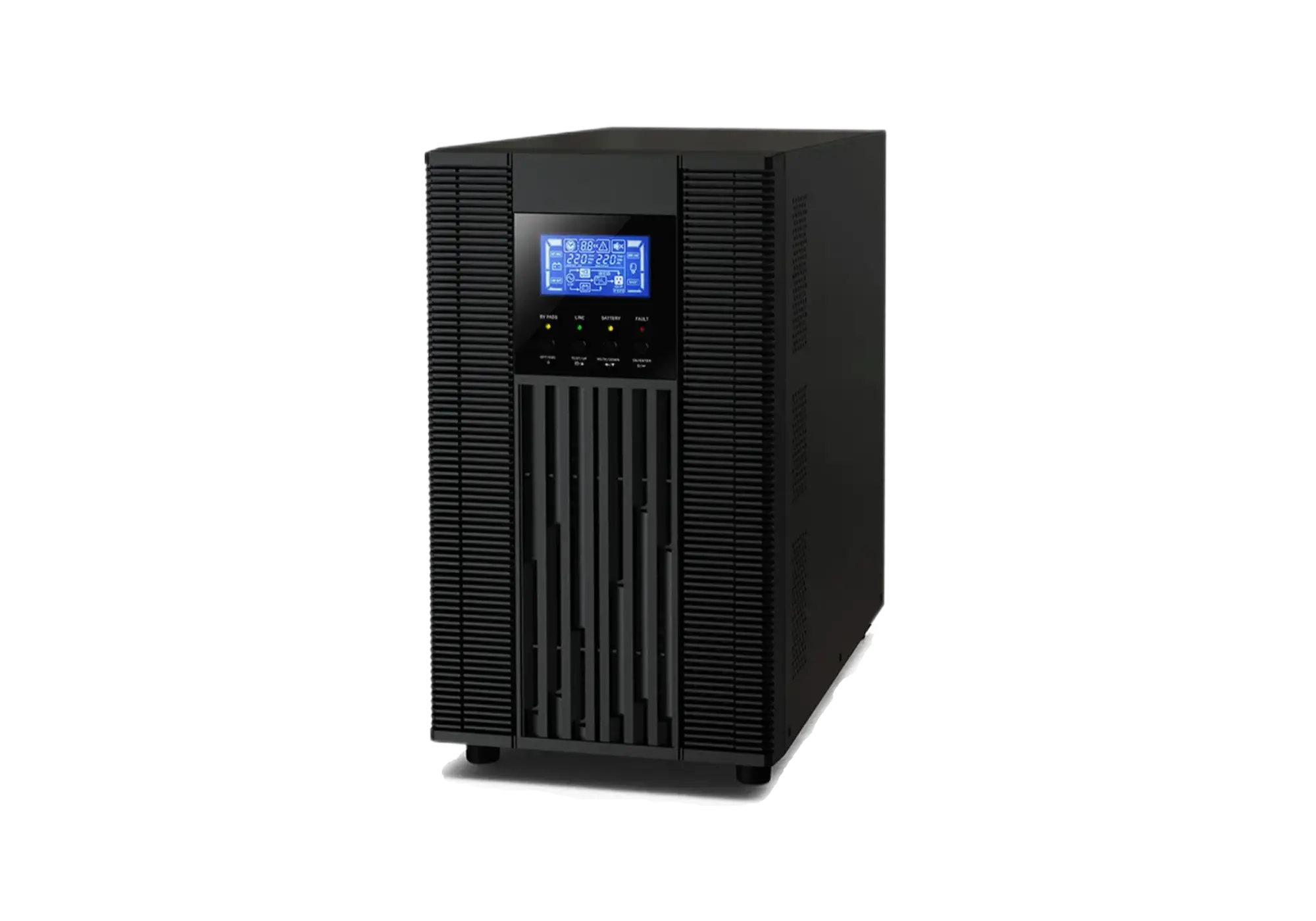

Soeteck High-Frequency Online UPS, 10kVA-30kVA, Tower Mount, PF0.8
"(《世界人权宣言》) SOETECK SY-T Series UPS, Online High-frequency UPS 10kVA-30kVA provides true double-conversion power protection with PF0.8 efficiency. Designed for critical applications, it features a wide input range of 190-520VAC, 50/60Hz frequency conversion, and advanced DSP technology, ensuring reliable, clean, and stable power delivery. The compact tower-mounted design supports both single and three-phase input configurations, making it versatile and dependable for diverse power environments.
| UPS Structure | Online Double Conversion |
| Input Voltage | 190-520VAC (3-phase) @ 50% load, 305-520VAC (3-phase) @ 100% load |
| Output Voltage | 208/220/230/240VAC |
| Power factor | ≥ 0.99 @ 100% load |
| Frequency | 46 ~ 54Hz or 56 ~ 64Hz |
| Efficiency | 93% |
| Waveform | Pure Sine Wave |
| Noise | Less than 60dB @ 1 meter |
产品概览
"(《世界人权宣言》) SOETECK SY-T Series UPS, Online High-frequency UPS 10kVA-30kVA delivers advanced power protection with true double-conversion technology, ensuring uninterrupted and high-quality power delivery for critical systems. Designed with a reliable PF0.8 output and a wide input voltage range of 190-520VAC, this UPS is ideal for applications in unstable power environments, providing clean and consistent energy for sensitive equipment.
Featuring ECO Mode efficiency 和 DSP control technology, the SY-T Series offers enhanced energy savings and operational reliability. The 50/60Hz frequency converter mode enables flexible power management for diverse application scenarios. Its tower-mounted design with easy-to-maintain hot-swappable components ensures long-term reliability and reduced downtime.
The UPS supports both 3-phase and single-phase input compatibility, with optional expandable battery capacity for extended runtime. It is equipped with comprehensive monitoring capabilities, including an LCD display and advanced communication interfaces (RS-232/USB) for seamless integration and real-time diagnostics.
特点
Reliable Double Conversion Technology
- True double-conversion technology for uninterrupted power delivery
- Pure sinewave output with ≤3% THD under linear loads
- Stable output voltage regulation of ±1%
Wide Input Voltage Range
- Compatible with unstable grids: 190-520VAC for three-phase systems
- Wide frequency range: 50/60Hz auto-sensing
High Overload Capacity
- Handles overloads up to 125% for 10 minutes 和 150% for 1 minute
- Automatic bypass activation for overloads exceeding 150%
Energy Efficiency and Performance
- 91% efficiency in AC Mode and Battery Mode
- ECO Mode for enhanced energy savings
Flexible and Scalable Design
- Supports both 3-phase and single-phase input for diverse applications
- Expandable battery capacity for extended runtime
- Hot-swappable batteries reduce downtime during maintenance
高级监测和控制
- Comprehensive LCD display with real-time system data
- Integrated RS-232/USB communication for remote monitoring
- Optional SNMP for network-based management
应用
- Small and Medium Data Centers
- Telecommunications Systems
- Medical Equipment
- Server Rooms
- Industrial Automation
- Retail and Office Environments
机型
"(《世界人权宣言》) SOETECK SY-T Series UPS, Online High-frequency UPS 10kVA-30kVA is built for reliability and performance in demanding power environments. With models ranging from 10kVA to 30kVA, the UPS offers 3-phase input 和 single-phase compatibility for flexible deployment. The wide input range of 190-520VAC, combined with high overload capacity (125% for 10 minutes), ensures stable power delivery. Its compact tower-mounted design and hot-swappable batteries enable efficient maintenance, making it ideal for critical systems that demand uninterrupted power protection.
| 机型 | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYT10kVA | 10kVA / 8kW | 190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load | Nominal: 208/220/230/240 VAC | 88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode ) | 1 phase in, 1 phase out |
| SYT15kVA | 15kVA / 12kW | 190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load | Nominal: 208/220/230/240 VAC | 88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode ) | 1 phase in, 1 phase out |
| SYT20kVA | 20kVA / 16kW | 190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load | Nominal: 208/220/230/240 VAC | 88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode ) | 1 phase in, 1 phase out |
| SYT30kVA | 30kVA / 24kW | 190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load | Nominal: 208/220/230/240 VAC | 88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode ) | 1 phase in, 1 phase out |
