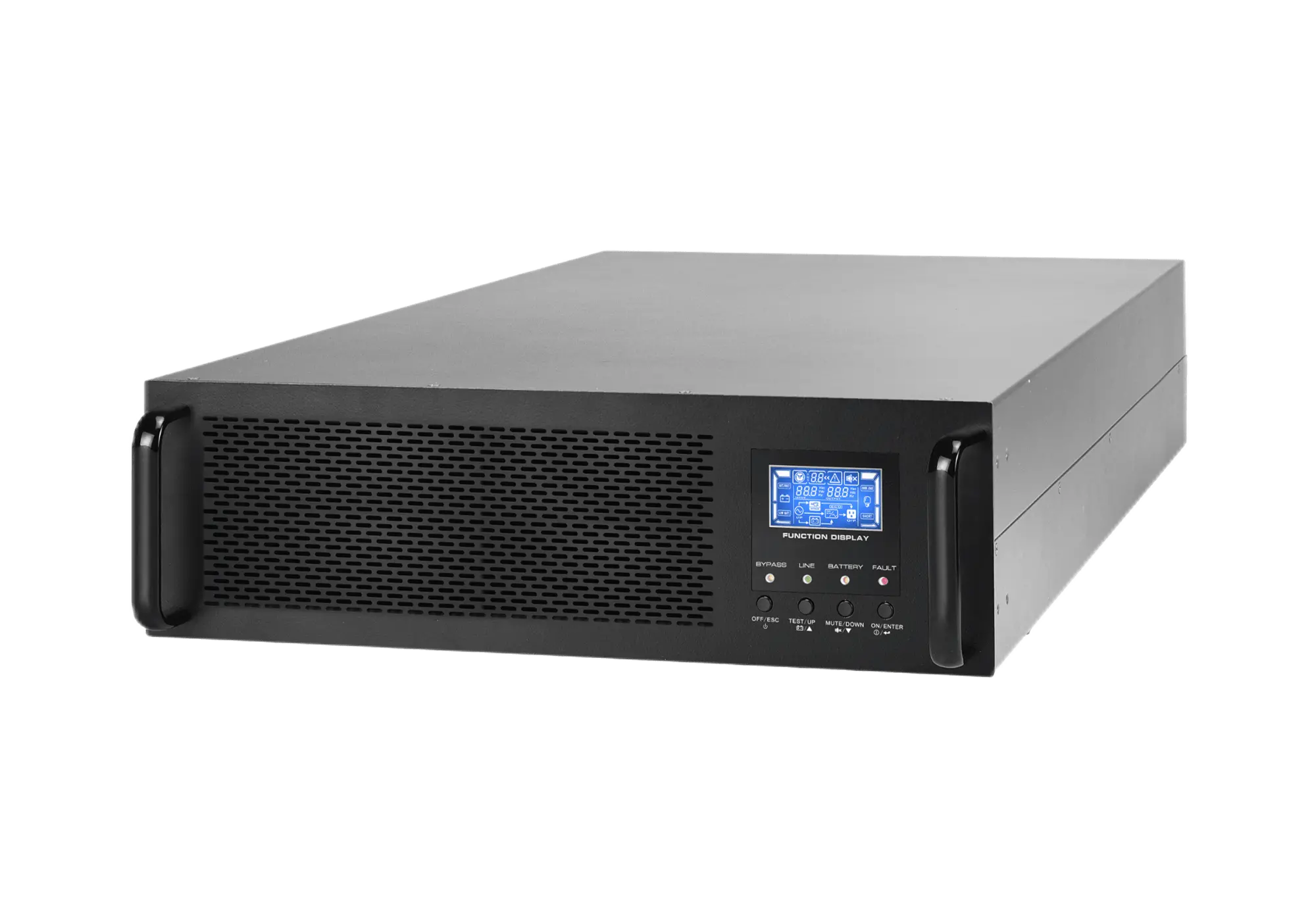

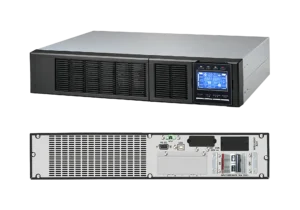

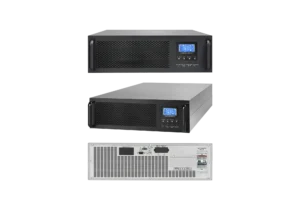

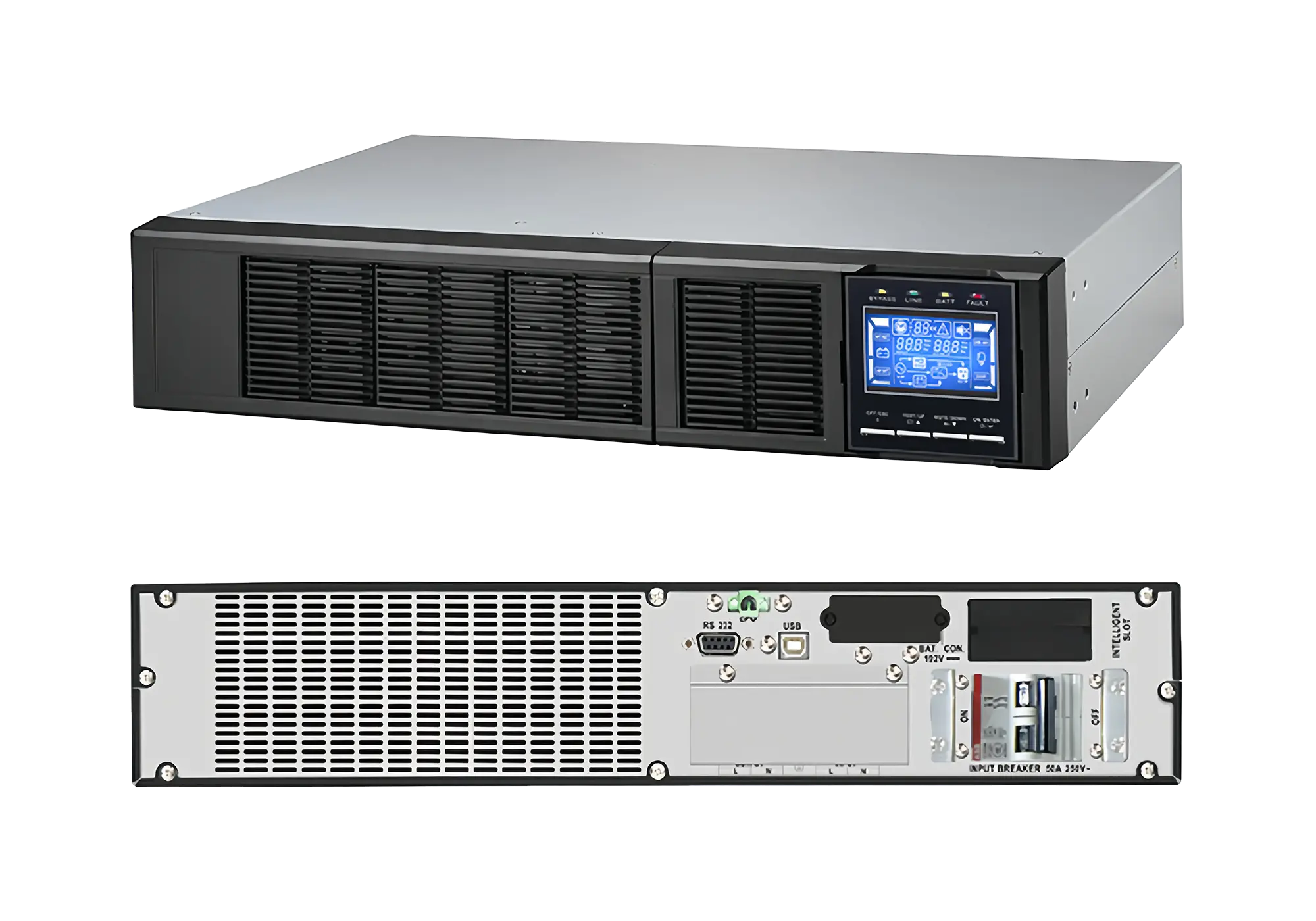

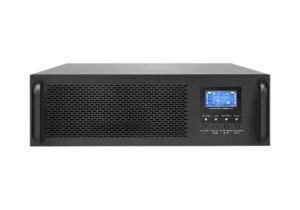

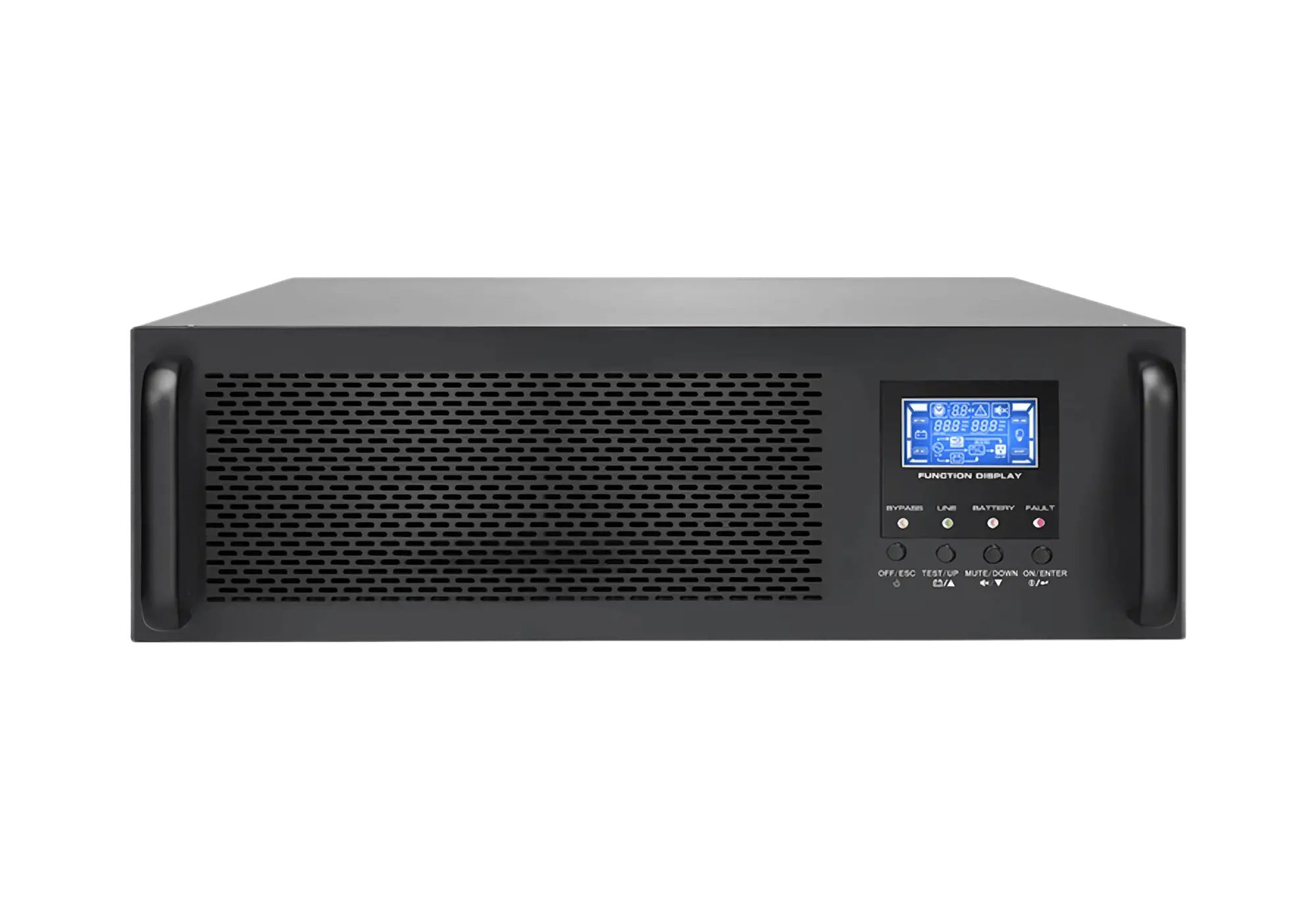

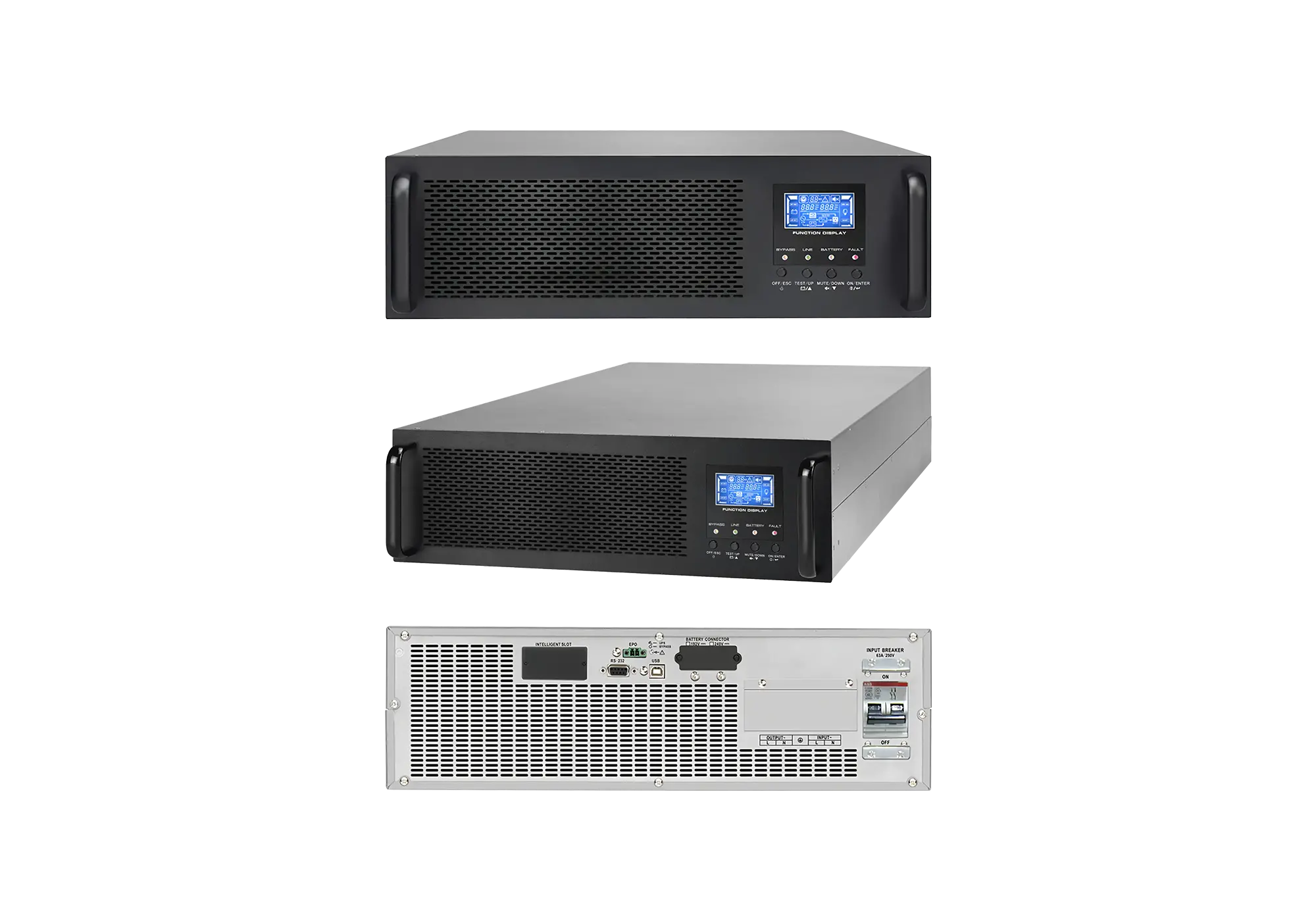

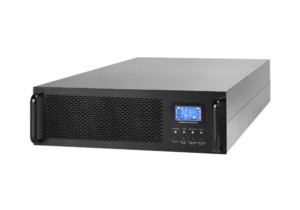

SOETECK High-frequency Online UPS 1kVA-10kVA, Rack & Tower Mounted, PF0.8
O UPS da série SOETECK SY-RT, UPS de alta frequência online 1kVA-10kVA caraterísticas avançadas verdadeira conversão dupla tecnologia e apoios bastidor e torre configurações. Com PF0.8 e até Eficiência do 93%O sistema de alimentação de energia da bateria da Apple, Inc., fornece energia limpa, estável e fiável para aplicações críticas. A gama alargada de tensão de entrada e o carregamento de alta eficiência tornam-no ideal para sistemas de TI e salas de servidores.
| Estrutura da UPS | Dupla conversão online |
| Tensão de entrada | 100/110/115/120/127VAC, 208/220/230/240VAC |
| Tensão de saída | 100/110/115/120/127VAC, 208/220/230/240VAC |
| Fator de potência | ≥ 0,99 @ 100% de carga |
| Frequência | 40Hz ~ 70 Hz |
| Eficiência | 83 - 93% |
| Forma de onda | Onda sinusoidal pura |
| Ruído | Less than 50dBA @ 1 meter |
Visão geral do produto
O UPS da série SOETECK SY-RT, UPS de alta frequência online 1kVA-10kVA delivers reliable and efficient power protection with advanced verdadeira conversão dupla technology. Designed for small to medium-sized applications, it supports both bastidor e torre configurations for flexible installation and space optimization.
With a power factor of 0.8, the system provides more usable power, ensuring compatibility with modern IT and critical systems. Featuring high output efficiency of up to 93%, the UPS minimizes energy loss, reducing operational costs while maintaining stable performance. Its robust design includes an extended input voltage range (110-300V) and low THDi, protecting sensitive equipment from power fluctuations and harmonics.
O SOETECK SY-RT Series UPS offers user-friendly operation with a comprehensive LCD/LED display for real-time status monitoring. Optional battery packs and high-efficiency charging (6A current) ensure extended runtime for critical loads. With true double conversion and ECO mode options, this series guarantees continuous, clean, and reliable power delivery for data centers, server rooms, and communication systems.
Caraterísticas
True Double Conversion Design
- Fornece 100% clean and stable power to critical equipment
- Ensures reliable power protection in unstable grid environments
High Power Density and Efficiency
- Power factor of 0.8 delivers more usable power for connected loads
- Até Eficiência do 93% reduces energy loss and operational costs
Proteção avançada de energia
- True double conversion design ensures continuous and stable power delivery
- Zero transfer time (0ms) from utility mode to battery mode, guaranteeing uninterrupted operation during power outages
- Fast 4ms transfer time from inverter mode to bypass mode, ensuring stable and reliable power switching
- Provides full protection for critical loads, reducing the risk of downtime and equipment damage
Opções de instalação flexíveis
- Suporta ambos rack e tower configurations for versatile deployment
- Compact design minimizes space usage, ideal for server rooms and IT infrastructure
Extended Battery Runtime
- Opcional external battery packs for extended backup power
- High-efficiency charging with up to 6A current for long-lasting performance
Wide Input Voltage Range
- Supports input voltage range from 110V a 300V, ensuring stable operation in varying conditions
Monitorização e controlo inteligentes
- Comprehensive LCD/LED display provides real-time system status
- Apoios RS232, USB e facultativo SNMP for remote monitoring
Aplicações
- Salas de servidores
- Small Data Centers
- Communication Systems
- Commercial Offices
- Retail POS Systems
- Sistemas de segurança e vigilância
Modelos
O UPS da série SOETECK SY-RT, UPS de alta frequência online 1kVA-10kVA offers scalable power protection with a power factor of 0.8 and flexible bastidor e torre installation options. With true double conversion technology and an extended input voltage range (110-300V), it ensures clean and reliable power delivery. High-efficiency charging (6A current) and optional battery packs provide extended backup time, making this UPS ideal for IT systems, server rooms, and communication infrastructure.
| Modelos | Potência nominal | Gama de tensão de entrada | Gama de tensão de saída | Eficiência | Cablagem |
|---|---|---|---|---|---|
| SYRT1kVA | 1000VA / 800W | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | 88% - 93% (modo AC) ; 83% - 91% (modo bateria) | 1 fase PE |
| SYRT2kVA | 2000VA / 1600W | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | 88% - 93% (modo AC) ; 83% - 91% (modo bateria) | 1 fase PE |
| SYRT3kVA | 3000VA / 2400W | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | 88% - 93% (modo AC) ; 83% - 91% (modo bateria) | 1 fase PE |
| SYRT6kVA | 6000VA / 4800W | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | 88% - 93% (modo AC) ; 83% - 91% (modo bateria) | 1 fase PE |
| SYRT10kVA | 10000VA / 8000W | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | Nominal: 100/110/115/120/127VAC ou 200/208/220/230/240VAC | 88% - 93% (modo AC) ; 83% - 91% (modo bateria) | 1 fase PE |
