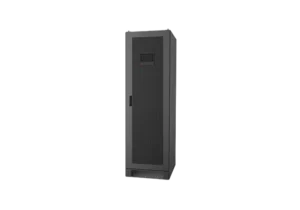

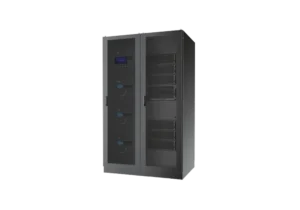

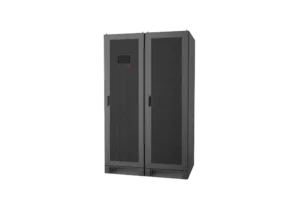

SOETECK Modular Online UPS 400kVA-1600kVA, 100kVA Power Module
The SOETECK SY-M Series UPS, Online Cabinet Modular UPS 400kVA-1600kVA is a scalable, high-efficiency power solution featuring a robust 3-in 3-out design and modular 100kVA power modules. With 97% efficiency and a power factor of 1.0, it ensures reliable and stable power delivery. Hot-swappable modules, advanced IGBT rectification, and a user-friendly LCD touchscreen make it the ideal choice for large data centers, telecommunications, and critical industrial applications.
| UPS Structure | Online Double Conversion |
| Input Voltage | 138~485VAC or 138~323VAC |
| Input PF | >0.99 |
| Output Voltage | 380/400/415VAC |
| Output PF | >0.99 |
| Frequency | 40 - 70Hz |
| Efficiency | 97% |
| Wire | 3-phase N wire PE |
Product Overview
The SOETECK SY-M Series UPS, Online Cabinet Modular UPS 400kVA-1600kVA is a high-performance, scalable power solution with a robust 3-in 3-out (three-phase input/output) design, ensuring stable and reliable power delivery for mission-critical systems. Featuring modular 100kVA power modules, the system allows seamless capacity expansion from 400kVA to 1600kVA, meeting the demands of large-scale data centers, telecommunications, and industrial facilities.
Built with advanced 3-level inverter technology and IGBT rectification, the system achieves a power factor of 1.0 and delivers up to 97% efficiency under normal operation. Its ECO mode further reduces energy consumption, reaching 99% efficiency during stable grid conditions. The SOETECK SY-M Series UPS features intelligent battery management and dynamic overload protection to ensure continuous, stable, and energy-efficient power delivery.
Designed for operational simplicity and flexibility, the system includes a large LCD touchscreen interface for real-time monitoring and intelligent diagnostics. The modular design with hot-swappable power modules enables uninterrupted maintenance, ensuring maximum uptime and reliability. The SOETECK SY-M Series UPS is the ideal solution for scalable, efficient, and reliable power protection.
Features
3-in 3-out Robust Design
- Three-phase input and output for stable and reliable power delivery
- Ideal for large-scale mission-critical systems
High Efficiency and Energy Savings
- Up to 97% efficiency under normal operation
- ECO mode achieves 99% efficiency for stable grid power
- Advanced IGBT rectification reduces harmonics (THDi <3%)
Modular and Scalable Design

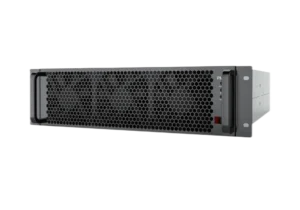

- Expandable 100kVA power modules for seamless scalability
- Capacity range from 400kVA to 1600kVA
- Hot-swappable modules enable uninterrupted maintenance
Advanced Power Management
- Power factor of 1.0 ensures optimal energy utilization
- Dynamic battery management for extended battery life
- Overload capacity: 110% for 60 minutes, 150% for 1 minute
User-Friendly Interface
- Large LCD touchscreen for real-time monitoring and diagnostics
- Supports RS232, RS485, MODBUS, and SNMP for flexible communication
- Intelligent fault diagnostics and historical log management
Applications
- Large Data Centers
- Telecommunications Networks
- Government and Taxation Systems
- Financial Institutions
- Transportation Infrastructure
- Energy and Utility Sectors
- Healthcare Facilities
- Educational Institutions
Models
The SOETECK SY-M Series UPS, Online Cabinet Modular UPS 400kVA-1600kVA features flexible, modular 100kVA power modules designed to meet diverse power demands. With advanced 3-in 3-out (three-phase input/output) architecture, models such as SY-M400, SY-M800, SY-M1200, and SY-M1600 provide scalable, high-efficiency power solutions. Achieving up to 97% efficiency, low THDi, and dynamic overload protection, these models ensure stable, reliable, and energy-efficient power delivery for mission-critical applications.
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM400 | 400kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM500 | 500kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM600 | 600kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM800 | 800kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1000 | 1000kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1100 | 1100kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1200 | 1200kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1300 | 1300kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1400 | 1400kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1500 | 1500kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
| SYM1600 | 1600kVA | 138~485VAC (138~323VAC linear derating, 324~485VAC no derating) | 380/400/415VAC ( Line Voltage ) | ≥ 96% | 3 phase N PE |
