Liquid Cooling Solutions
Soeteck Liquid Cooling Solutions are next-gen cooling technology designed for high-performance scenarios like dense data centers, HPC clusters, and AI computing facilities. Integrating cold plate cooling, immersion cooling, and spray cooling technologies, the solution delivers direct, efficient heat dissipation for CPUs and GPUs. It includes a full lineup of reliable core components: versatile coolant distribution units (CDUs) (room-level, in-row, rack-level, hybrid, and liquid-to-air types) to fit diverse deployment needs, precision-engineered manifolds for stable CDU-cold plate connections, and leak-free quick connect couplings for easy maintenance. Supported by modular secondary loops, it ensures superior cooling performance, enables higher equipment density, and optimizes energy efficiency—ideal for modern high-computing thermal management demands.

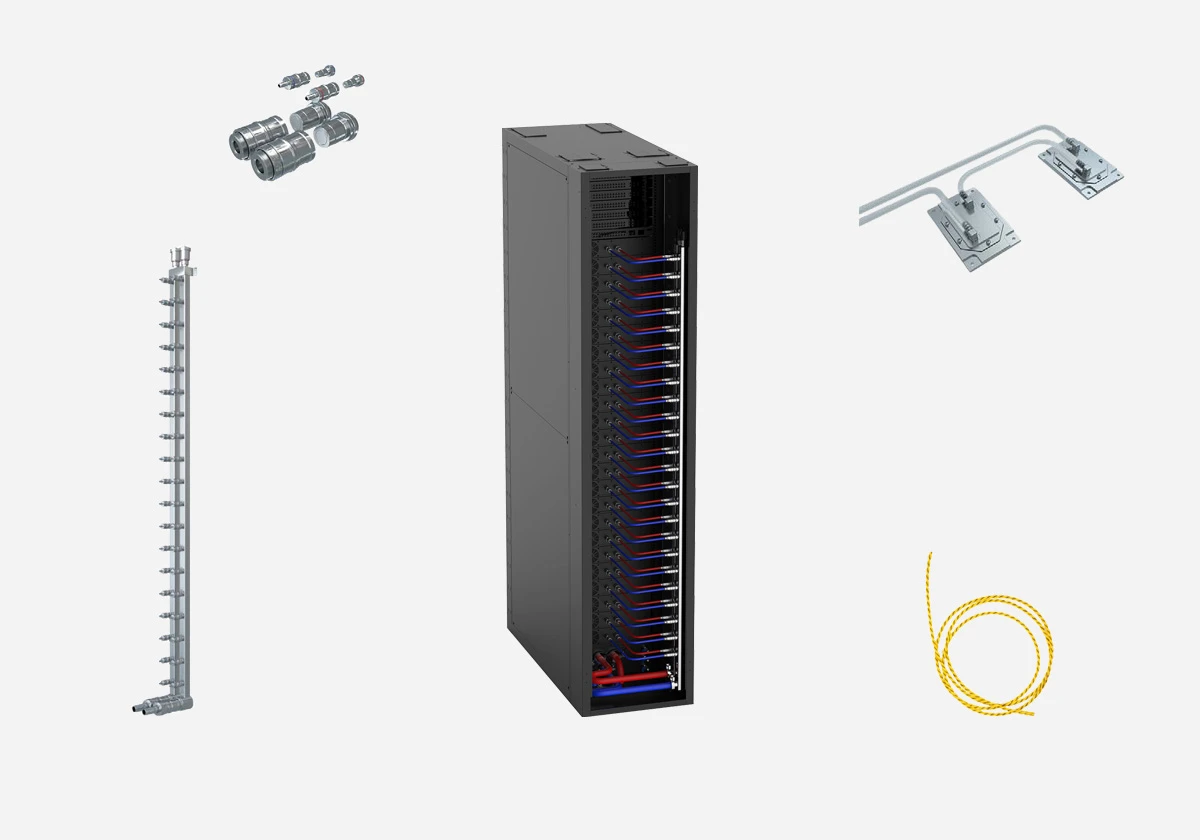

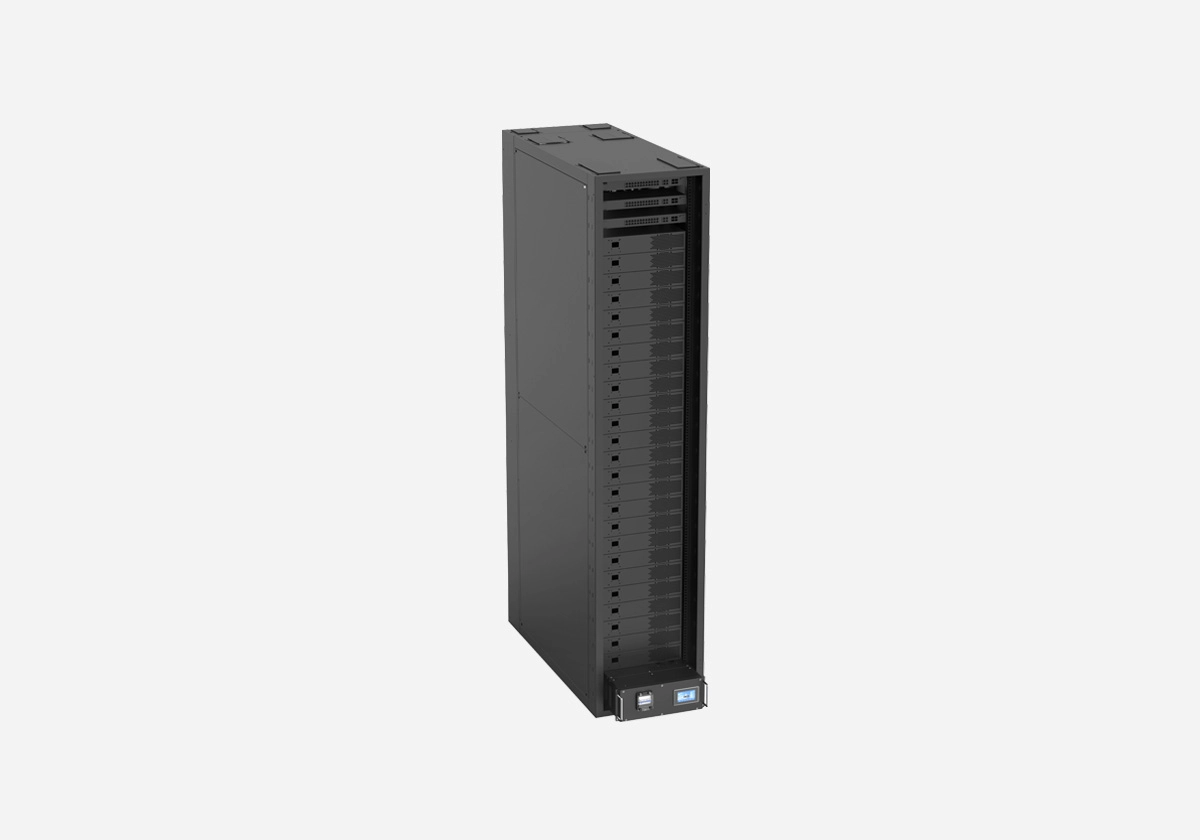

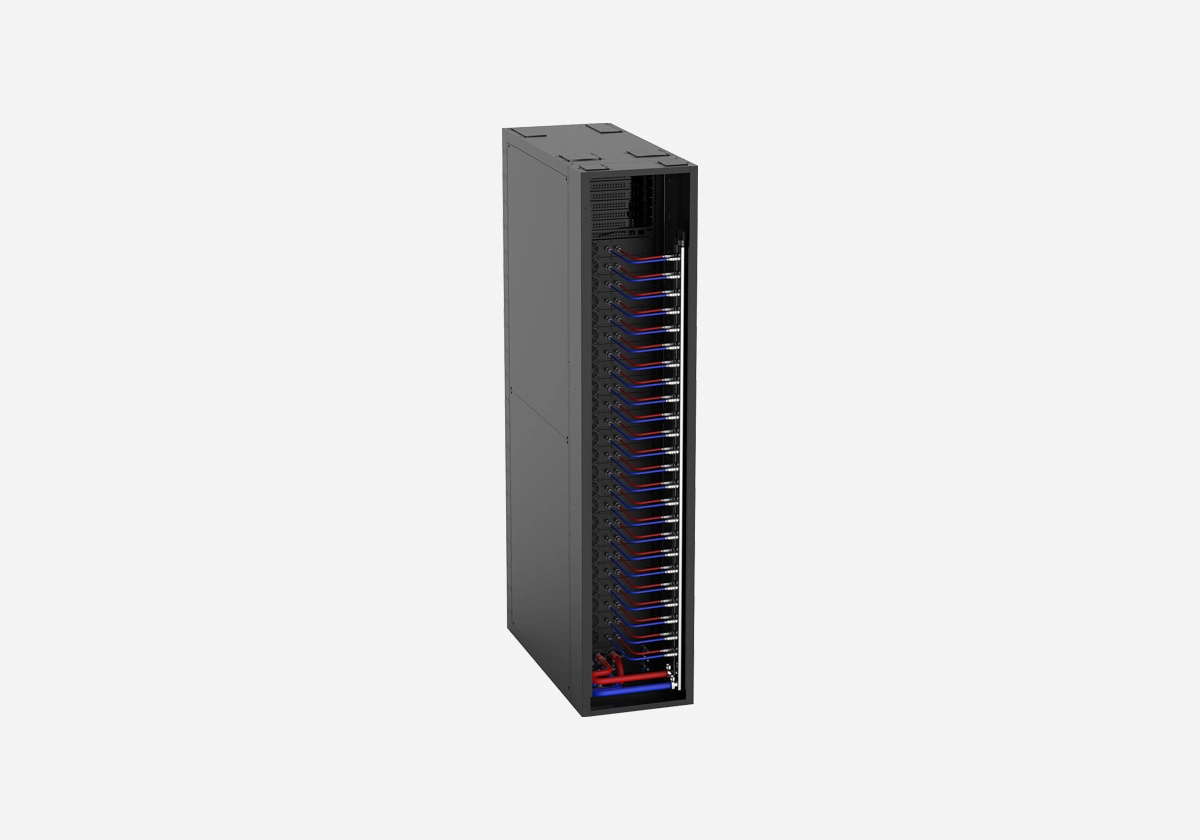

The Soeteck AICoolit™ Liquid Cooling Cabinet is a dedicated cabinet for liquid cooling equipment with high – strength, high – precision, full autonomy, and full – cycle service, ensuring efficient heat dissipation and reliable operation.
| Models | Width | Depth | Height | Rack Units |
|---|---|---|---|---|
| SY-LCC061242 | 600mm | 1200mm | 2000mm | 42U |
| SY-LCC061247 | 600mm | 1200mm | 2200mm | 47U |
| SY-LCC061254 | 600mm | 1200mm | 2500mm | 54U |

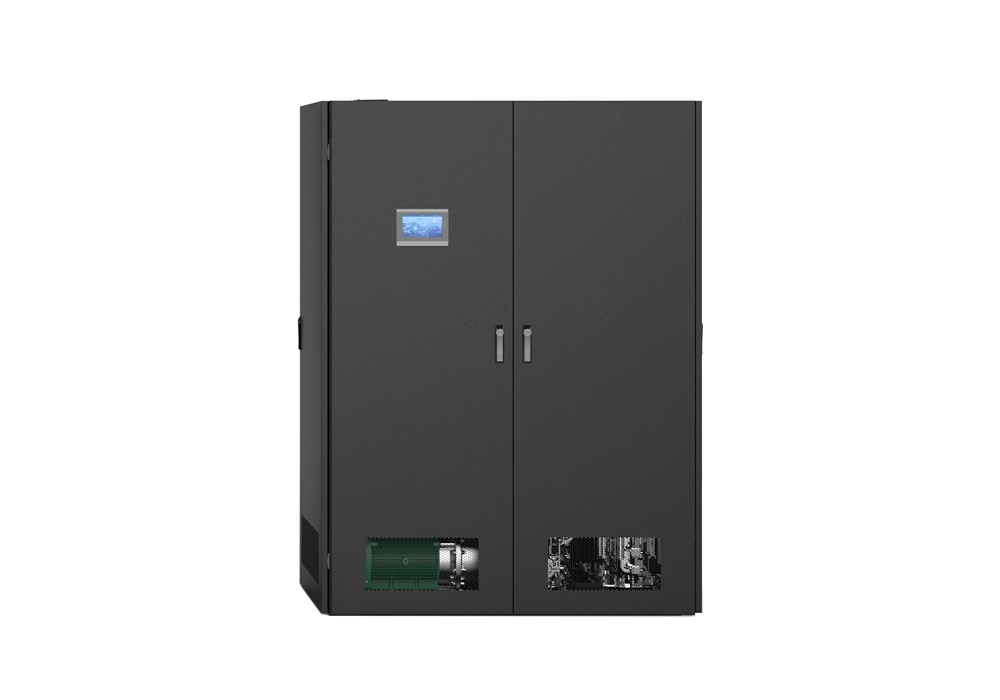

The Soeteck AICoolit™ Room CDU Coolant Distribution Unit is a room-level liquid cooling core device for medium-to-large data centers, HPC and AI centers, supporting over 100 liquid-cooled cabinets and high-computing scenarios with reliable N+1 redundancy...
| Models | Cooling Capacity | Circulation Flow Rate | Rated Power | Fluid Type | Pump Count | Width | Depth | Height | Appox.Weight |
|---|---|---|---|---|---|---|---|---|---|
| SY-CDU-RM-800 | 800kW | 69.04/72.84 m³/h | 15.5kW | Water / 25% EG | 2 | 980mm | 1480mm | 2000mm | 850kg |
| SY-CDU-RM-1000 | 1000kW | 86.31/91.05 m³/h | 18.5kW | Water / 25% EG | 3 | 980mm | 1480mm | 2000mm | 1000kg |
| SY-CDU-RM-1350 | 1350kW | 116.50/122.92 m³/h | 22.5kW | Water / 25% EG | 3 | 980mm | 1480mm | 2000mm | 1200kg |
| SY-CDU-RM-2000 | 2000kW | 173.73/190.78 m³/h | 33.0kW | Water / 25% EG | 3 | 980mm | 1480mm | 2000mm | 1500kg |

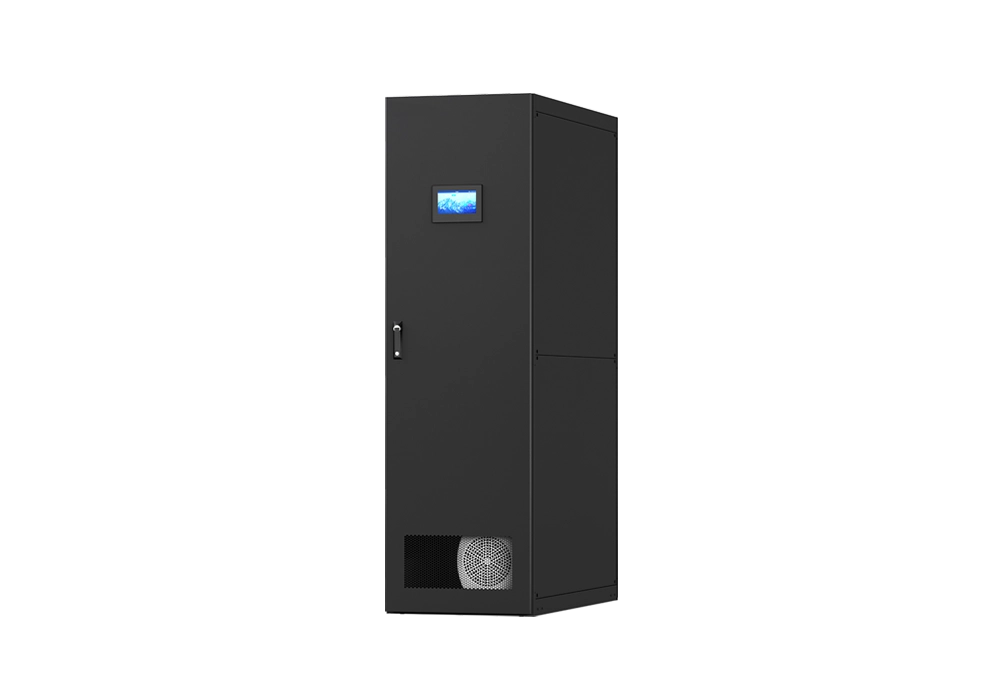

The Soeteck In-Row CDU Coolant Distribution Unit is a high-performance in-row liquid cooling CDU for cold-plate liquid-cooled data centers, HPC clusters, and intelligent computing centers. With 200kW-600kW cooling capacity, redundant components, online maintenance, and remote...
| Models | Cooling Capacity | Circulation Flow Rate | Rated Power | Fluid Type | Pump Count | Width | Depth | Height | Appox.Weight |
|---|---|---|---|---|---|---|---|---|---|
| SY-CDU-RW-350 | 350kW | 30.38/31.86 m³/h | 4.8kW | Water / 25% EG | 1 | 600mm | 1200mm | 2200mm | 550kg |
| SY-CDU-RW-600 | 600kW | 52.26/55.49 m³/h | 11.6kW | Water / 25% EG | 2 | 600mm | 1200mm | 2200mm | 600kg |

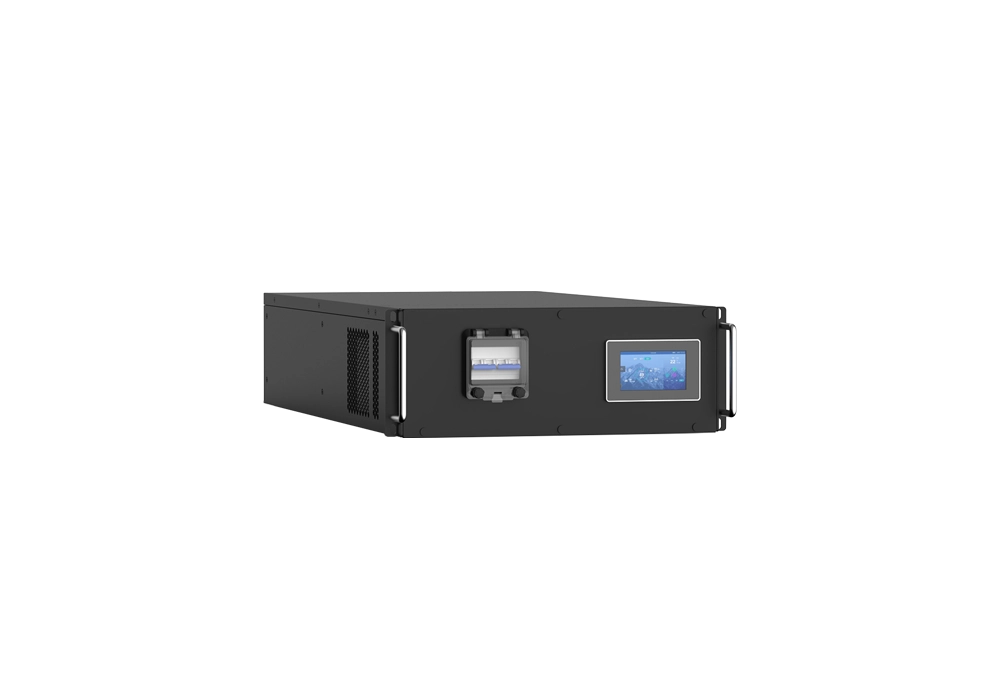

The Soeteck Rack CDU Coolant Distribution Unit is a versatile rack-level liquid cooling solution for small-to-medium data centers, edge computing facilities, and flexibly expandable cold-plate liquid-cooled scenarios. With multi-scenario compatibility, 50-200kW high heat-density support, and...
| Models | Cooling Capacity | Circulation Flow Rate | Rated Power | Fluid Type | Pump Count | Width | Depth | Height | Appox.Weight |
|---|---|---|---|---|---|---|---|---|---|
| SY-CDU-RK-50 | 50kW | 4.32/4.56 m³/h | 0.8kW | Water / 25% EG | none | 450mm | 850mm | 175mm | 75kg |
| SY-CDU-RK-80 | 80kW | 6.91/7.29 m³/h | 1.4kW | Water / 25% EG | none | 536mm | 900mm | 175mm | 85kg |
The Soeteck AICoolit™ Hybrid CDU Coolant Distribution Unit is an innovative CDUs for liquid cooling solution for small-to-medium, hybrid, and intelligent computing data centers. With liquid-to-air integration, 20% cost reduction, dynamic balance, flexible deployment, and...
| Models | Liquid Cooling Capacity | Air Cooling Capacity | Rated Power | Air Volume | Width | Depth | Height | Appox.Weight |
|---|---|---|---|---|---|---|---|---|
| SY-LAI-100 | 60kW | 40kW | 21.5kW | 9500m³/h | 600mm | 1200mm | 2000mm | 500kg |
| SY-LAI-140 | 100kW | 40kW | 21.8kW | 9500m³/h | 600mm | 1200mm | 2000mm | 500kg |
| SY-LAI-190 | 150kW | 40kW | 22.3kW | 9500m³/h | 600mm | 1200mm | 2000mm | 500kg |

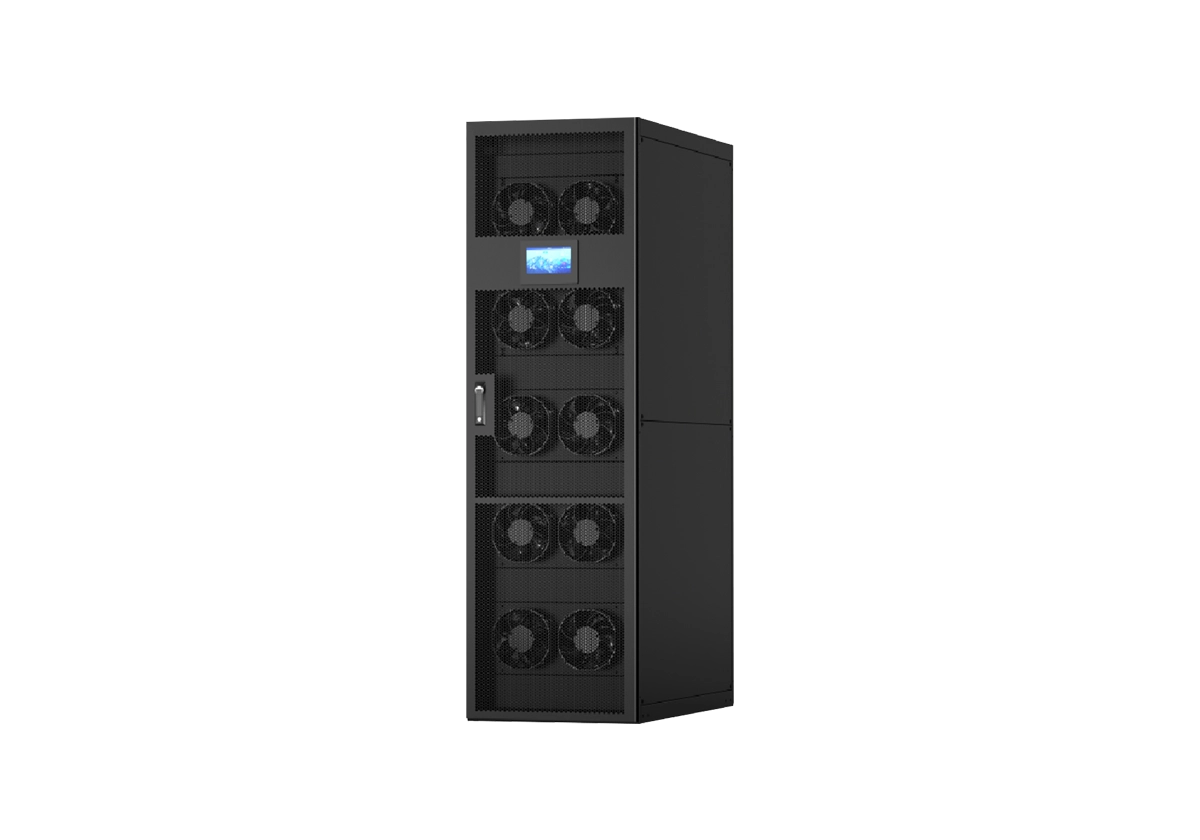

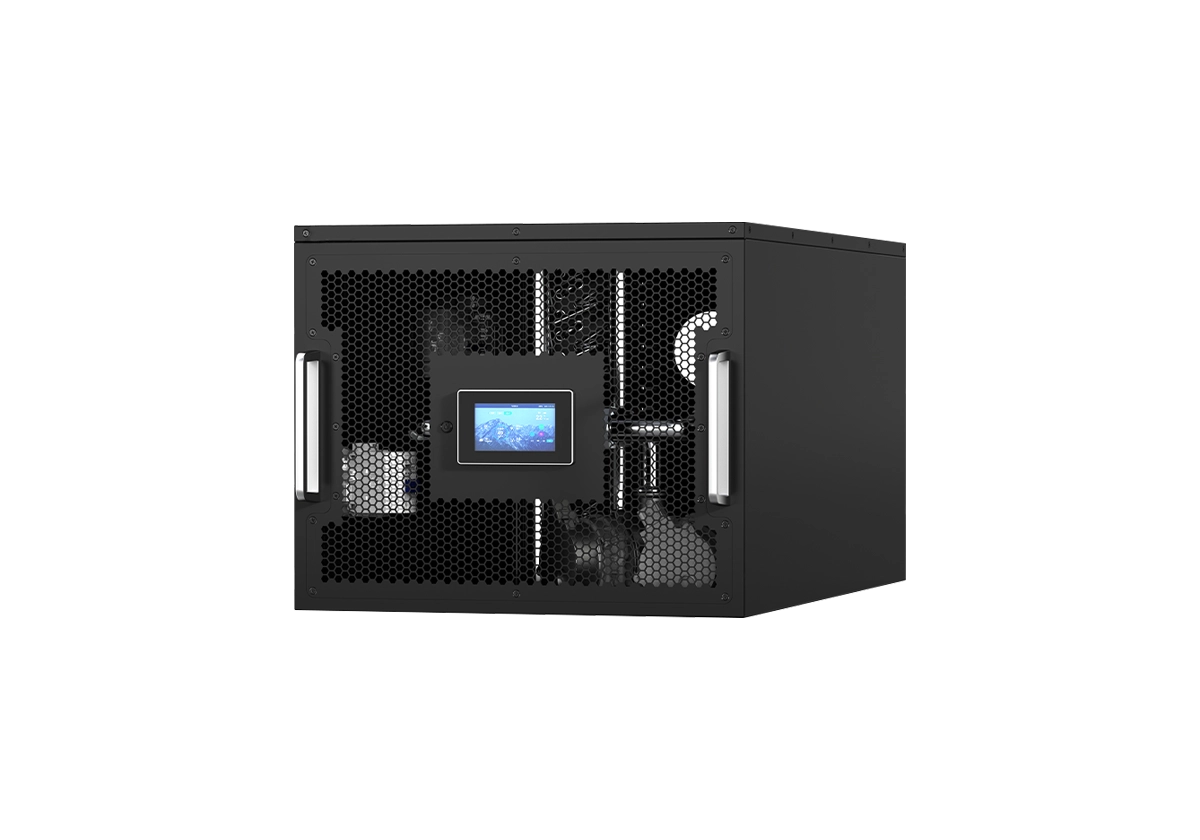

The Soeteck Liquid-to-Air Rack CDU Coolant Distribution Unit is an innovative CDU for your existing air-cooled data centers. With no-modification deployment, support for mixed server installation, efficient heat dissipation, standard cabinet compatibility, and energy saving,...
| Models | Cooling Capacity | Circulation Flow Rate | Rated Power | Fluid Type | Pump Count | Width | Depth | Height | Appox.Weight |
|---|---|---|---|---|---|---|---|---|---|
| SY-CDU-RK-LA20 | 20kW | 2.88m³/h | 1.6kW | Deionized Water | none | 536mm | 900mm | 445mm | 85kg |
| SY-CDU-RW-LA120 | 120kW | 17.26m³/h | 7kW | Deionized Water | 1 | 600mm | 1200mm | 2000mm | 400kg |

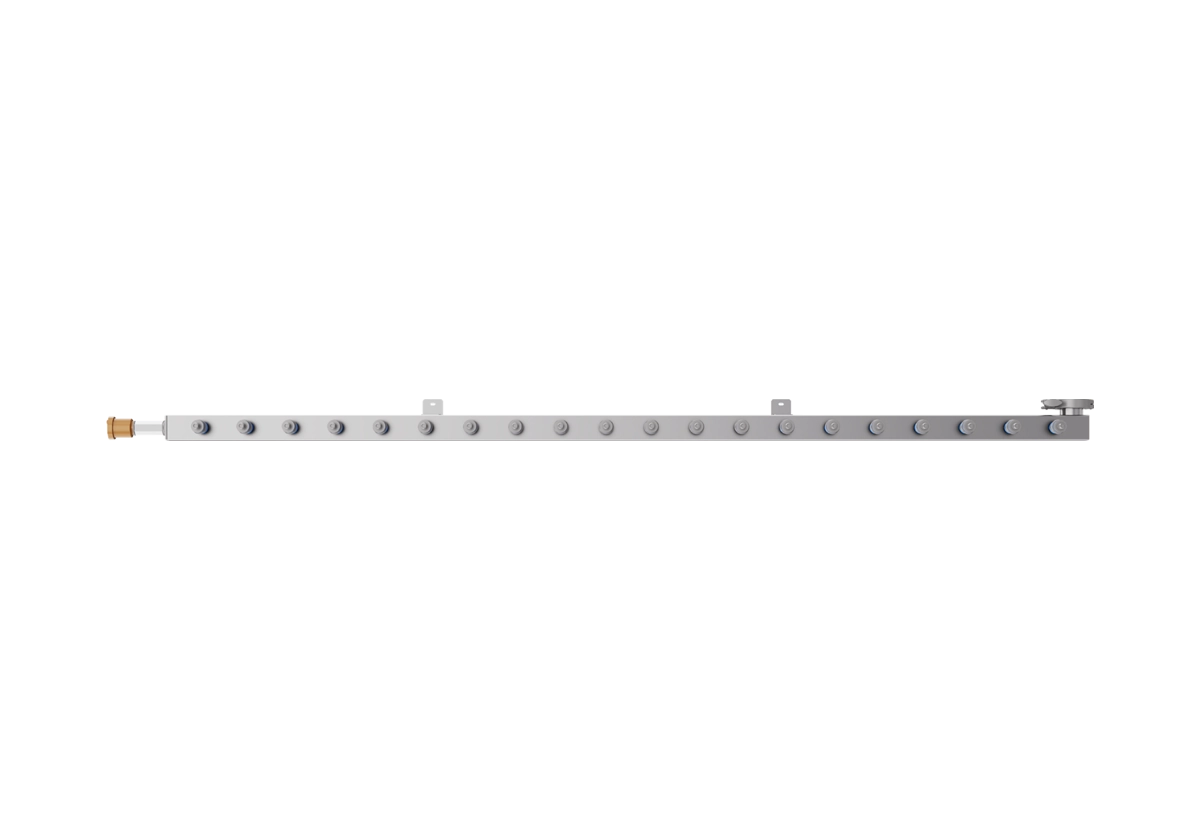

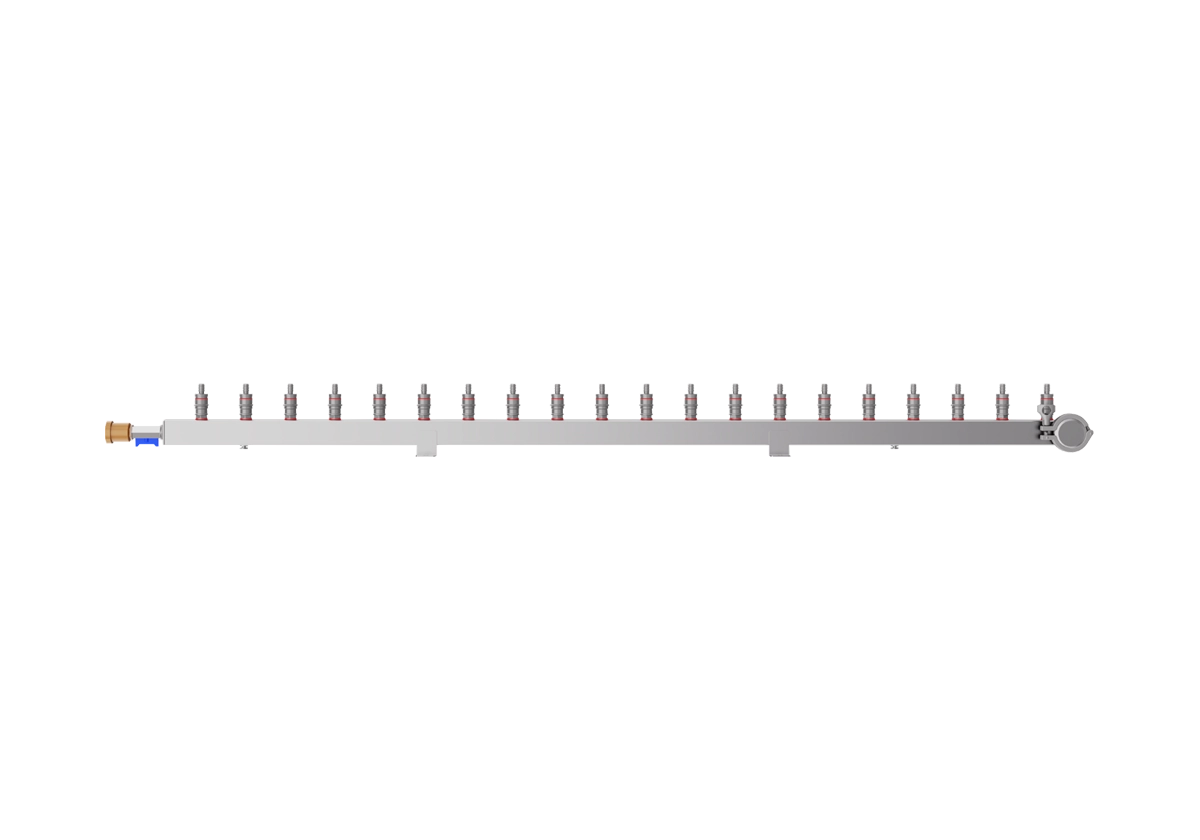

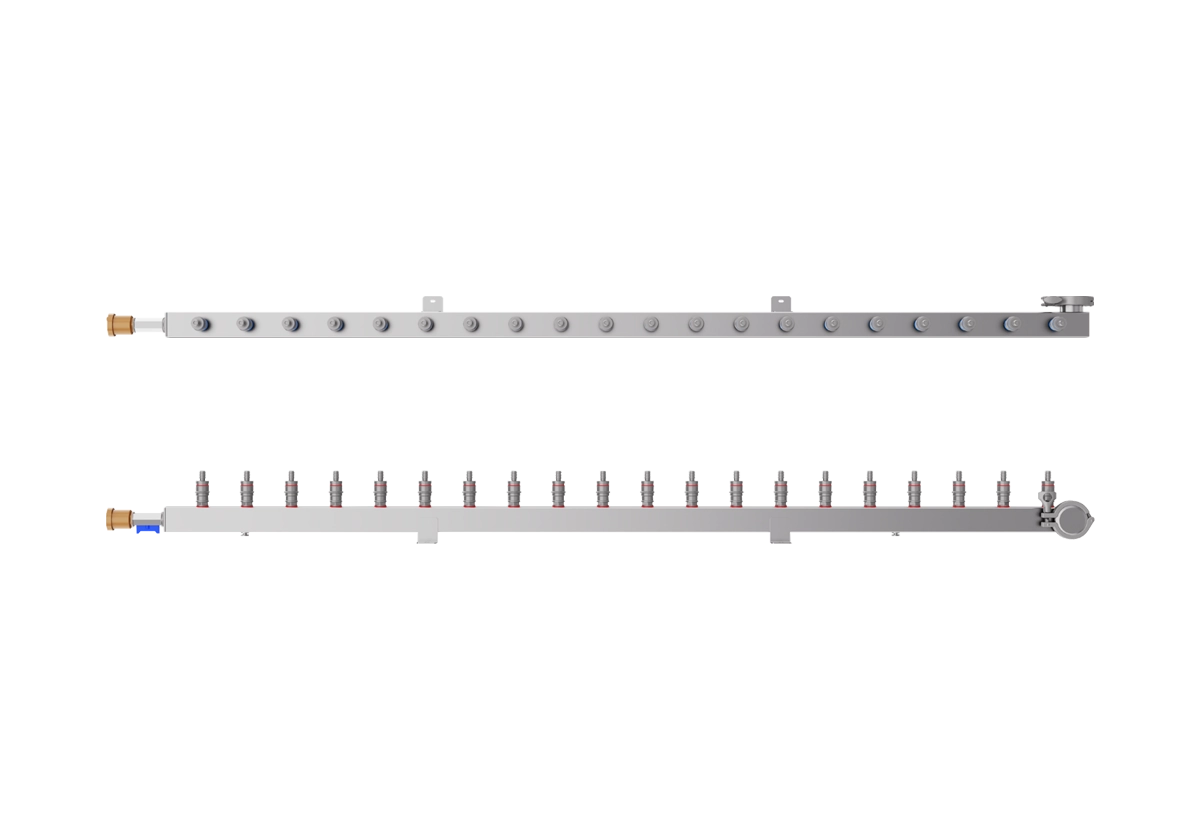

The Soeteck Rack Manifold for Liquid Cooling Solutions is a key component connecting liquid cooling source CDU and cold plate. With strong corrosion resistance, high strength, ultra – precision manufacturing, and diverse connection types, it...

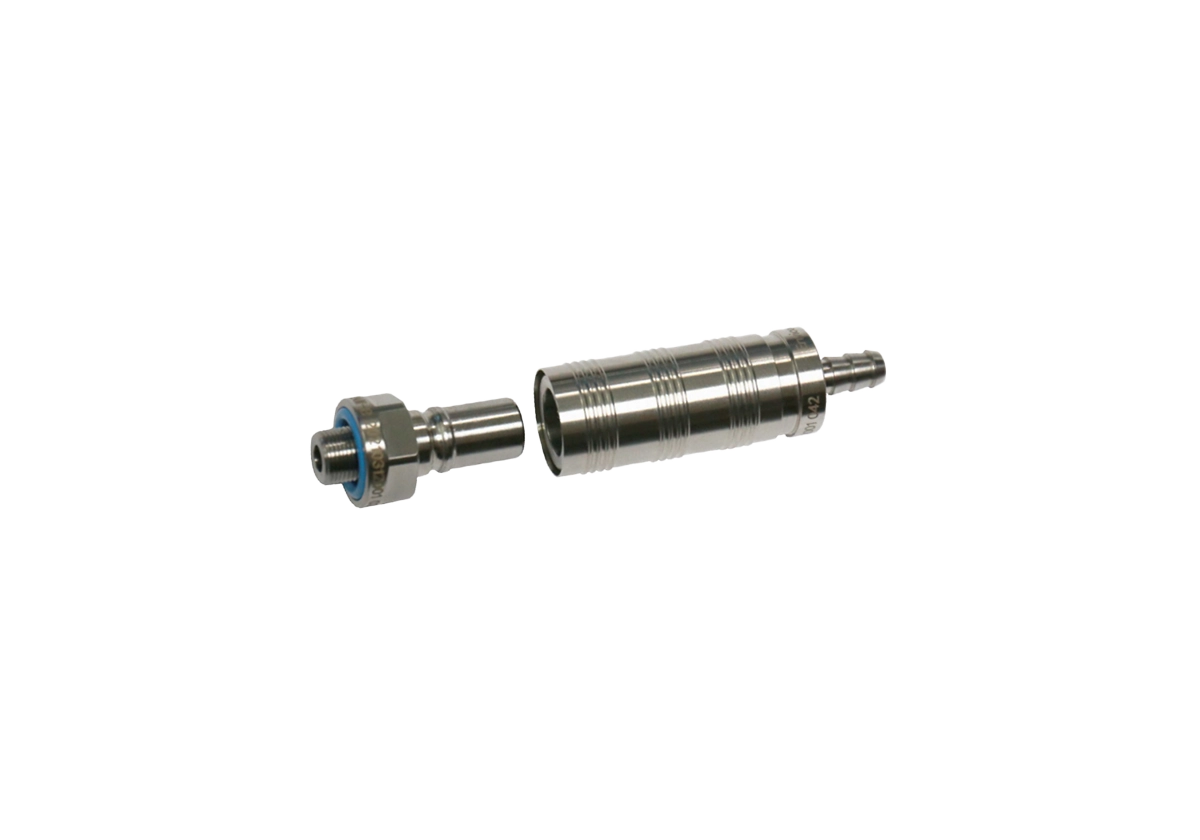

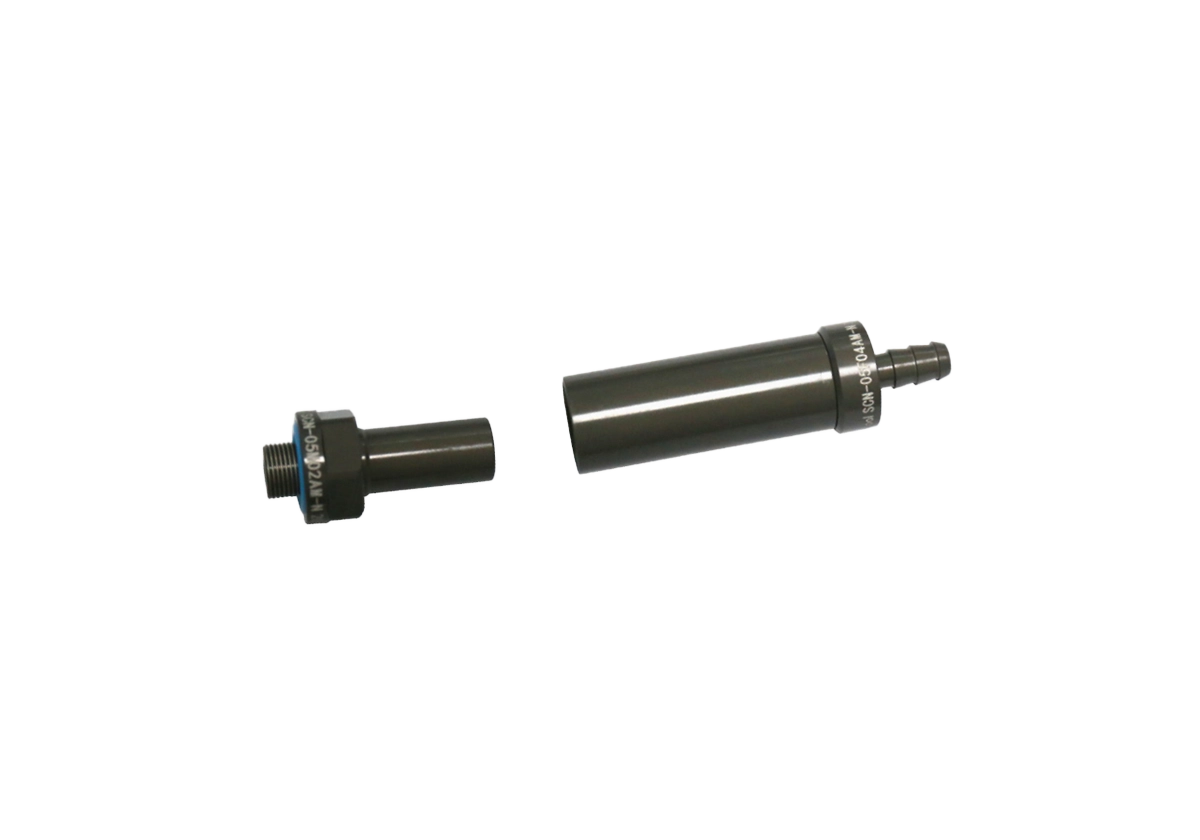

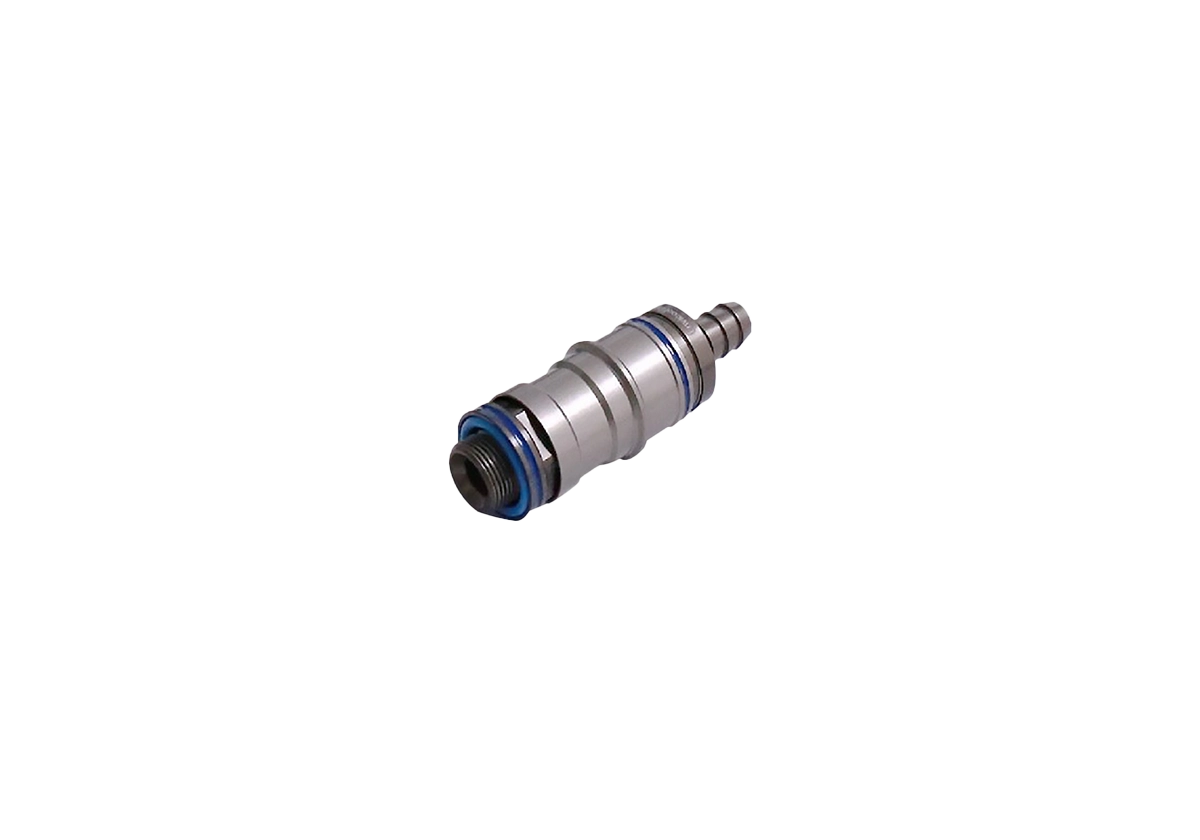

The Soeteck Quick Disconnect Coupling for Liquid Cooling Solutions is a key connector in liquid cooling circulation systems. Enabling leak – free, pressure – tolerant quick connections/disconnections, it boosts efficiency and simplifies liquid handling in...

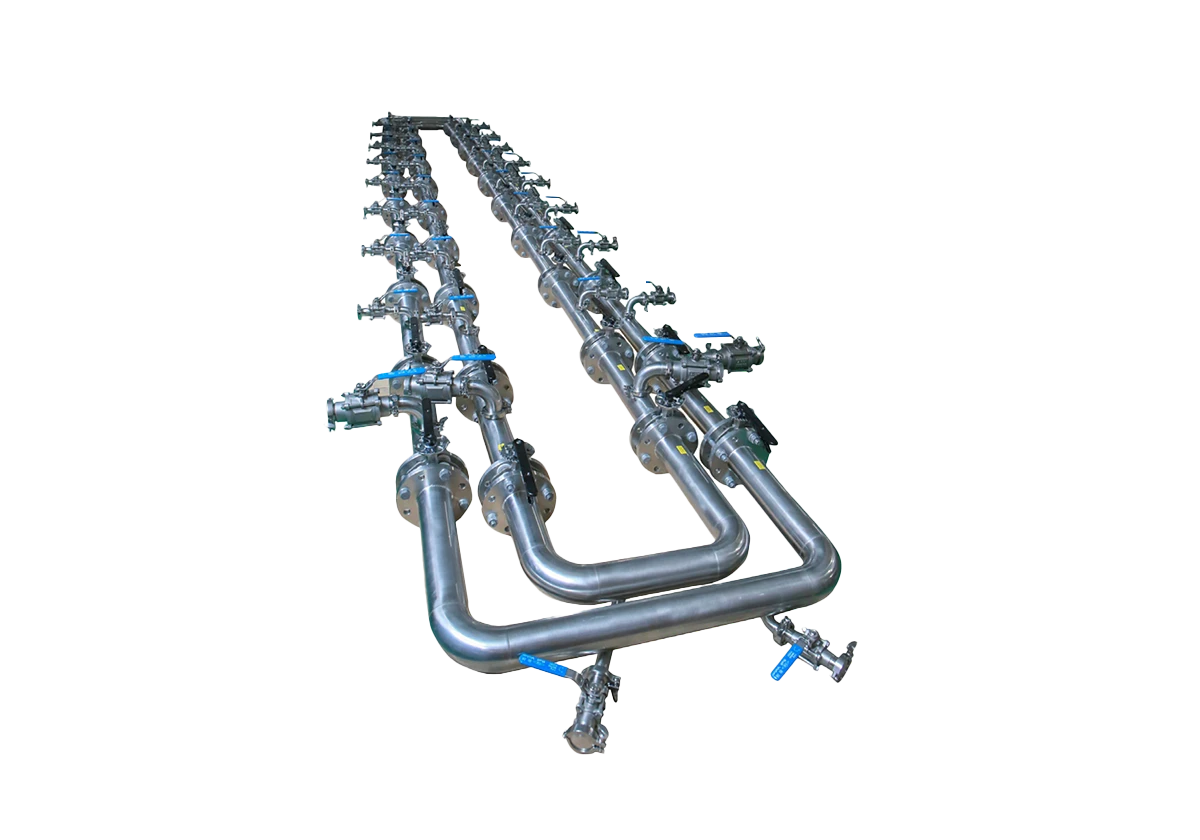

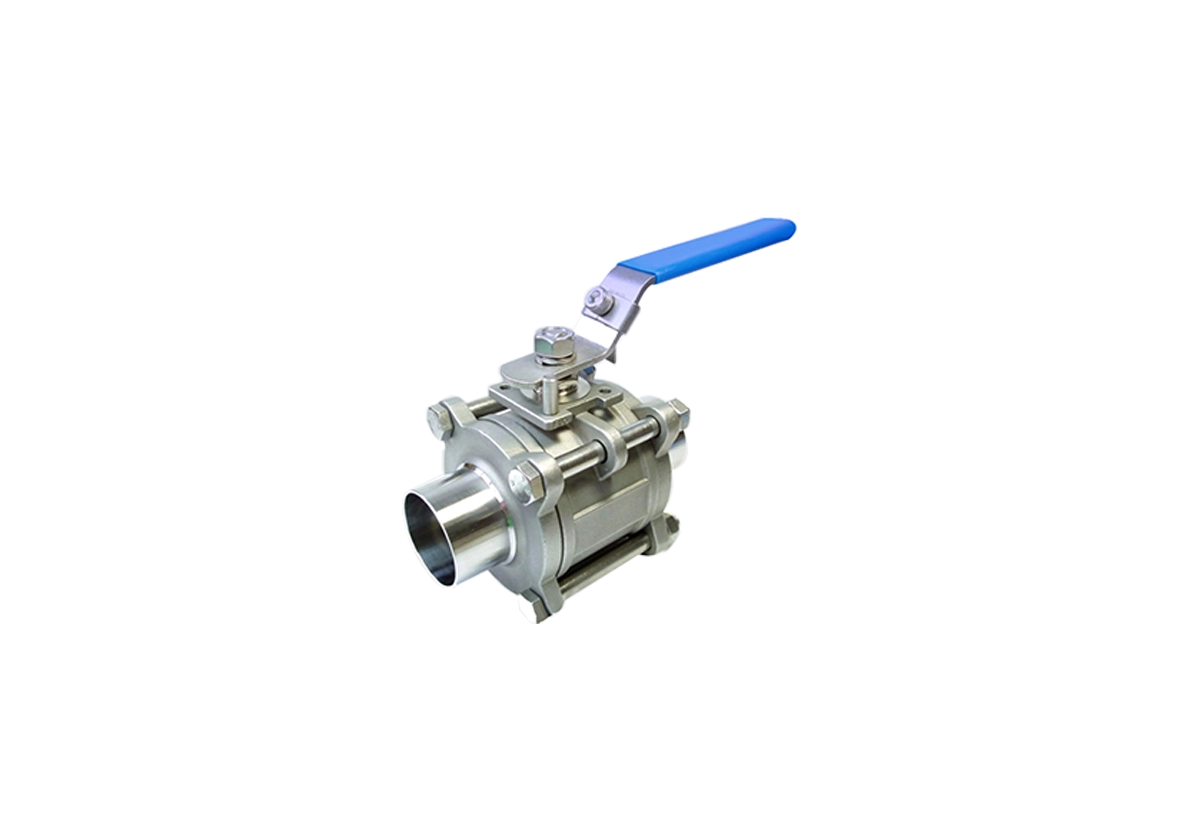

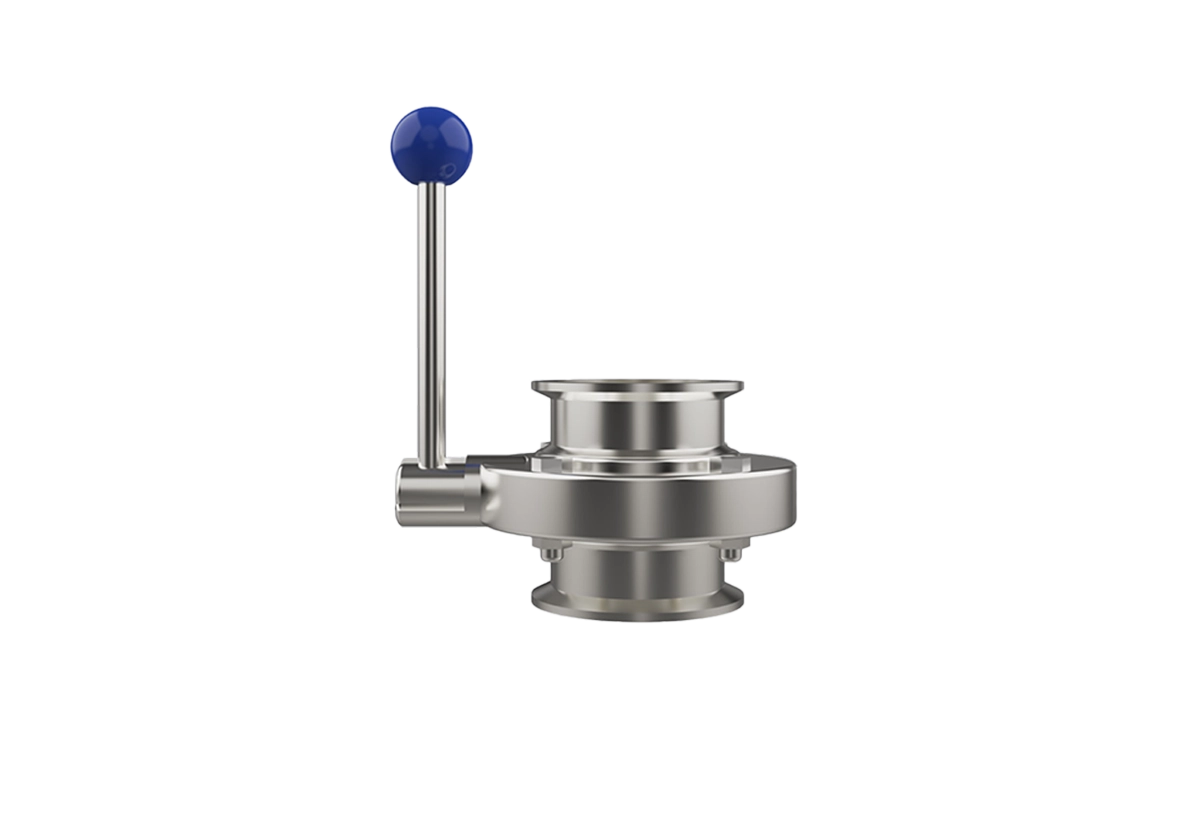

The Soeteck Secondary Loop for Liquid Cooling Solutions is a stainless – steel, modular prefabricated loop for liquid cooling waterway systems. Enabling quick assembly and flow control via valves like SS304 Ball Valve and Butterfly...
