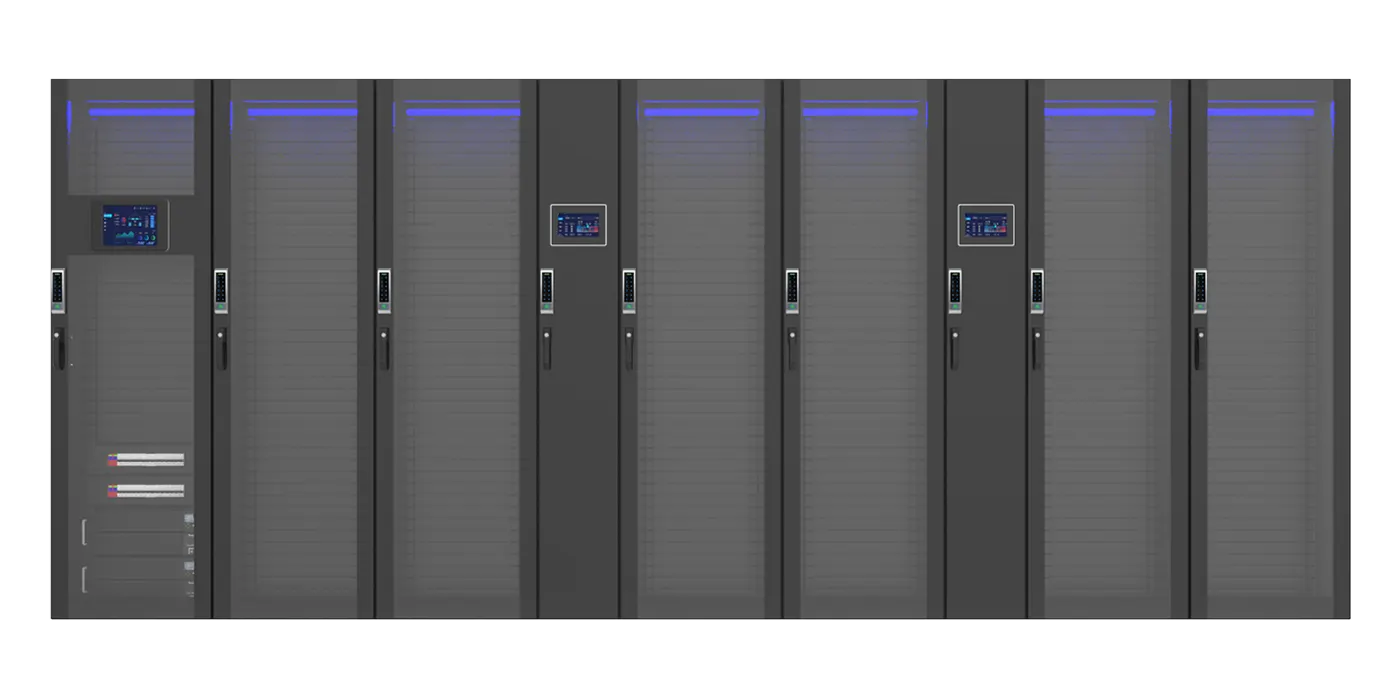

Cabinet Modular Data Center

Micro Data Centers for 5G, IoT, and AI

The SOETECK Cabinet Modular Data Center (CMDC) packs power, cooling, and monitoring into a single sealed unit. It handles the network demand behind 5G, IoT, and AI without the long setup and high operating cost of a traditional facility, and it scales from one to ten cabinets.

Each unit is sealed to IP5X, so hot and cold airflow stay separate and noise stays under 49 dB. Intelligent monitoring tracks temperature, humidity, and power in real time, while high-efficiency UPS and variable-speed cooling hold PUE to about 1.4.

The CMDC is used in banking, education, healthcare, manufacturing, and government. Against a conventional build it cuts construction cost by 30%, setup time by 90%, and space by up to 80%. A unified management platform gives remote monitoring and maintenance from one dashboard, with strong seismic resistance built in.

GET BROCHURE CONTACT US

Inside the Cabinet Modular Data Center

1 - Typical Designs of CMDCs

Typical design of a cabinet modular data center

The cabinet modular data center provides an integrated solution for power distribution, cooling management, fire safety, and structured cabling. It is designed to offer safety, reliability, and efficiency in a compact format.

Key Features:

Safety and Reliability: Built to high safety standards with multiple protective measures, including fire resistance, water resistance, and enhanced security features.
Rapid Deployment: The design enables quick setup and installation, allowing for operational readiness in a short timeframe.
Flexible Scalability: Modular architecture supports easy expansion to accommodate changing requirements.
High Density and Efficiency: Efficient use of space allows for high computing power while minimizing resource consumption.
Intelligent Management: Equipped with monitoring and management systems for effective oversight and maintenance.

2 - Featured Models

Our integrated cabinet system for data centers comprises three modular solutions: the Top-mounted AC Version (3-6 kVA), Rack-Mounted AC Version (3-10 kVA), and Row-Based AC Version (6-20 kVA). Each system unifies UPS, power distribution, and intelligent monitoring, delivering efficient, scalable infrastructure tailored to data centers of all sizes.

Integrated Systems:

3-6 kVA UPS
Power distribution
Battery backup
Monitoring & security

Key Advantages:

True plug-and-play (no outdoor unit)
Space-efficient all-in-one design
Quick deployment

Integrated Systems:

3-10 kVA UPS
Power distribution
Battery backup
Monitoring & security

Key Advantages:

Split design reduces U-space occupancy
Low-noise operation
Modular scalability

Integrated Systems:

6-20 kVA UPS
Power distribution
Battery backup
Monitoring & security

Key Advantages:

In-row cooling saves U-space
Enhanced thermal performance
Enterprise-grade density

Like LEGO bricks, these cabinets are designed for rapid deployment. Our solutions can be customized to meet specific requirements, achieving a PUE as low as 1.4 and deploying in just 10 minutes. The IP5X-rated sealed cabinet features an emergency pop-open door, three-in-one access control (fingerprint, card, password), a touchscreen monitoring interface, and support for multiple northbound protocols.

3 - Core Infrastructure Modules

The SOETECK cabinet modular data center solution consists of several key components, including the cabinet system, thermal control system, critical power supply, security system and dynamic environment system. Here, you will find details about several core modules.

Efficient Cooling Module

Thermal Management and heat dissipation

Intelligent Power Distribution

Power supply distribution and management

Safety Protection System

Fire protection and physical security

Intelligent Monitoring System

Operational status monitoring

Critical Power

The SOETECK cabinet data center solution incorporates an efficient power distribution system, featuring a range of rack-mounted UPS units and custom-designed distribution modules. Customers can choose from either rack-mounted lithium batteries or lead-acid batteries to suit their needs. We also offer tailored UPS selection services, along with comprehensive distribution design and manufacturing. Furthermore, based on your required backup duration, we provide a variety of battery options, including battery packs, battery cabinets, and battery racks.

SY-RT Series (1-3kVA) UPS

The SY-RT Series UPS, 1-3kVA, delivers reliable online double-conversion protection with PF1 output, wide input voltage range, and compact rack/tower design.

SY-RT Series (1-10kVA) UPS

The SY-RT Series UPS, 1-10kVA, offers reliable online UPS protection with PF0.8, up to 93% efficiency, and flexible rack/tower mounting for versatile deployment.

ST-RT Series (10-60kVA) UPS

The ST-RT Series UPS, offering 10-60kVA, provides true double-conversion online protection with PF1 efficiency. Rack/tower convertible, 3-phase in/out, 95.5% ECO mode saving energy.

Thermal Management

SOETECK offers comprehensive cooling solutions tailored for data centers and base stations, including room-level, row-level, and rack-level precision air conditioning systems. To effectively address the cooling demands of high-density computing applications within individual cabinets, our rack-level and row-level precision air conditioning systems are designed for efficiency and cost-effectiveness.

Top-mount Packaged Rack Cooling

Top-mounted packaged rack cooling system, 2.5-5.5kW capacity. All-in-one design saves U-space with no outdoor unit required — ideal for micro data centers.

Packaged Rack Cooling

Packaged rack cooling system, 3.5kW capacity, 8U height. Compact bottom or middle-mounted design with R410A refrigerant and BMS integration.

Split-type Rack Cooling

Split-type rack cooling system with 3.9-12.8kW capacity range. Inverter compressor, EC fan, and outdoor compressor unit deliver efficient thermal management.

Featured Models

Models	SY-MDC-03N	SY-MDC-06T	SY-MDC-10R	Customized
Usable Space (U)	18U	31U	27U	Customized
Redundancy Type	N	N	N	N, N+1, 2N
Cooling Type	Integrated AC	Split-type AC	Split-type AC	Integrated or Split
AC Location	Top-mounted	Rack-mounted	Rack-mounted	As required
Cooling Capacity (kW)	3.5	3.5	6.5	Customized
UPS Capacity (kVA)	3	6	10	3–20
PDU Ports	Standard 8	Standard 16	Standard 16	Standard or Intelligent
Emergency Ventilation	Auto-opening door	Auto-opening door	Auto-opening door	Auto-opening door

SOETECK Cabinet Data Center Solution.pdf

Who Needs a Cabinet Modular Data Center?

Application Scenarios: An integration of Power, Cooling & Infrastructure Modules Supporting Reliable IT Operations – Where Cabinet Modular DC Delivers Unique Value

Bank Branches

Secure enclosureRemote monitoringSpace-saving

Our integrated rack design combines servers, power, and cooling in standard rack space, saving 60% floor area. Equipped with fingerprint access control, video surveillance, and a remote operation platform, it enables 7×24 unattended operation with fault response times reduced to minutes.

Natural disaster recovery, emergency relief

Small Business Offices

Quiet operationPlug & playLow maintenance

The integrated design simplifies daily management, allowing easy operation by non-professionals. Optimized noise reduction keeps operation below 50 decibels, avoiding office disruptions. High integration cuts total ownership costs by over 40% compared to traditional setups.

Remote drilling sites, mining operations

Telecom Base Stations

Wide temperature rangeWeatherproofRemote management

Our IP55-rated cabinets resist harsh weather. Dual power input plus lithium battery backup ensures 99.999% power reliability. A remote centralized platform monitors status in real-time, reducing on-site maintenance needs by 80%.

Sports events, festivals, conferences

Healthcare Facilities

Redundant powerLow noiseEasy sanitization

N+1 redundancy eliminates single points of failure in power and cooling, enabling online maintenance. Fully enclosed design with air filtration meets medical cleanliness standards, and compact size allows flexible deployment in nurse stations or department corners.

Field operations, military bases, defense installations

Smart Transportation Hubs

Vandal-resistantContinuous operationSpace-efficient

Industrial-grade redundancy ensures over 99.99% availability. Anti-pry cabinets and access control enhance physical security. Miniaturized racks deploy near functional areas, enabling centralized management via network collaboration.

IoT networks, smart cities, industrial edge

Emergency Command Centers

Rapid setupPortable designBackup power

The integrated cabinet is ready-to-use out of the box, deploying within 15 minutes of power connection. Wheel design enables short-distance movement, and integrated batteries provide 4-8 hours of emergency power for continuous operation.

Cloud data centers, enterprise IT expansion
