Power Distribution

Scalable power distribution for critical facilities.

Power distribution products help organize, monitor, and deliver electrical capacity from upstream power systems to critical loads.
Soeteck offers rack, row, room, and precision distribution options for data centers, telecom rooms, and industrial environments.

Showing all 8 results

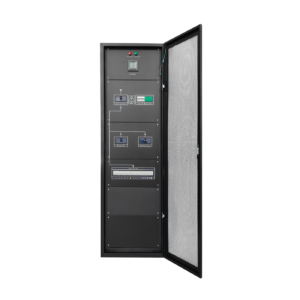

soeteck utility power distribution cabinet - 4soeteck utility power distribution cabinet - 3soeteck utility power distribution cabinet - 2soeteck utility power distribution cabinet - 1

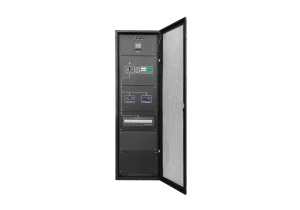

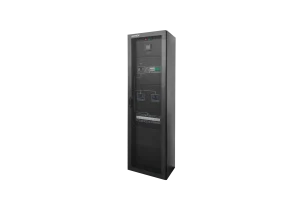

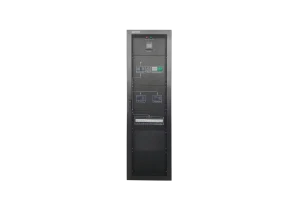

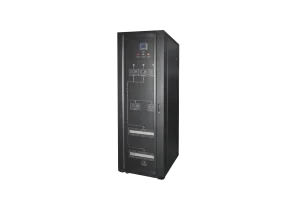

SOETECK Utility Power Distribution Cabinet

SOETECK Utility Power Distribution Cabinet delivers efficient power distribution and management at rated currents from 100A to 250A, with modular flexibility and comprehensive protection. This ensures high reliability in demanding industrial and commercial environments.

Get QuotationView Details
ModelsMaximum Branch CurrentBreaker CountLoop CountWidthDepthHeight
SY-SDP100A-12R-D100A12Dual600mm600mm2000mm
SY-SDP100A-12R-S100A12Single600mm800mm2000mm
SY-SDP160A-24R-D160A24Dual800mm800mm2000mm
SY-SDP160A-24R-S160A24Single800mm600mm2000mm
SY-SDP200A-36R-D200A36Dual600mm800mm2000mm
SY-SDP200A-36R-S200A36Single600mm1000mm2000mm
SY-SDP250A-48R-D250A48Dual800mm800mm2000mm
SY-SDP250A-48R-S250A48Single800mm1000mm2000mm

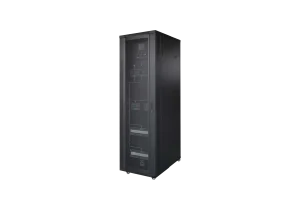

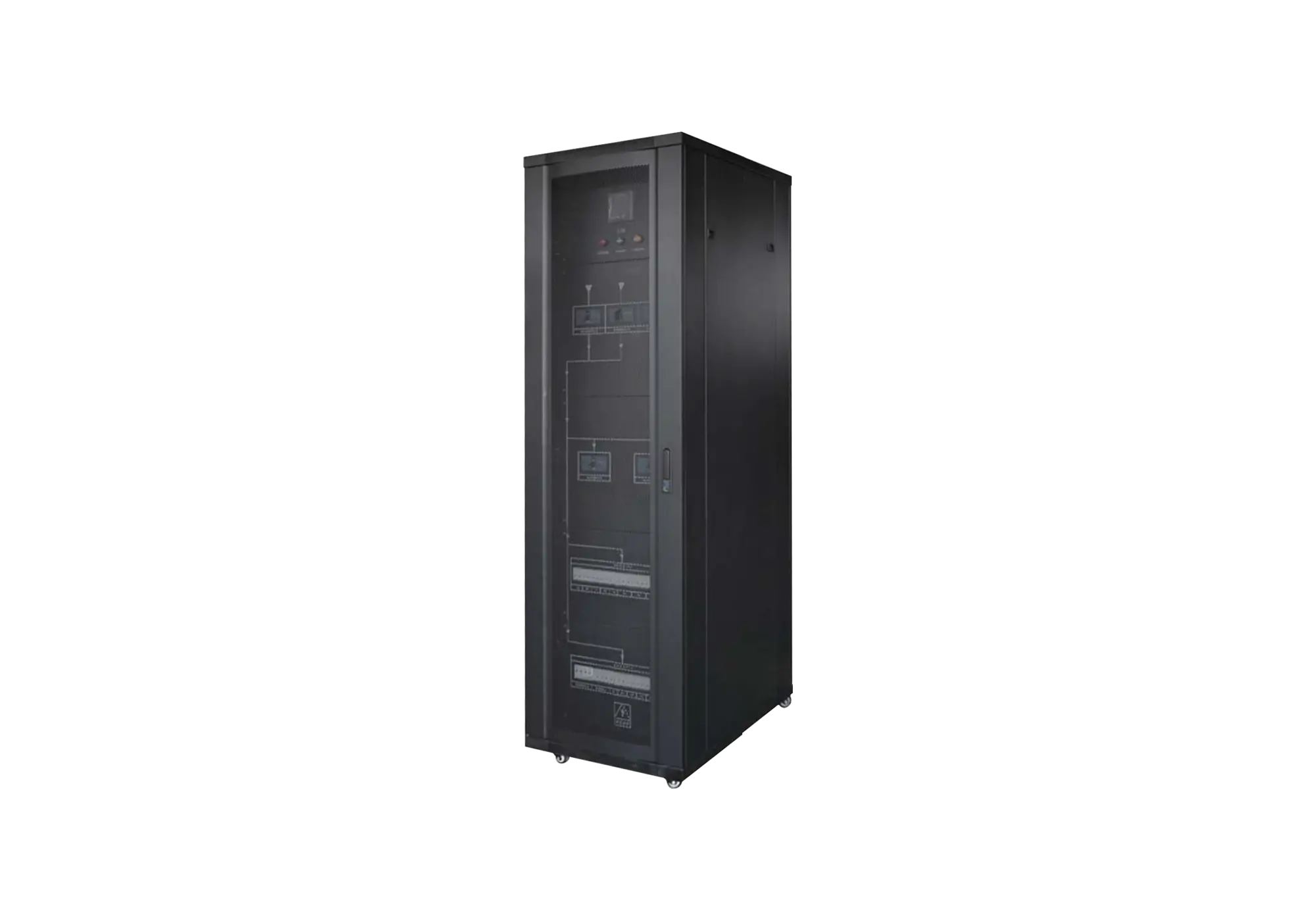

Low-voltage Power Distribution Cabinet for Input & Output of UPS - 2.pngLow-voltage Power Distribution Cabinet for Input & Output of UPS - 3

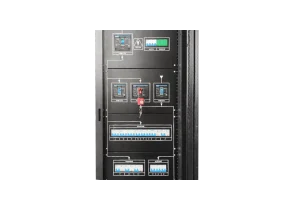

SOETECK UPS Input/Output Power Distribution Cabinet

SOETECK UPS Input/Output Power Distribution Cabinet provides reliable and flexible power management within a 19-inch modular enclosure. Designed for critical infrastructures such as data centers, hospitals, and communication hubs, it ensures uninterrupted power flow with integrated input/output handling, surge protection, and easy maintenance. This cabinet optimizes …

Get QuotationView Details
ModelsMaximum Branch CurrentBreaker CountLoop CountWidthDepthHeight
SY-UPS100A-12R-D100A12Dual600mm600mm2000mm
SY-UPS100A-12R-S100A12Single600mm800mm2000mm
SY-UPS160A-24R-D160A24Dual800mm800mm2000mm
SY-UPS160A-24R-S160A24Single800mm600mm2000mm
SY-UPS200A-36R-D200A36Dual600mm800mm2000mm
SY-UPS200A-36R-S200A36Single600mm1000mm2000mm
SY-UPS250A-48R-D250A48Dual800mm800mm2000mm
SY-UPS250A-48R-S250A48Single800mm1000mm2000mm

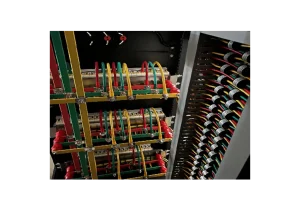

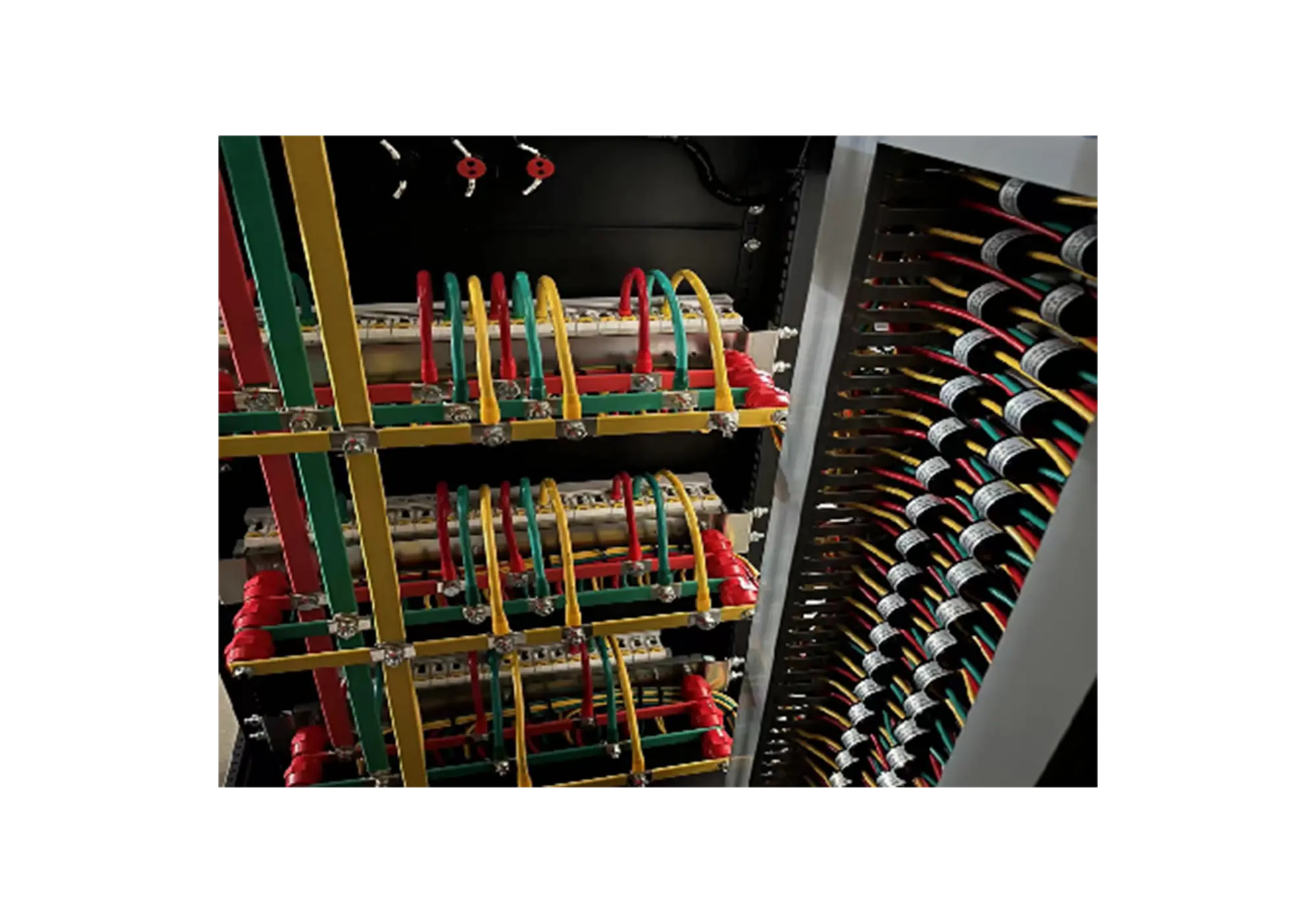

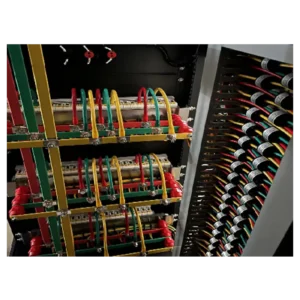

Soeteck ATS Power Distribution Cabinet-3ATS Power Distribution Cabinet-3

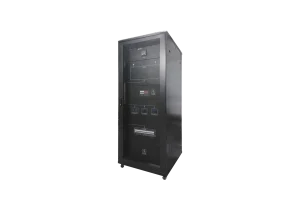

SOETECK ATS Power Distribution Cabinet

The SOETECK ATS Power Distribution Cabinet delivers reliable automatic switching between city power sources and emergency generator power within a 100A capacity range. Featuring modular design, high-performance circuit breakers, and flexible cable entry options, it ensures stable, safe, and efficient backup power management suitable for industrial …

Get QuotationView Details
ModelsMaximum Branch CurrentBreaker CountLoop CountWidthDepthHeight
SY-ATS100A-12R-D100A12Dual600mm600mm2000mm
SY-ATS100A-12R-S100A12Single600mm800mm2000mm
SY-ATS160A-24R-D160A24Dual800mm800mm2000mm
SY-ATS160A-24R-S160A24Single800mm600mm2000mm
SY-ATS200A-36R-D200A36Dual600mm800mm2000mm
SY-ATS200A-36R-S200A36Single600mm1000mm2000mm
SY-ATS250A-48R-D250A48Dual800mm800mm2000mm
SY-ATS250A-48R-S250A48Single800mm1000mm2000mm

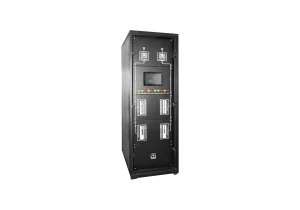

soeteck precision distribution cabinet - 4soeteck precision distribution cabinet - 1soeteck precision distribution cabinet - 2soeteck precision distribution cabinet - 3

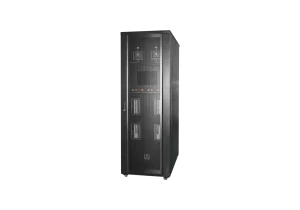

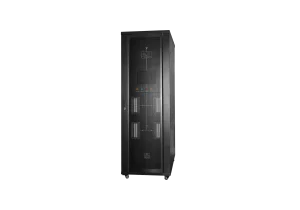

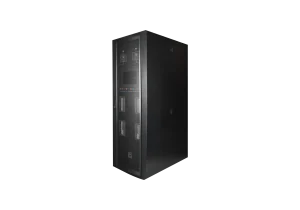

SOETECK Precision Power Distribution Cabinet with Hot-Swappable Design

The SOETECK Precision Power Distribution Cabinet with Hot-Swappable Design offers a comprehensive power management solution that supports stable and efficient electrical distribution tailored for demanding environments. Its modular construction and integrated smart monitoring system simplify both installation and management. Ideal for data centers, telecom facilities, and …

Get QuotationView Details
ModelsMaximum Branch CurrentBreaker CountLoop CountWidthDepthHeight
SY-DPF100A-12R-D100A12Dual600mm600mm2000mm
SY-DPF100A-12R-S100A12Single600mm800mm2000mm
SY-DPF160A-24R-D160A24Dual800mm800mm2000mm
SY-DPF160A-24R-S160A24Single800mm600mm2000mm
SY-DPF200A-36R-D200A36Dual600mm800mm2000mm
SY-DPF200A-36R-S200A36Single600mm1000mm2000mm
SY-DPF250A-48R-D250A48Dual800mm800mm2000mm
SY-DPF250A-48R-S250A48Single800mm1000mm2000mm

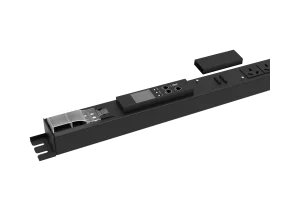

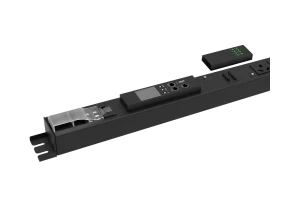

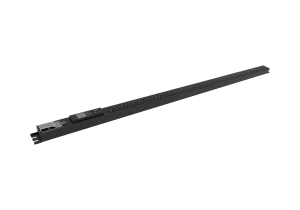

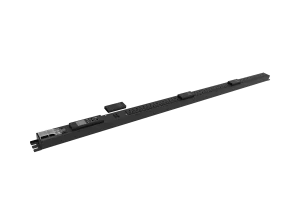

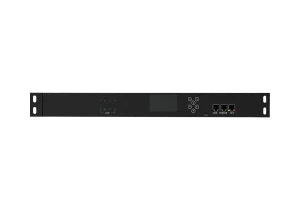

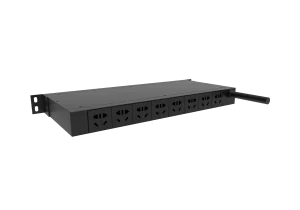

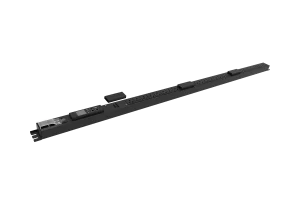

SOETECK Smart-K series PDU -2SOETECK Smart-K series PDU -1SOETECK Smart-K series PDU -3SOETECK Smart-K series PDU -11

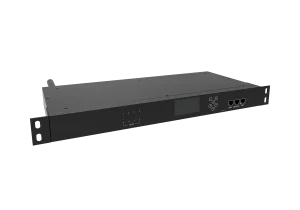

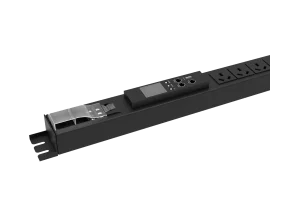

SOETECK Smart-K series PDU, Advanced Networked Power Management for High-Security Environments

The Smart K Series PDU is an advanced power distribution unit designed for modern data centers and industrial environments. It features remote monitoring and control capabilities, supporting a wide range of input types and up to 8 sensors for comprehensive environmental monitoring. With its LCD display …

Get QuotationView Details
ModelsMonitoring & ControlCommunication ProtocolInput Voltage RangeOutput Voltage RangeOutput QuantityIP Rating
Smart K1Total monitoringTCP/UDP, ModbusRTU, SNMP V3, NTP, HTTP/HTTPS, DHCP...100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20
Smart K2Total monitoring Unit monitoringTCP/UDP, ModbusRTU, SNMP V3, NTP, HTTP/HTTPS, DHCP...100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20
Smart K3Total monitoring Unit controlTCP/UDP, ModbusRTU, SNMP V3, NTP, HTTP/HTTPS, DHCP...100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20
Smart K4Total monitoring Unit control Unit monitoringTCP/UDP, ModbusRTU, SNMP V3, NTP, HTTP/HTTPS, DHCP...100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20

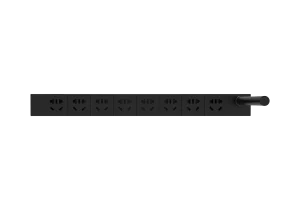

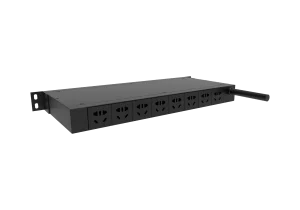

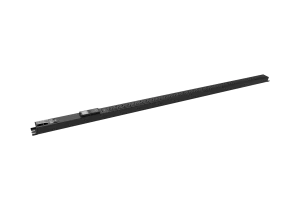

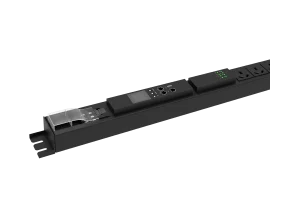

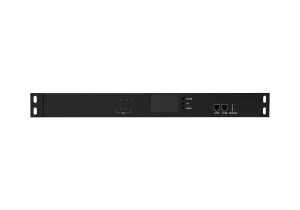

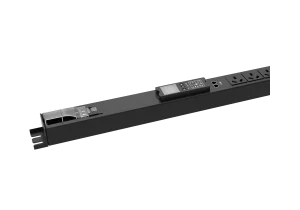

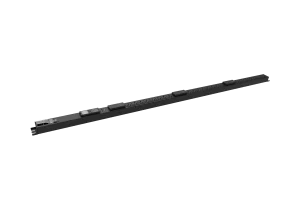

SOETECK Smart-F series PDU -1SOETECK Smart-F series PDU -2SOETECK Smart-F series PDU -3SOETECK Smart-F series PDU -4

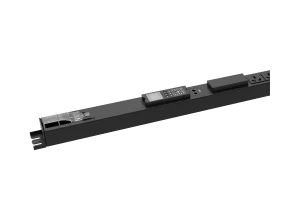

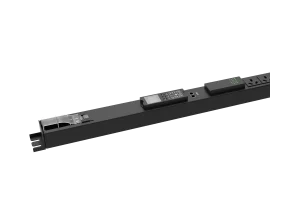

SOETECK Smart-F series PDU, Efficient and Modular Power Distribution for Localized Management

The Smart F Series PDU is a reliable power distribution unit designed for local monitoring and control. It features total monitoring and supports ModbusRTU for integration with local SCADA systems. With support for multiple input types and up to 8 sensors, this PDU offers comprehensive environmental …

Get QuotationView Details
ModelsMonitoring & ControlCommunication ProtocolInput Voltage RangeOutput Voltage RangeOutput QuantityIP Rating
N/ATotal monitoringModbusRTU100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20
N/ATotal monitoring Unit monitoringModbusRTU100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20
N/ATotal monitoring Unit controlModbusRTU100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20
N/ATotal monitoring Unit control Unit monitoringModbusRTU100-277VAC / 312VAC-418VAC or 100VDC-240VDC / -43VDC- -56VDCNominal: 220/250/380VAC or -48/240VDCUp to 48 outputsIP20

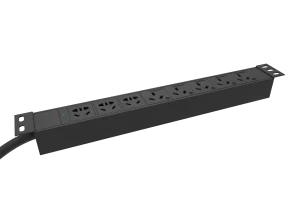

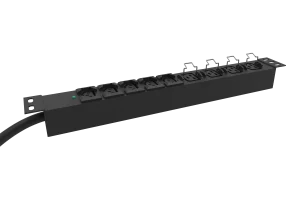

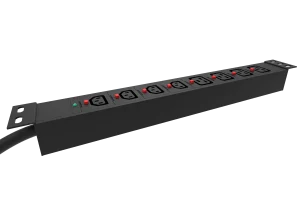

SOETECK Basic PDU -4SOETECK Basic PDU -1SOETECK Basic PDU -2SOETECK Basic PDU -3

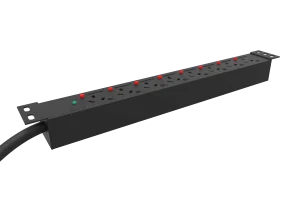

SOETECK Basic PDU, Basic Rack Power Distributon Units

The Basic PDU is a reliable power distribution unit designed for data centers and industrial environments. Featuring a 2.00mm thick profile and high-purity red copper bars, it ensures structural stability and efficient temperature control, with a temperature rise of less than 3°C. The open-type junction box …

Get QuotationView Details
