Precision Air Conditioning

Precision cooling for data centers and industrial facilities.

Precision air conditioning plays a crucial role in data centers and IT spaces. With the increasing heat load from IT equipment, standard commercial HVAC often struggles to meet the demands for efficient cooling. In today’s high-density computing environments (especially for the AI workloads), so cooling for mission-critical applications now require more reliabilities and higher efficiency.

Soeteck’s precision ac products and customizable cooling solutions can adapt flexibly to your unique requirements providing cooling capacities from 7.5kW to 300.1kW, maximizing energy efficiency and uptime. Our precision cooling systems include CRAC units (like Room Cooling, In-Row Cooling, Rack Cooling and Pumped Refrigerant Cooling) and Telecom Enclosure AC. We manufacture all types of PAC products and solutions that make your thermal management easier and keep your critical facility running without downtime.

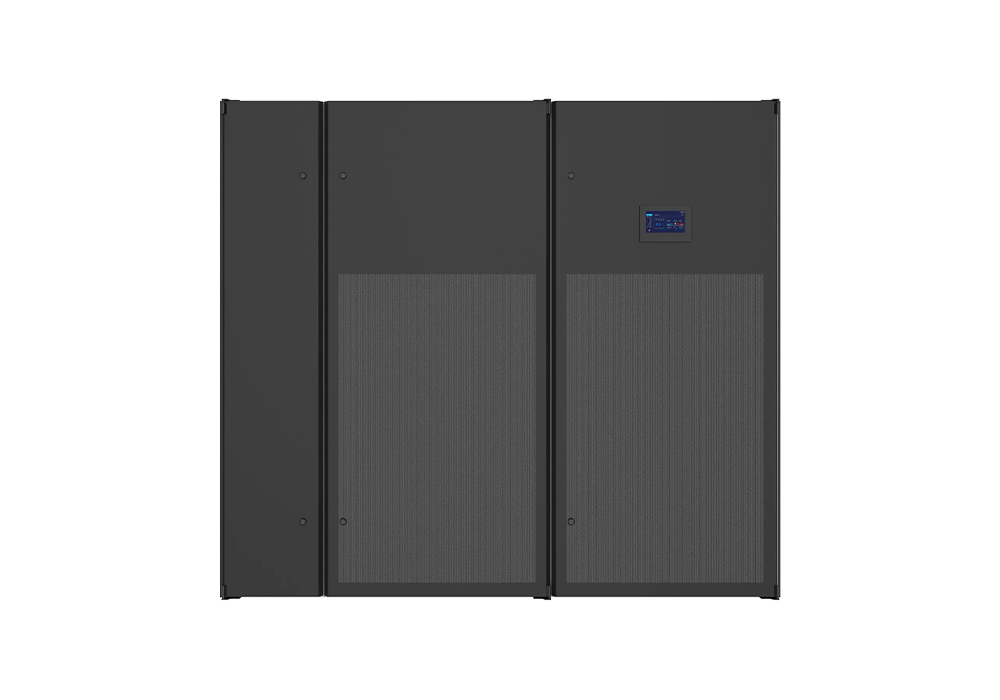

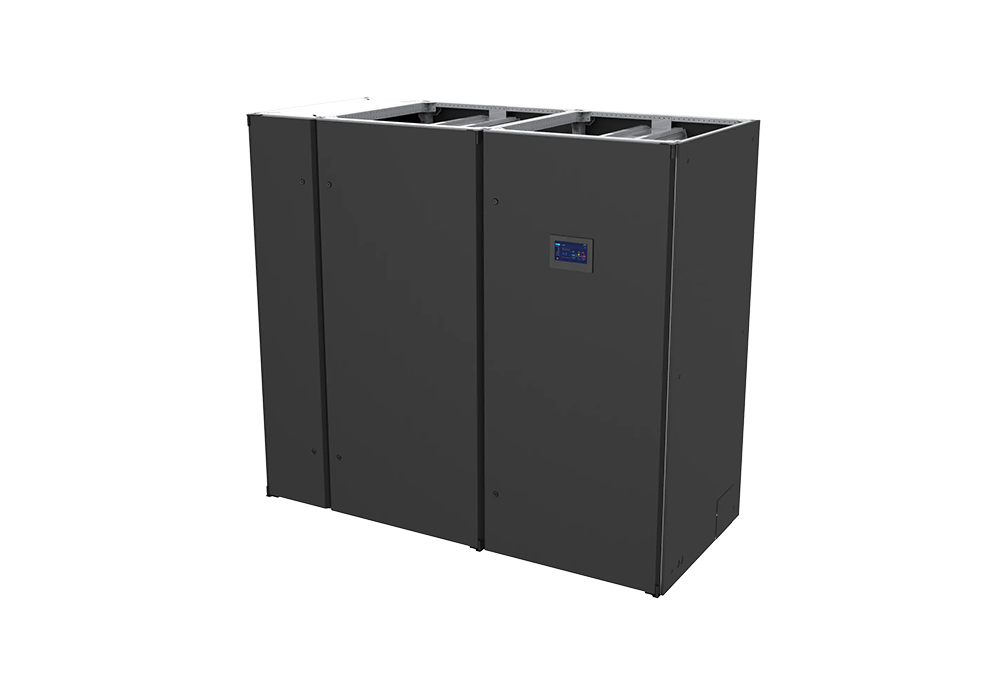

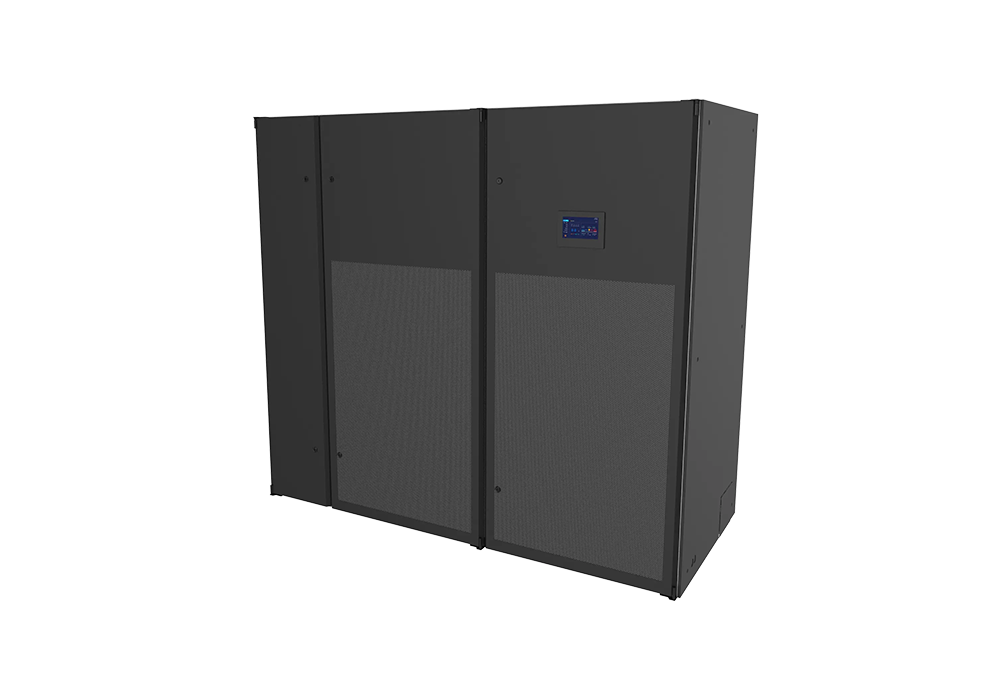

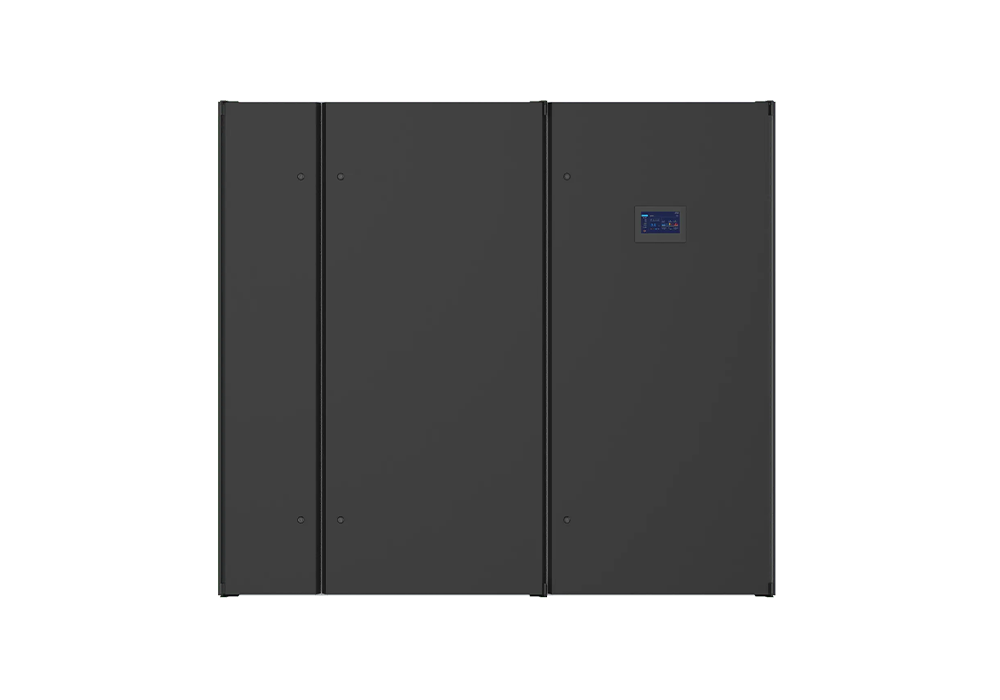

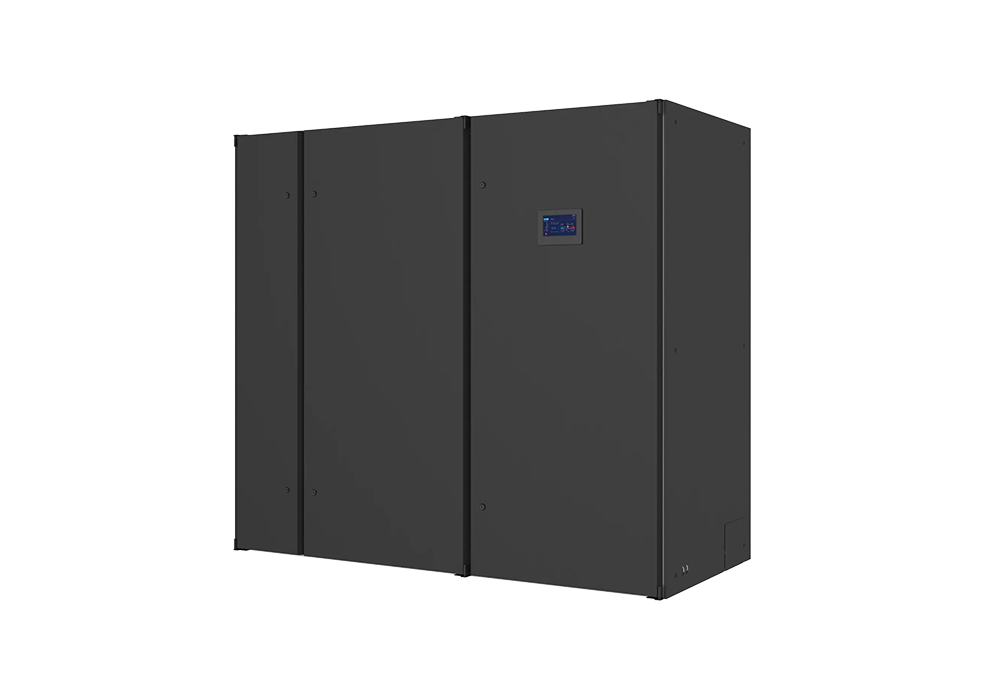

Soeteck chilled-water room cooling system, 38.2-265.8kW -7

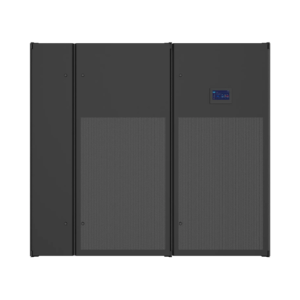

Soeteck chilled-water room cooling system, 38.2-265.8kW -1

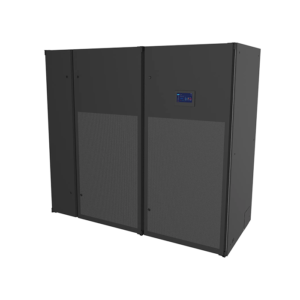

Soeteck chilled-water room cooling system, 38.2-265.8kW -2

Soeteck chilled-water room cooling system, 38.2-265.8kW -3

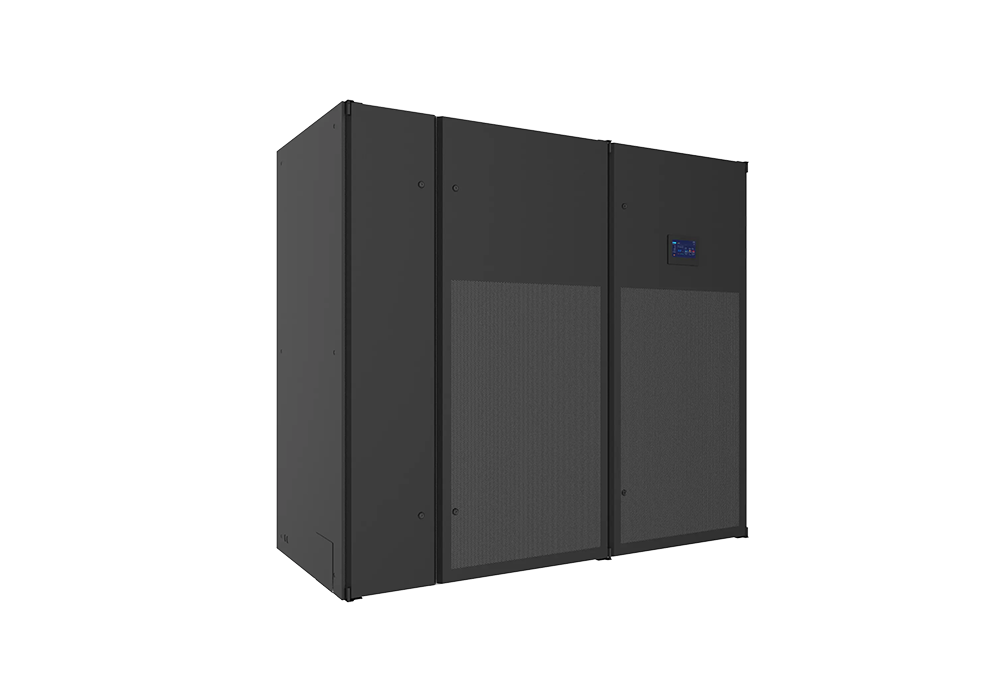

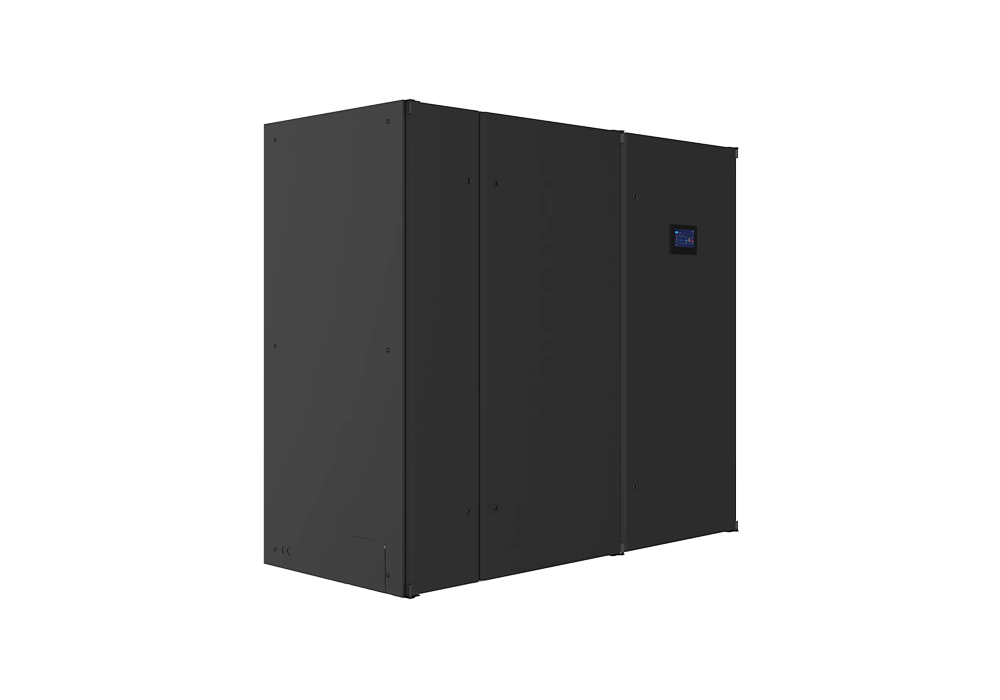

SOETECK Chilled-water Room Cooling System, 38.2kW–265.8kW Capacity

The SOETECK Room Chilled-water CW Cooling System is a high-performance solution for modern data centers and critical environments, offering a capacity range of 30kW to 200kW. It integrates advanced components like scroll compressors, EC/AC fans, and intelligent controllers for precise thermal management. Its modular design ensures …

Models	Cooling Capacity (7℃/12℃)	Cooling Capacity (10℃/15℃)	Cooling Capacity (13℃/18℃)	Air Volume	Width	Depth	Height	Weight
SY-SC30UD	38.2kW	30.2kW	24.0kW	9230m³/h	925mm	990mm	1975mm	303kg
SY-SC40UD	50.8kW	39.0kW	31.2kW	9610m³/h	925mm	990mm	1975mm	312kg
SY-SC50UD	62.8kW	48.0kW	37.8kW	10230m³/h	925mm	990mm	1975mm	333kg
SY-DC60UD	76.2kW	56.2kW	44.0kW	11260m³/h	925mm	990mm	1975mm	352kg
SY-DC70UD	89.6kW	68.8kW	54.8kW	17100m³/h	1675mm	990mm	1975mm	492kg
SY-DC80UD	100.4kW	78.0kW	62.4kW	20500m³/h	1675mm	990mm	1975mm	502kg
SY-DC90UD	113.2kW	86.4kW	68.0kW	18700m³/h	1675mm	990mm	1975mm	512kg
SY-DC100UD	124.0kW	95.2kW	75.6kW	21360m³/h	1675mm	990mm	1975mm	522kg
SY-DC110UD	137.6kW	104.8kW	83.2kW	23300m³/h	1825mm	990mm	1975mm	539kg
SY-DC120UD	147.2kW	113.5kW	99.2kW	25030m³/h	1825mm	990mm	1975mm	553kg
SY-DC130UD	159.6kW	121.2kW	95.2kW	25960m³/h	1825mm	990mm	1975mm	562kg
SY-DC140UD	177.2kW	134.0kW	104.0kW	26120m³/h	1825mm	990mm	1975mm	585kg
SY-DC150UD	184.2kW	141.0kW	111.6kW	31680m³/h	2500mm	990mm	1975mm	772kg
SY-DC160UD	199.8kW	151.8kW	120.0kW	33120m³/h	2725mm	990mm	1975mm	792kg
SY-DC170UD	208.2kW	159.6kW	126.6kW	35460m³/h	2725mm	990mm	1975mm	812kg
SY-DC180UD	221.4kW	171.0kW	135.6kW	39100m³/h	2725mm	990mm	1975mm	822kg
SY-DC190UD	233.4kW	177.6kW	139.2kW	36010m³/h	2725mm	990mm	1975mm	842kg
SY-DC200UD	265.8kW	201.0kW	156.0kW	38500m³/h	2725mm	990mm	1975mm	852kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
025RC-7/12	41.0kW	40.8kW	4800m³/h	300mm	1100mm	2000mm	190kg
025RC-10/15	36.8kW	36.8kW	4800m³/h	300mm	1100mm	2000mm	190kg
025RC-13/18	32.9kW	32.9kW	4800m³/h	300mm	1100mm	2000mm	190kg
045RC-7/12	65.4kW	65.4kW	9000m³/h	600mm	1100mm	2000mm	330kg
045RC-10/15	59.0kW	59.0kW	9000m³/h	600mm	1100mm	2000mm	330kg
045RC-13/18	52.4kW	52.4kW	9000m³/h	600mm	1100mm	2000mm	330kg
065RC-7/12	93.2kW	93.2kW	11400m³/h	600mm	1100mm	2000mm	400kg
065RC-10/15	84.0kW	84.0kW	11400m³/h	600mm	1100mm	2000mm	400kg
065RC-13/18	74.8kW	74.8kW	11400m³/h	600mm	1100mm	2000mm	400kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Pump Power	Refrigerant	Width	Depth	Height	Weight
SY-WF-012	12.5kW	12.5kW	2400m³/h	0.55kW	R410A	1000mm	650mm	2100mm	285kg
SY-WF-017	17.5kW	17.5kW	3500m³/h	0.55kW	R410A	1000mm	650mm	2100mm	320kg
SY-WF-020	21.2kW	21.2kW	4000m³/h	0.55kW	R410A	1000mm	650mm	2100mm	355kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-DC-025	28.9kW	28.9kW	4800m³/h	600mm	380mm	2000mm	120kg
SY-DC-045	46.0kW	46.0kW	9000m³/h	600mm	380mm	2000mm	230kg
SY-DC-065	65.8kW	65.8kW	11400m³/h	600mm	380mm	2000mm	240kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Pump Power	Refrigerant	Width	Depth	Height	Weight
SY-W030-U/D	32.5kW	29.3kW	8325m³/h	0.55kW	R410A	1126mm	990mm	1975mm	433kg
SY-W035-U/D	37.7kW	34.0kW	8620m³/h	0.55kW	R410A	1126mm	990mm	1975mm	438kg
SY-W040-U/D	41.8kW	38.1kW	10500m³/h	0.55kW	R410A	1326mm	990mm	1975mm	468kg
SY-W050-U/D	50.0kW	45.0kW	12400m³/h	0.55kW	R410A	1326mm	990mm	1975mm	528kg
SY-W045-U/D	43.5kW	39.2kW	10500m³/h	0.55kW	R410A	1326mm	990mm	1975mm	478kg
SY-W055-U/D	53.1kW	47.8kW	12400m³/h	0.55kW	R410A	1326mm	990mm	1975mm	568kg
SY-W065-U/D	65.1kW	58.8kW	16650m³/h	0.55kW	R410A	1826mm	990mm	1975mm	688kg
SY-W070-U/D	71.1kW	64.0kW	17240m³/h	0.55kW	R410A	1826mm	990mm	1975mm	718kg
SY-W080-U/D	83.6kW	75.3kW	21000m³/h	0.55kW	R410A	2226mm	990mm	1975mm	788kg
SY-W090-U/D	92.1kW	83.6kW	22600m³/h	0.55kW	R410A	2226mm	990mm	1975mm	866kg
SY-W0100-U/D	100.9kW	91.1kW	24800m³/h	0.55kW	R410A	2226mm	990mm	1975mm	888kg
SY-W110-U/D	110.9kW	97.1kW	26200m³/h	0.55kW	R410A	2426mm	990mm	1975mm	910kg
SY-W120-U/D	122.9kW	105.2kW	27100m³/h	0.55kW	R410A	2426mm	990mm	1975mm	980kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-DA-020	21.2kW	21.2kW	4920m³/h	600mm	380mm	2000mm	115kg
SY-DA-030	31.1kW	31.1kW	5800m³/h	600mm	380mm	2000mm	140kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-TA-002	2.5kW	2.5kW	500m³/h	600mm	1100mm	390mm(9U)	50kg
SY-TA-003	3.5kW	3.5kW	600m³/h	600mm	1100mm	390mm(9U)	55kg
SY-TA-005	5.5kW	5.5kW	1200m³/h	600mm	1100mm	521mm(12U)	65kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-JAF-003	3.5kW	3.5kW	750m³/h	483mm	828mm	266mm(6U)	31kg
SY-JAF-005	6.5kW	6.5kW	1100m³/h	483mm	828mm	355mm(8U)	43kg
SY-JAF-007	8.5kW	8.5kW	1200m³/h	483mm	828mm	445mm(10U)	52kg
SY-JAF-012	12.5kW	12.5kW	2400m³/h	483mm	828mm	533mm(12U)	70kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
S005PA	5.6kW	5.6kW	2000m³/h	300mm	1200mm	2000mm	210kg
S007PA	7.6kW	7.6kW	2250m³/h	300mm	1200mm	2000mm	213kg
S010PA	10.8kW	10.8kW	2500m³/h	300mm	1200mm	2000mm	233kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
007RA	7.5kW	7.5kW	2300m³/h	300mm	1100mm	2000mm	213kg
012RA	12.6kW	12.6kW	2500m³/h	300mm	1100mm	2000mm	233kg
017RA	17.8kW	17.8kW	4500m³/h	300mm	1100mm	2000mm	253kg
020RA	21.5kW	21.5kW	4920m³/h	300mm	1100mm	2000mm	258kg
025RA	25.5kW	25.5kW	5100m³/h	300mm	1100mm	2000mm	260kg
030RA	31.5kW	31.5kW	6000m³/h	300mm	1100mm	2000mm	320kg
040RA	41.5kW	41.5kW	8100m³/h	600mm	1100mm	2000mm	360kg
050RA	50.5kW	50.5kW	10200m³/h	600mm	1100mm	2000mm	420kg
065RA	65.5kW	65.5kW	12100m³/h	600mm	1100mm	2000mm	460kg
075RA	75.5kW	75.5kW	13600m³/h	900mm	1100mm	2000mm	540kg
090RA	90.5kW	90.5kW	16200m³/h	900mm	1100mm	2000mm	620kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Water Flow Rate	Width	Depth	Height
SY-1500RH	150.10kW	150.10kW	35000m³/h	21.51m³/h	2400	1100	2150
SY-2000RH	200.10kW	200.10kW	40000m³/h	28.68m³/h	2400	1100	2150
SY-2500RH	250.10kW	250.10kW	49000m³/h	35.84m³/h	3000	1100	2150
SY-3000RH	300.10kW	300.10kW	56000m³/h	43.01m³/h	3000	1100	2150

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-MA07UD	7.5kW	6.8kW	2250m³/h	550mm	450mm	1750mm	128kg
SY-MA12UD	12.5kW	11.3kW	2850m³/h	650mm	450mm	1850mm	178kg
SY-MA17UD	17.5kW	15.9kW	5000m³/h	750mm	700mm	1900mm	300kg
SY-MA20UD	21.2kW	19.1kW	6200m³/h	750mm	700mm	1900mm	318kg
SY-MA25UD	27.5kW	25.0kW	6700m³/h	850mm	700mm	1900mm	338kg

Models	Fan Type	Fan Count	Width	Depth	Height	Weight
SY-RCM-DJES45	EC	1	1050mm	1200mm	1620mm	221.0kg
SY-RCM-DJES52	EC	1	1050mm	1200mm	1620mm	222.0kg
SY-RCM-DJES58	EC	1	1050mm	1200mm	1620mm	240.0kg
SY-RCM-DJES66	EC	1	1050mm	1200mm	1620mm	244.0kg
SY-RCM-DJES74	EC	1	1050mm	1200mm	1620mm	248.0kg
SY-RCM-DJES83	EC	1	1050mm	1200mm	1620mm	264.0kg
SY-RCM-DJES89	EC	1	1050mm	1200mm	1620mm	265.0kg
SY-RCM-DJES96	EC	1	1050mm	1200mm	1620mm	267.0kg
SY-RCM-DJES112	EC	2	1050mm	2200mm	1620mm	325.0kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Pump Power	Refrigerant	Width	Depth	Height	Weight
SY-RF012	12.8kW	12.8kW	2400m³/h	0.55kW	N/A	300mm	1100mm	2000mm	233kg
SY-RF017	17.6kW	17.6kW	4500m³/h	0.55kW	N/A	300mm	1100mm	2000mm	253kg
SY-RF020	21.2kW	21.2kW	4920m³/h	0.55kW	N/A	300mm	1100mm	2000mm	258kg
SY-RF025	25.1kW	25.1kW	5000m³/h	0.55kW	N/A	300mm	1100mm	2000mm	260kg
SY-RF030	31.1kW	31.1kW	5800m³/h	0.55kW	N/A	300mm	1100mm	2000mm	320kg
SY-RF040	40.9kW	40.9kW	8000m³/h	0.55kW	N/A	600mm	1100mm	2000mm	360kg
SY-RF050	51.2kW	51.2kW	10000m³/h	0.55kW	N/A	600mm	1100mm	2000mm	420kg
SY-RF065	65.7kW	65.7kW	12000m³/h	0.55kW	N/A	600mm	1100mm	2000mm	460kg
SY-RF075	76.8kW	76.8kW	13500m³/h	0.55kW	N/A	600mm	1100mm	2000mm	540kg
SY-RF090	90.1kW	90.1kW	16000m³/h	0.55kW	N/A	600mm	1100mm	2000mm	620kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-SW30UD	32.5kW	29.3kW	8325m³/h	1126mm	990mm	1975mm	433kg
SY-SW35UD	37.7kW	34.0kW	8620m³/h	1126mm	990mm	1975mm	438kg
SY-SW40UD	41.8kW	38.1kW	10500m³/h	1326mm	990mm	1975mm	468kg
SY-SW50UD	50.0kW	45.0kW	12400m³/h	1326mm	990mm	1975mm	528kg
SY-DW45UD	43.5kW	39.2kW	10500m³/h	1326mm	990mm	1975mm	478kg
SY-DW55UD	53.1kW	47.8kW	12400m³/h	1826mm	990mm	1975mm	568kg
SY-DW65UD	65.1kW	58.8kW	16650m³/h	1826mm	990mm	1975mm	688kg
SY-DW70UD	71.1kW	64.0kW	17240m³/h	2226mm	990mm	1975mm	718kg
SY-DW8OUD	83.6kW	75.3kW	21000m³/h	2226mm	990mm	1975mm	788kg
SY-DW9OUD	92.1kW	83.6kW	22600m³/h	2426mm	990mm	1975mm	866kg
SY-DW100UD	100.9kW	91.1kW	24800m³/h	2426mm	990mm	1975mm	888kg
SY-DW110UD	110.9kW	97.1kW	26200m³/h	2426mm	990mm	1975mm	910kg
SY-DW120UD	122.9kW	105.2kW	27100m³/h	2426mm	990mm	1975mm	980kg

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-SA30UD	32.5kW	29.3kW	8325m³/h	1126mm	990mm	1795mm	433kg
SY-SA35UD	37.7kW	34.0kW	8620m³/h	1126mm	990mm	1795mm	438kg
SY-SA40UD	41.8kW	38.1kW	10500m³/h	1326mm	990mm	1795mm	468kg
SY-SA50UD	50.0kW	45.0kW	12400m³/h	1326mm	990mm	1795mm	528kg
SY-DA45UD	43.5kW	39.2kW	10500m³/h	1326mm	990mm	1795mm	478kg
SY-DA55UD	53.1kW	47.8kW	12400m³/h	1326mm	990mm	1795mm	568kg
SY-DA65UD	65.1kW	58.8kW	17240m³/h	1826mm	990mm	1795mm	688kg
SY-DA70UD	71.1kW	64.0kW	16650m³/h	1826mm	990mm	1795mm	718kg
SY-DA80UD	83.6kW	75.3kW	21000m³/h	2226mm	990mm	1795mm	788kg
SY-DA90UD	92.1kW	83.6kW	22600m³/h	2226mm	990mm	1795mm	866kg
SY-DA100UD	100.9kW	91.1kW	24800m³/h	2226mm	990mm	1795mm	888kg
SY-DA110UD	110.9kW	97.1kW	26200m³/h	2426mm	990mm	1795mm	910kg
SY-DA120UD	122.9kW	105.2kW	27100m³/h	2426mm	990mm	1795mm	980kg
