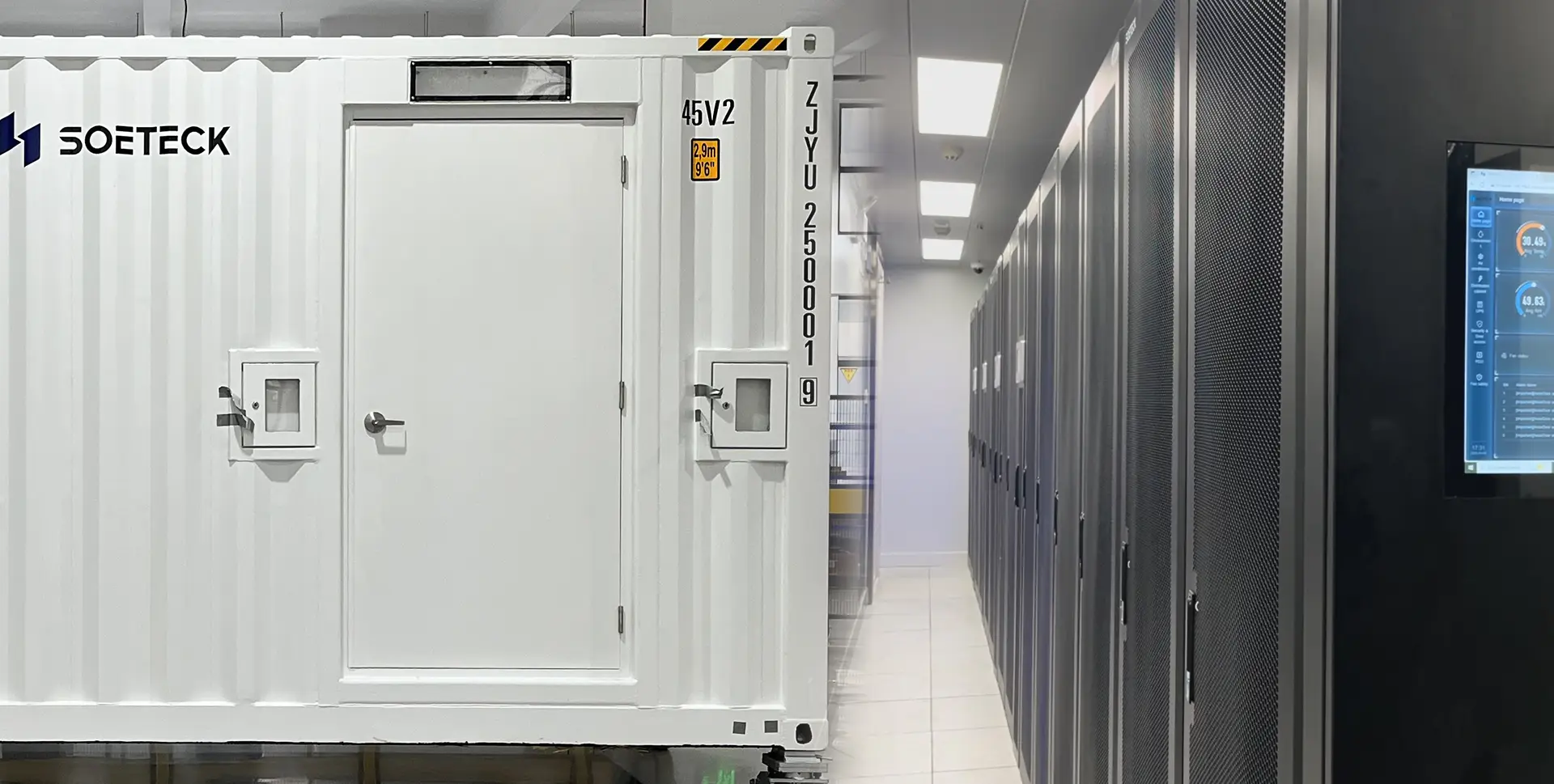

Prefabricated container data center project

Prefabricated Container Data Center

Containerized Data Centers, Delivered Fast

Container data centers get compute in place faster than a conventional build does. Because the architecture is prefabricated and modular, a deployment can be sized and customized for the site, then adapted as needs change.

SOETECK's prefabricated containerized data centers keep operating costs down through tighter power management and thermal control. Units are flexible and scalable, and because we engineer each one with the customer, it is shaped to the actual workload rather than a generic spec.

For SMBs this approach is also cost-effective: our service-led model lets us beat Huawei on price without sacrificing support. When a project grows, our supply chain still handles large-scale builds. See the DR project for Saudi Telecom, where we refined the design in close dialogue with the client.

Prefab modular data center project video preview
GET BROCHURECONTACT US

Inside the Container Data Center

1 - A typical design of PCDCs

Typical design of a prefabricated container data center

The containerized data center provides an integrated solution for power distribution, cooling management, fire safety, and structured cabling. It is designed to offer safety, reliability, and efficiency in a compact format.

Key Features:

  • Safety and Reliability: Built to high safety standards with multiple protective measures, including fire resistance, water resistance, and enhanced security features.
  • Rapid Deployment: The design enables quick setup and installation, allowing for operational readiness in a short timeframe.
  • Flexible Scalability: Modular architecture supports easy expansion to accommodate changing requirements.
  • High Density and Efficiency: Efficient use of space allows for high computing power while minimizing resource consumption.
  • Intelligent Management: Equipped with monitoring and management systems for effective oversight and maintenance.

2 - Meet with two typical models

SOETECK prefabricated container data centers come in various sizes to accommodate differing business needs. Here, we introduce two typical dimensions: the 20-foot and the 40-foot containers, each designed to deliver efficient and flexible computing solutions.

20ft container data center

20ft container data center
Full View

The 20-foot container data center is a compact solution ideal for businesses with moderate computing requirements. Its small footprint allows for easy deployment in both urban and remote locations.

Front View
Front View
Responsible for bringing in or expelling outdoor air, providing cooling and ventilation.
Serves as the area where hot air expelled from server equipment is concentrated.
The server faces the cold aisle, allowing cold air to flow directly to the equipment.
Monitors and detects potential fire hazards.

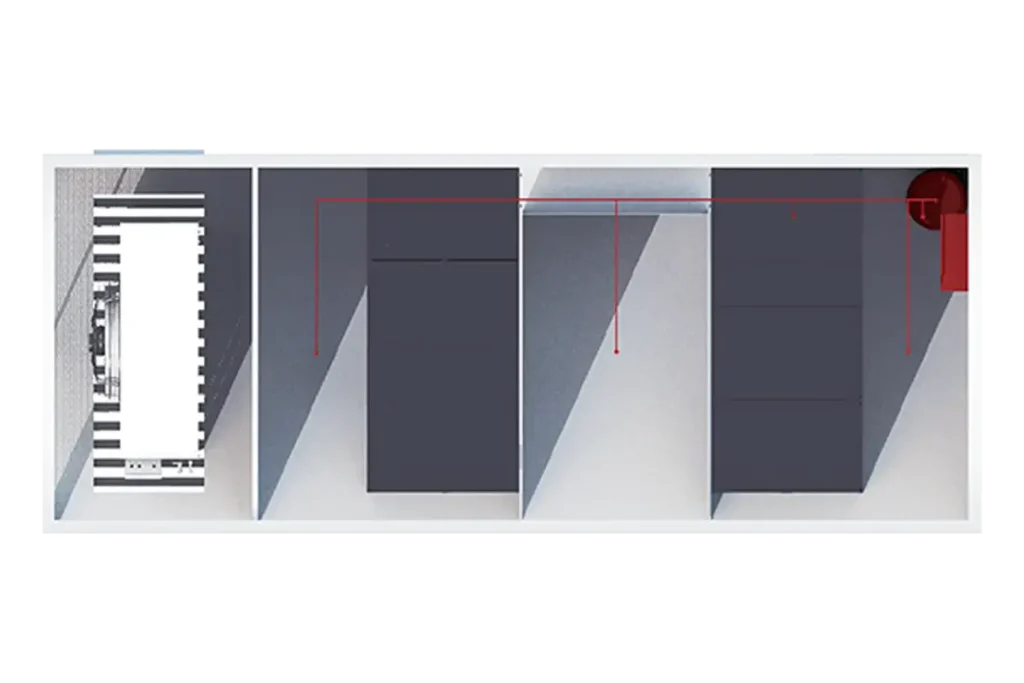

Top View
Top View
Used to house and protect servers and other IT equipment.
Cooling units positioned directly between server racks.
Provides temporary power during outages.
Stores backup power, usually in conjunction with the UPS.

40ft container data center

40ft container data center
Full View

The 40-foot container data center is designed for larger-scale deployments, offering expanded capacity for high-density computing while maintaining the same rapid deployment benefits.

Front View
Front View
Responsible for bringing in or expelling outdoor air.
Serves as the area where hot air is concentrated.
The server faces the cold aisle.
Monitors and detects potential fire hazards.
Top View
Top View
Used to house and protect servers and other IT equipment.
Serves as the area where hot air is concentrated.
Stores backup power.

3 - Core Infrastructure Modules

The SOETECK containerized data center solution consists of several key components, including the cabinet system, thermal control system, critical power supply, security system and dynamic environment system. Here, you will find details about several core modules.

Efficient Cooling Module

Thermal Management and heat dissipation

Intelligent Power Distribution

Power supply distribution and management

Safety Protection System

Fire protection and physical security

Intelligent Monitoring System

Operational status monitoring

Critical Power

The SOETECK solution incorporates an efficient power distribution system, featuring a range of rack-mounted UPS units and custom-designed distribution modules. Customers can choose from either rack-mounted lithium batteries or lead-acid batteries to suit their needs. We also offer tailored UPS selection services, along with comprehensive distribution design and manufacturing. Furthermore, based on your required backup duration, we provide a variety of battery options, including battery packs, battery cabinets, and battery racks.

SY-M Series (150-300kVA) UPSSY-M Series (150-300kVA) UPSSY-M Series (150-300kVA) UPSSY-M Series (150-300kVA) UPS
SY-M Series (150-300kVA) UPS

Modular Online UPS with 25/30kVA power modules, scalable from 150kVA to 300kVA. Hot-swappable modules provide N+1 redundancy and true online double-conversion.

SY-M Series (400-1600kVA) UPSSY-M Series (400-1600kVA) UPSSY-M Series (400-1600kVA) UPSSY-M Series (400-1600kVA) UPS
SY-M Series (400-1600kVA) UPS

High-capacity Modular Online UPS with 100kVA power modules, scalable from 400kVA to 1600kVA. Hot-swappable modules, N+1 redundancy, and true online double-conversion.

SY-T Series (400-2000kVA) UPSSY-T Series (400-2000kVA) UPSSY-T Series (400-2000kVA) UPSSY-T Series (400-2000kVA) UPS
SY-T Series (400-2000kVA) UPS

High-frequency Online Tower UPS with 400-2000kVA capacity, PF1 efficiency, and true double-conversion technology. Designed for large-scale data center applications.

Thermal Management

SOETECK offers comprehensive cooling solutions tailored for data centers and base stations, including room-level, row-level, and rack-level precision air conditioning systems. To effectively address the cooling demands of high-density computing applications within individual cabinets, our rack-level and row-level precision air conditioning systems are designed for efficiency and cost-effectiveness.

DX Air-cooled In-Row CoolingDX Air-cooled In-Row CoolingDX Air-cooled In-Row CoolingDX Air-cooled In-Row Cooling
DX Air-cooled In-Row Cooling

DX air-cooled in-row precision cooling system with 5.6kW to 90.1kW capacity. Designed for efficient row-level thermal management in data centers.

DX Air-cooled Room CoolingDX Air-cooled Room CoolingDX Air-cooled Room CoolingDX Air-cooled Room Cooling
DX Air-cooled Room Cooling

DX air-cooled room-level precision cooling system with 32.5kW to 120kW capacity. Supports both up-flow and down-flow configurations for flexible deployment.

Packaged Rack CoolingPackaged Rack CoolingPackaged Rack CoolingPackaged Rack Cooling
Packaged Rack Cooling

Packaged rack cooling system, 3.5kW capacity, 8U height. Compact bottom or middle-mounted design with R410A refrigerant and BMS integration.

Featured Models

SY-ICDC-10SY-ICDC-20SY-ICDC-40SY-ICDC-X
ModelsSY-ICDC-10SY-ICDC-20SY-ICDC-40SY-ICDC-X
Container Size10ft HQ20ft HQ40ft HQCustomized
Rack Specification600*1100*2000600*1100*2000600*1100*2000Customized
Single Rack Capacity42U42U42UCustomized
Rack Quantity2+pcs4+pcs9+pcsCustomized
Single Rack Max. Capacity6kW6kW6kWCustomized
IT Equipment Total Capacity12+kW24+kW54+kWCustomized
Cooling PatternIn-Row Air ConditionerIn-Row Air ConditionerIn-Row Air ConditionerIn-Row Air Conditioner
UPSN+1 Modular UPSN+1 Modular UPSN+1 Modular UPSCustomized

SOETECK Prefabricated Container Data Center.pdf

Who Needs a Container Data Center?

An integration of Power, Cooling & Infrastructure Modules Supporting Reliable IT Operations – Where Modular DC Delivers Unique Value

Emergency Response

Emergency Response

Rapid deploymentSelf-sufficientDisaster-resistant

Standardized containers transport rapidly via truck, train, or helicopter, deploying in 24-48 hours.

Natural disaster recovery, emergency relief

Oil & Gas Exploration

Oil & Gas Exploration

Extreme weather proofOff-grid capableHigh Mobility

Integrated solar-diesel hybrid systems deliver fully off-grid power. The -40°C to 55°C ruggedized design with IP54 protection withstands extreme environments.

Remote drilling sites, mining operations

Large-scale Events

Large-scale Events

Event-readyScalable capacityTemporary deployment

IT capacity scales flexibly to match event size, deploying within hours on-site. Units dismantle and relocate post-event.

Sports events, festivals, conferences

Military Deployments

Military Deployments

Secure designMilitary-gradeRapid deployment

Military-grade construction withstands impacts and extreme weather. End-to-end encryption and tamper-proof physical safeguards ensure data integrity.

Field operations, military bases, defense installations

Edge Computing

Edge Computing

Low latencyEdge deploymentCloud-connected

Our containerized data centers deploy near data sources, delivering millisecond response times and reducing remote data transfers by 90%.

IoT networks, smart cities, industrial edge

Data Center Expansion

Data Center Expansion

Plug-and-playRapid scalingNon-disruptive

Prefabricated DC containers are factory-preinstalled and ready within 1-2 weeks. They integrate seamlessly with existing data centers.

Cloud data centers, enterprise IT expansion
