Row Modular Data Center

Modular Data Centers, Built Block by Block

The SOETECK Row Modular Data Center scales the way building blocks do: you add or remove components as compute grows, and the plug-and-play setup is ready in a few hours rather than weeks. That makes it a practical answer when capacity needs to move quickly.

Each row is built for reliability. An IP55 enclosure keeps out dust and moisture, intelligent monitoring tracks temperature, humidity, and power, and high-efficiency UPS plus thermal management hold PUE to 1.2 or lower.

The design is in service across finance, healthcare, manufacturing, and education. Against a conventional build it lowers construction cost by 30%, shortens installation by 90%, and uses up to 80% less space, with a unified platform handling remote monitoring and control.

GET BROCHURE CONTACT US

Inside the Row Modular Data Center

1 - Two Typical Units of RMDC

SOETECK row modular data center solutions deliver integrated, efficient, and reliable options tailored for modern IT deployments. These solutions can be composed of either single cabinets with in-row cooling systems or single cabinets with integrated rack-mounted cooling units, providing flexibility to accommodate a wide range of applications. Designed to ensure optimal performance and security for critical infrastructure, SOETECK offers tailored configurations to meet diverse customer needs.

Key Features:

Safety and Reliability: Constructed to high safety standards, our cabinets feature robust fire resistance, water resistance, and advanced security measures, including a multi-faceted access control system for enhanced protection.
Rapid Deployment: The modular architecture facilitates quick setup and installation, enabling businesses to achieve operational readiness within a short timeframe.
Flexible Scalability: Our solutions support easy expansion to meet evolving demands, allowing organizations to scale up seamlessly as their needs grow.
High Density and Efficiency: The design maximizes space utilization for high computing power, supporting configurations of up to 20kW per cabinet while minimizing energy consumption for operational efficiency.
Intelligent Management: Equipped with comprehensive monitoring and management systems, our data centers provide effective oversight and maintenance capabilities, ensuring reliable operations through real-time alerts and fault localization.

2 - Build Your Data Center Like LEGO

At SOETECK, we believe in the power of modularity. Our row modular data center solutions allow you to build and expand your infrastructure effortlessly, much like assembling with LEGO bricks. Each component can be easily added or modified to fit your evolving needs.

Evolve from Rack-Cooling Cabinet DC

The integrated rack cooling cabinet-based row modular data center provides a compact solution optimized for energy efficiency. With cooling capacities from 3.5 kW to 90 kW, it can handle high-power applications effectively. Featuring advanced security measures and comprehensive monitoring capabilities, this design ensures a secure and resilient operational environment.

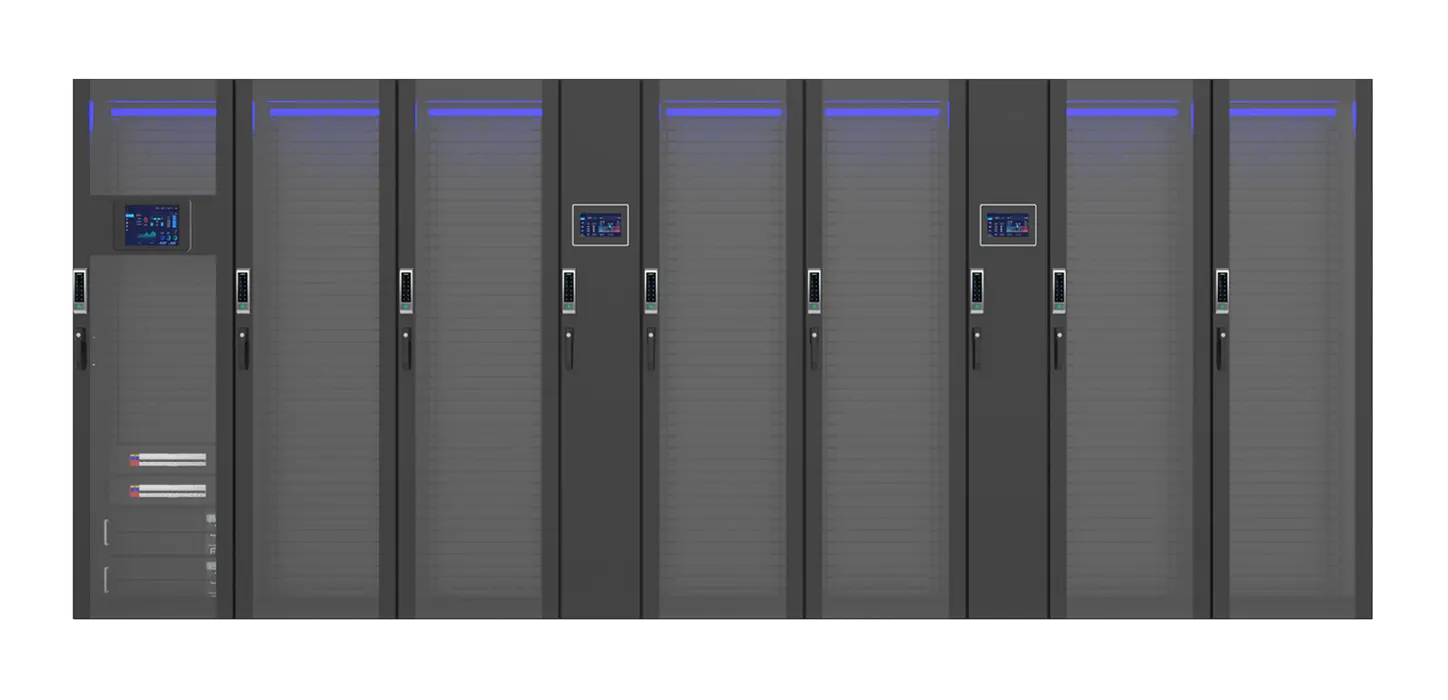

Evolve from In-Row-Cooling Cabinet DC

The in-row cooling cabinet-based row modular data center supports high-density deployments with power capacities up to 20 kW per cabinet. Its modular design allows for easy scalability, adapting effortlessly to business growth. With IP55 protection and real-time monitoring, it enhances operational efficiency while minimizing energy consumption.

Our row modular data center solutions are designed with advanced modularity and flexibility in mind. Each cabinet incorporates expandable monitoring systems that communicate via bus-level protocols, allowing for seamless integration of additional critical equipment in the future. The modular cooling options offer various capacities, from 3.5 kW to 12 kW for rack cooling and 5 kW to 90 kW for row cooling, ensuring efficient thermal management. Additionally, the power system is modular, ranging from 3 kVA to 200 kVA, so you can easily adapt and expand your power capabilities as needed. With features like IP55 protection against dust and water and a robust design for high-density deployments of up to 20 kW per cabinet, your data center will maintain security, reliability, and efficiency as it grows.

3 - Core Infrastructure Modules

The SOETECK row modular data center solution consists of several key components, including the cabinet system, thermal control system, critical power supply, security system and dynamic environment system.

Efficient Cooling Module

Thermal Management and heat dissipation

Intelligent Power Distribution

Power supply distribution and management

Safety Protection System

Fire protection and physical security

Intelligent Monitoring System

Operational status monitoring

Critical Power

The SOETECK row modular data center solution incorporates an efficient power distribution system, featuring a range of rack-mounted UPS units and custom-designed distribution modules. Customers can choose from either rack-mounted lithium batteries or lead-acid batteries to suit their needs. We also offer tailored UPS selection services, along with comprehensive distribution design and manufacturing.

SY-RT Series (1-3kVA) UPS

The SY-RT Series UPS, 1-3kVA, delivers reliable online double-conversion protection with PF1 output, wide input voltage range of 110-300VAC, and compact rack/tower design. It achieves 96% efficiency in ECO mode with 0ms transfer time.

SY-RT Series (1-10kVA) UPS

The SOETECK SY-RT Winner Pro Series UPS, 1-10kVA, offers reliable online protection with PF0.9 output, wide input voltage range, and flexible rack/tower mounting for versatile deployment in row modular data center applications.

SY-RT Series (1-10kVA) UPS

The SY-RT Series UPS, 1-10kVA, offers reliable online UPS protection with PF0.8, up to 93% efficiency, and flexible rack/tower mounting for versatile deployment. Ideal for protecting critical equipment in data center and enterprise environments.

Thermal Management

SOETECK offers comprehensive cooling solutions tailored for data centers and base stations, including room-level, row-level, and rack-level precision air conditioning systems. To effectively address the cooling demands of high-density computing applications within individual cabinets, our rack-level and row-level precision air conditioning systems are designed for efficiency and cost-effectiveness.

DX Air-cooled In-Row Cooling

In-row precision cooling system for efficient row-level thermal management.

DX Air-cooled Room Cooling

Room-level precision cooling with up/down flow configurations.

Packaged Rack Cooling

Compact rack cooling system with R410A refrigerant and BMS integration.

Featured Models

Models	SY-RMDC-03	SY-RMDC-06	SY-RMDC-10	Customized
Cooling Type	Rack-mounted AC	In-Row AC	In-Row AC	Customized
Max Cooling Capacity	3.5 kW	6.5 kW	12.5 kW	Customized
UPS Capacity	3 kVA	6 kVA	10 kVA	3-20 kVA
Cabinet Quantity	1-3	3-6	6-10	Customized
Redundancy	N	N	N	N, N+1, 2N
Protection Rating	IP5X	IP5X	IP55	Customized
Monitoring	Touchscreen	Touchscreen	Touchscreen + Remote	Customized

SOETECK Row Modular Data Center Solution.pdf

Who Needs a Row Modular Data Center?

Application Scenarios: An integration of Power, Cooling & Infrastructure Modules Supporting Reliable IT Operations – Where Row Modular DC Delivers Unique Value

Small Server Rooms

Compact designIntegrated monitoringGradual expansion

Our compact design maximizes space use. An integrated monitoring system centralizes device management to cut manual work. Supporting gradual expansion from a few cabinets, it avoids large upfront investments.

Enterprise IT rooms, branch offices

Edge Computing Sites

Wide-temp designRemote monitoringEnergy efficient

Our wide-temperature design ensures stability between -10℃ and 40℃. Built-in remote monitoring enables unmanned operation. Optimized cooling cuts energy use by 30% and supports solar power.

Remote drilling sites, mining operations

Data Center Expansion

Plug-and-playParallel expansionAuto-balancing

Factory-prefabricated modules enable plug-and-play deployment, slashing setup time by over 70%. Parallel expansion avoids disrupting existing operations.

Cloud data centers, enterprise IT expansion

Multi-branch Offices

Multi-level alarmsRemote platformRedundant design

Comprehensive monitoring triggers multi-level alarms for abnormalities. Remote platforms handle most daily management and troubleshooting.

Bank branches, retail chains

Temporary Events

Hour-level setupSelf-containedReusable

Modular design allows system setup within hours. Integrated power and cooling units operate independently of on-site infrastructure.

Exhibitions, emergency response

R&D Laboratories

Flexible modulesPre-integrated cablingStandardized interfaces

Modular components support flexible reconfiguration and mode switching for testing needs. Pre-integrated cabling keeps the environment organized.

Research labs, test facilities
