Rack Cooling

Precision cooling for data centers and industrial facilities.

The Rack Cooling system is designed for micro and modular data centers, providing an efficient air cooling solution. It uses eco-friendly R410A refrigerant with adjustable cooling capacity (3.5 to 12.0 kW) and fits standard rack structures for future expansion. This precision cooling solution monitors equipment temperatures in real-time, ensuring optimal performance.

Showing all 5 results

SOETECK DX packaged rack cooling system -2SOETECK DX packaged rack cooling system -1SOETECK DX packaged rack cooling system -3SOETECK DX packaged rack cooling system -4

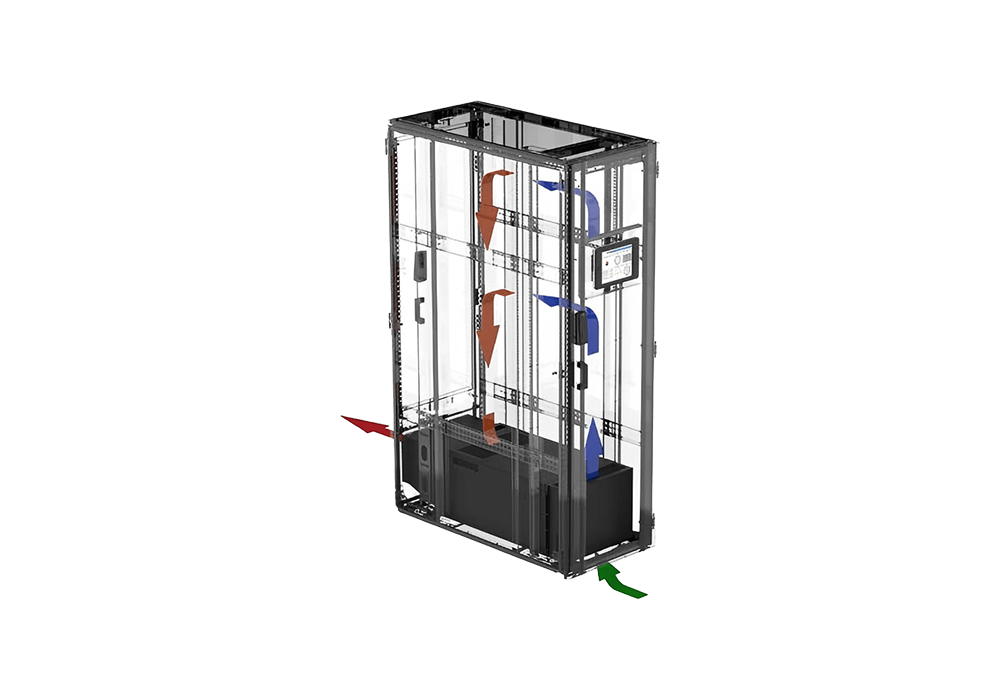

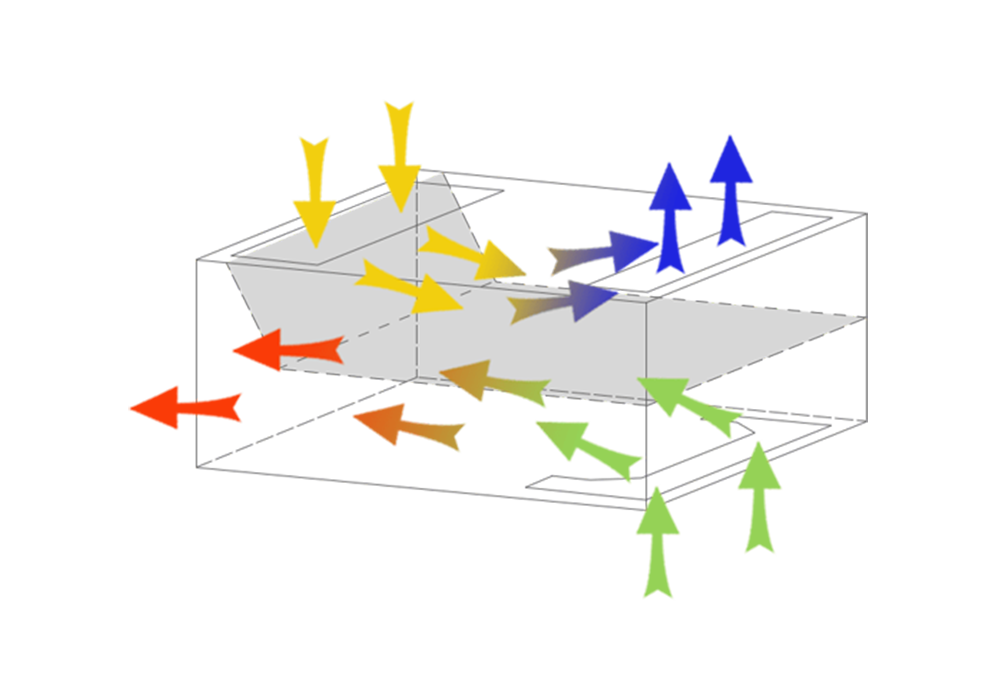

SOETECK Packaged Rack Cooling System, 3.5kW Capacity, 8U, Bottom or Middle Mounted

The SOETECK Packaged Rack Cooling System is a compact, 3.5kW air-cooled DX unit designed for bottom or middle rack mounting. Its reliable compressor, precise cooling controllers, and integration with BMS ensure optimal performance. Featuring eco-friendly R410A refrigerant and excellent airflow management, this system is ideal for …

Get QuotationView Details
ModelsCooling CapacitySensible CapacityAir VolumeWidthDepthHeightWeight
SY-JA-0033.5kW3.5kW750m³/h440mm900mm355mm(8U)45kg
SOETECK CW Rear Door Racking Cooling -3SOETECK CW Rear Door Racking Cooling -1SOETECK CW Rear Door Racking Cooling -4SOETECK CW Rear Door Racking Cooling -5

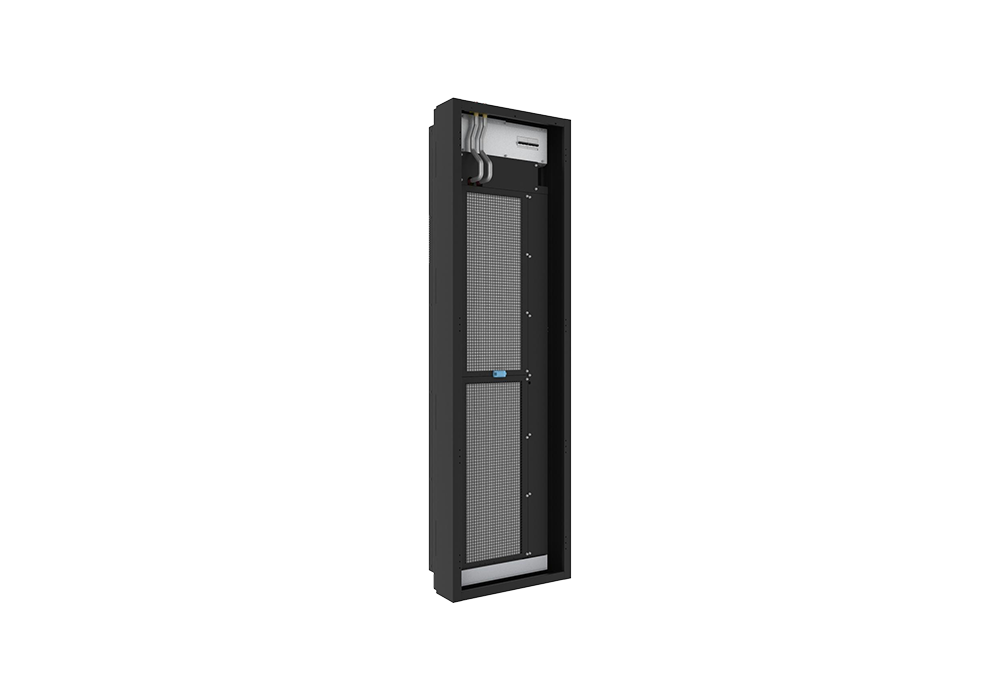

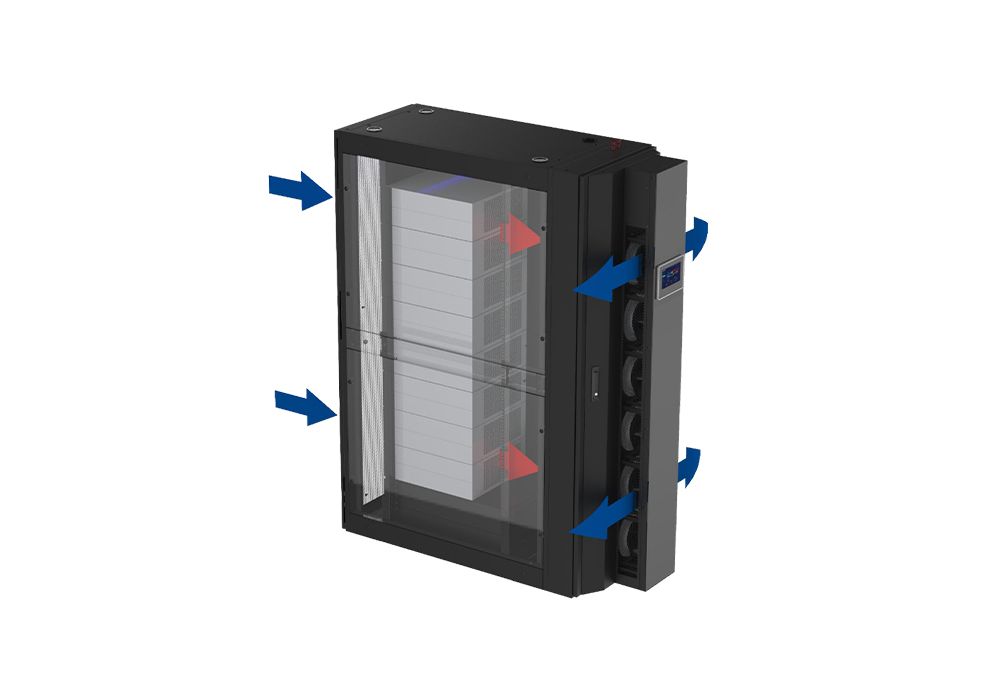

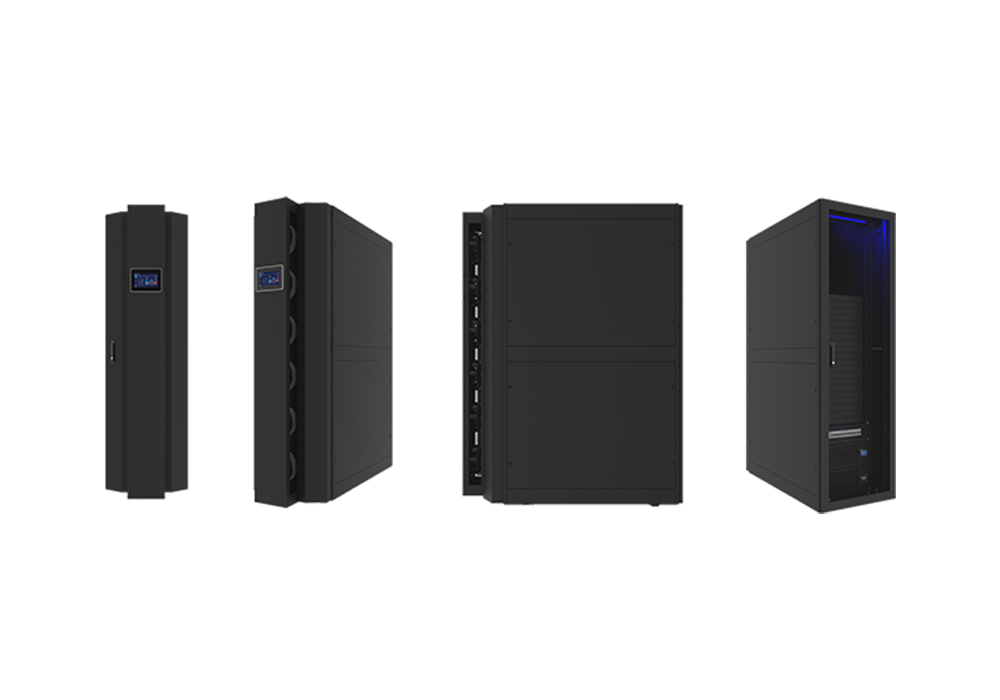

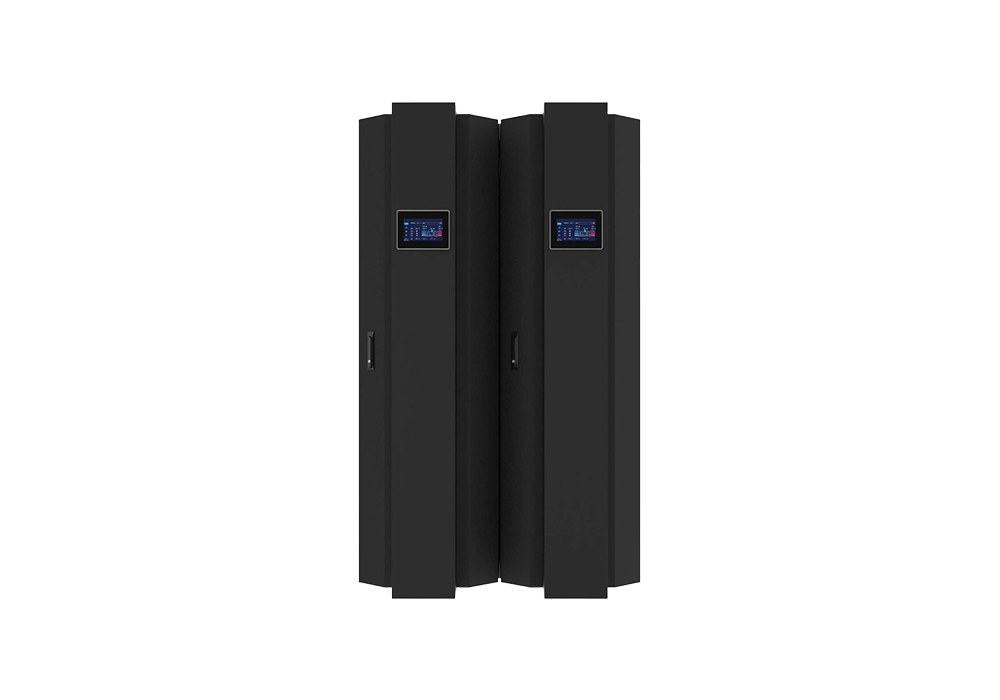

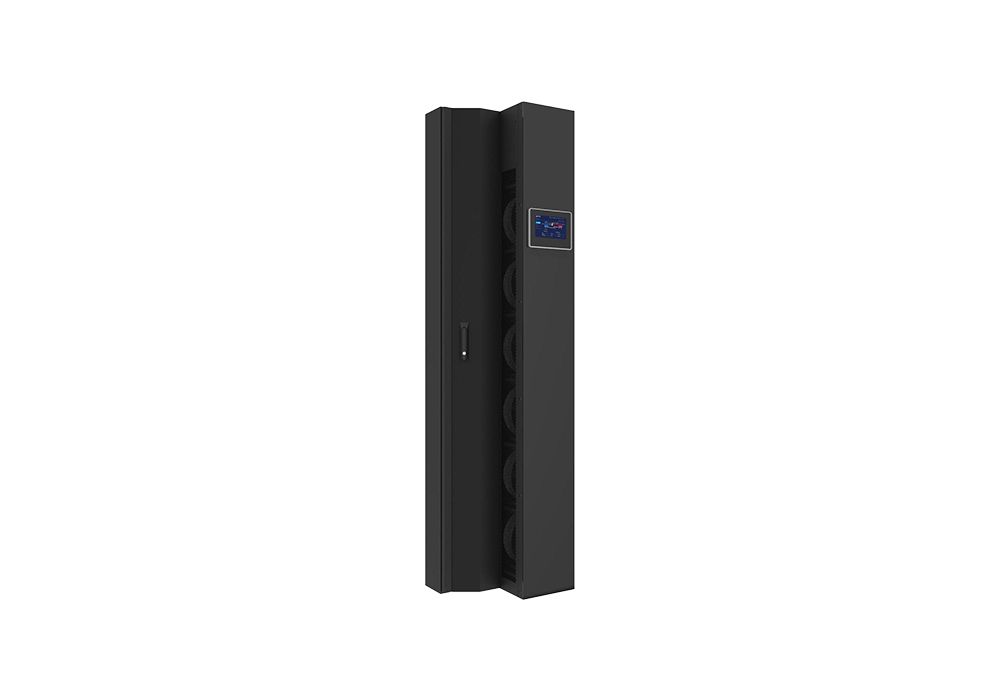

SOETECK Chilled-Water Rear Door Rack Cooling System, 28.9kW-65.8kW Capacity

The SOETECK Rear Door HEX CW Rack Cooling System offers high-efficiency cooling with a capacity range of 28.9kW to 65.8kW. Utilizing chilled water as a cooling source, this system ensures sustainable and effective heat removal in high-density data center environments. Equipped with EC fan technology and …

Get QuotationView Details
ModelsCooling CapacitySensible CapacityAir VolumeWidthDepthHeightWeight
SY-DC-02528.9kW28.9kW4800m³/h600mm380mm2000mm120kg
SY-DC-04546.0kW46.0kW9000m³/h600mm380mm2000mm230kg
SY-DC-06565.8kW65.8kW11400m³/h600mm380mm2000mm240kg
SOETECK Rear Door Rack Cooling System -2SOETECK Rear Door Rack Cooling System -4SOETECK Rear Door Rack Cooling System -5SOETECK Rear Door Rack Cooling System -6

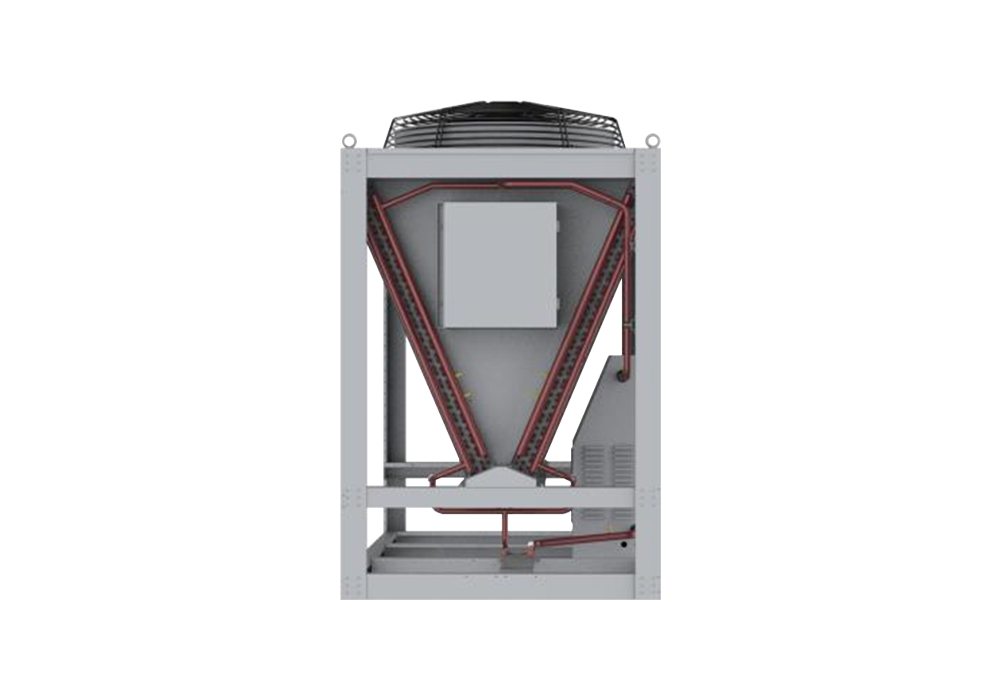

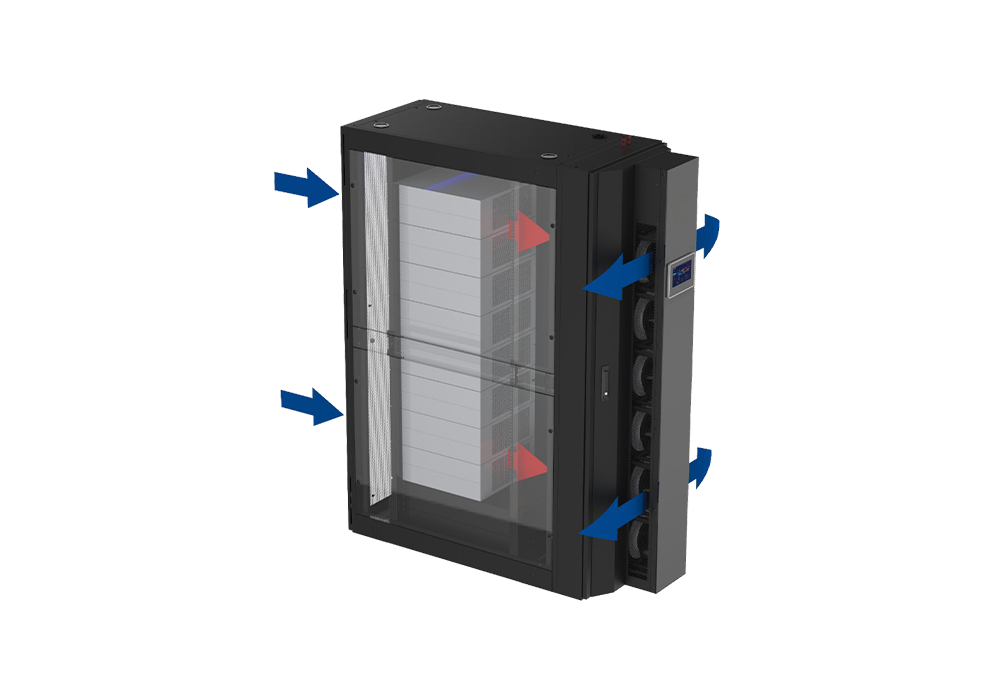

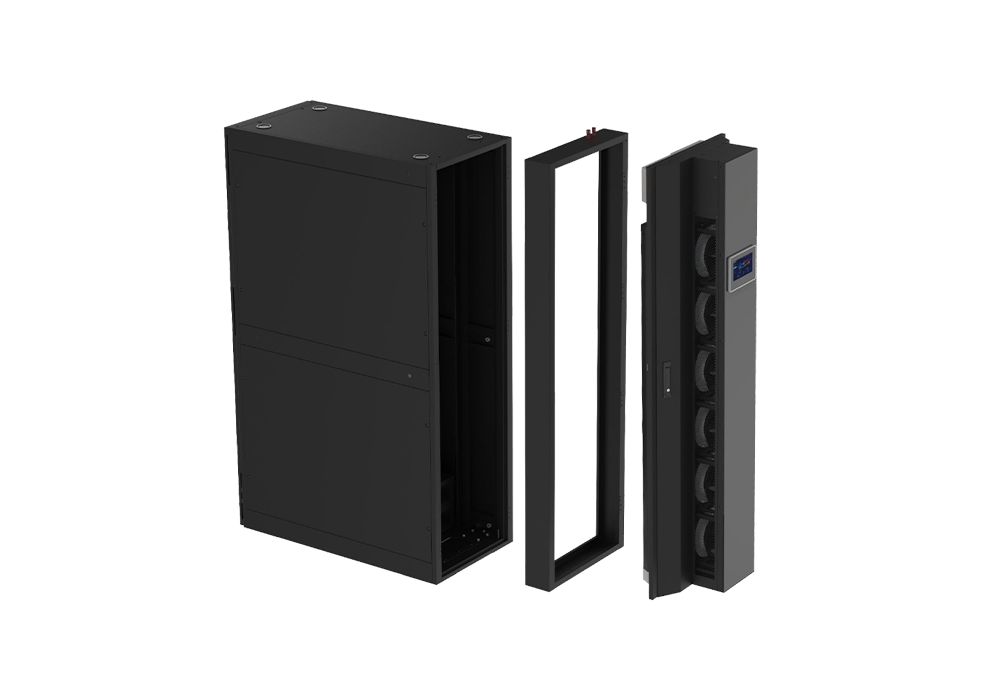

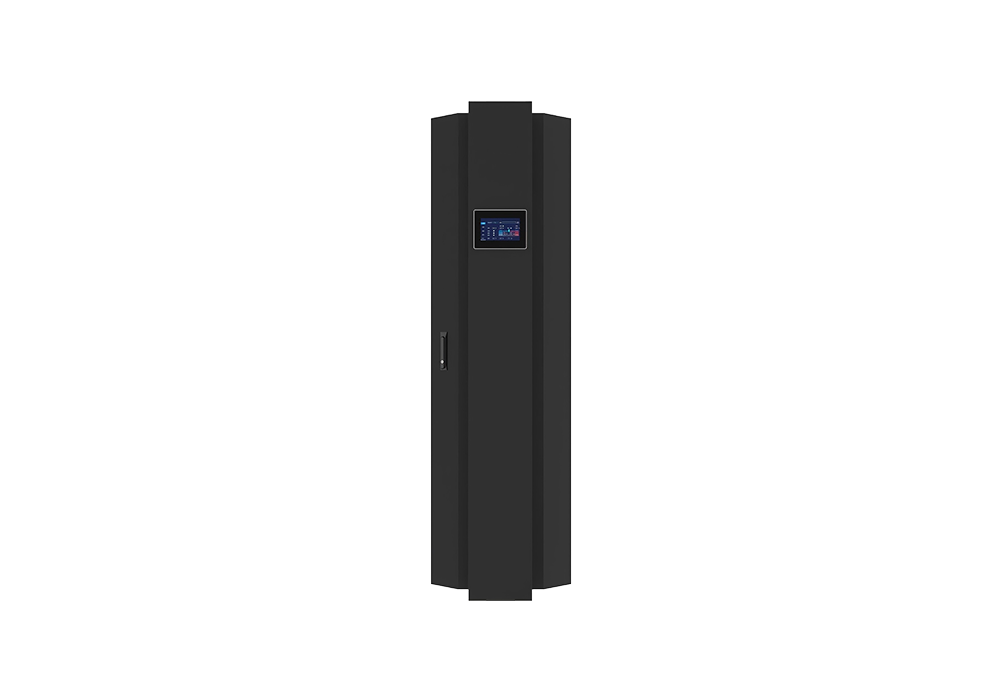

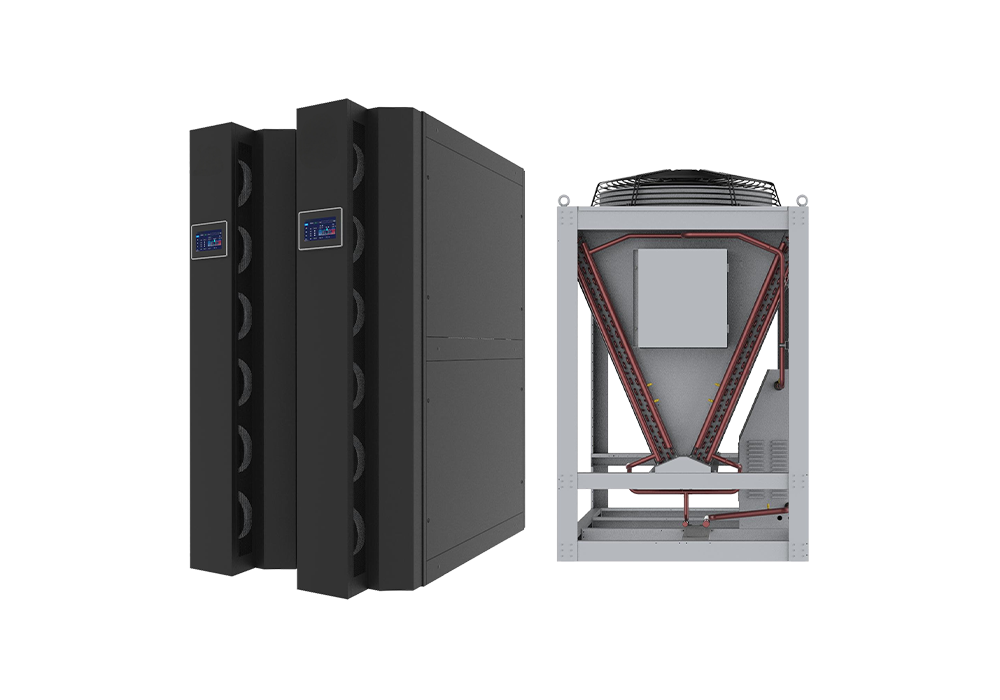

SOETECK Rear Door HEX DX Rack Cooling System, 21.2kW-31.1kW Direct Expansion Capacity

The SOETECK Rear Door HEX DX Rack Cooling System is a high-performance cooling solution offering 21kW to 31kW direct expansion (DX) capacity. Its rear door mounting design enhances energy efficiency by directly targeting the heat source. Featuring an inverter compressor, EC fan, and eco-friendly R134A refrigerant, …

Get QuotationView Details
ModelsCooling CapacitySensible CapacityAir VolumeWidthDepthHeightWeight
SY-DA-02021.2kW21.2kW4920m³/h600mm380mm2000mm115kg
SY-DA-03031.1kW31.1kW5800m³/h600mm380mm2000mm140kg
SOETECK DX top-mounted rack cooling system -3SOETECK DX top-mounted rack cooling system -4SOETECK DX top-mounted rack cooling system -1SOETECK DX top-mounted rack cooling system -5

SOETECK Top-mount Packaged Rack Cooling System, 2.5kW – 5.5kW Capacity, suitable for micro/mini modular data center

The SOETECK Top-mount Package Rack Cooling System is a flexible and efficient cooling solution for micro and mini modular data center environments, offering a capacity range of 2.5kW to 5.5kW. Featuring a top-mounted design, advanced precise cooling controllers, and eco-friendly R410A refrigerant, it ensures optimal performance …

Get QuotationView Details
ModelsCooling CapacitySensible CapacityAir VolumeWidthDepthHeightWeight
SY-TA-0022.5kW2.5kW500m³/h600mm1100mm390mm(9U)50kg
SY-TA-0033.5kW3.5kW600m³/h600mm1100mm390mm(9U)55kg
SY-TA-0055.5kW5.5kW1200m³/h600mm1100mm521mm(12U)65kg
SOETECK Rack Cooling System, 3.5kW-12.5kW -1SOETECK Rack Cooling System, 3.5kW-12.5kW -4SOETECK Rack Cooling System, 3.5kW-12.5kW -2SOETECK Rack Cooling System, 3.5kW-12.5kW -5

SOETECK Rack Cooling System, 3.5kW-12.5kW Capacity, Split-type Cooling Unit

The SOETECK Rack Cooling System is a flexible and efficient cooling solution for data center environments, with capacities ranging from 3.9kW to 12.8kW. It features an inverter compressor, EC fan, and precise cooling controllers for optimal performance and energy efficiency. Designed for noise-sensitive environments, the system …

Get QuotationView Details
ModelsCooling CapacitySensible CapacityAir VolumeWidthDepthHeightWeight
SY-JAF-0033.5kW3.5kW750m³/h483mm828mm266mm(6U)31kg
SY-JAF-0056.5kW6.5kW1100m³/h483mm828mm355mm(8U)43kg
SY-JAF-0078.5kW8.5kW1200m³/h483mm828mm445mm(10U)52kg
SY-JAF-01212.5kW12.5kW2400m³/h483mm828mm533mm(12U)70kg
