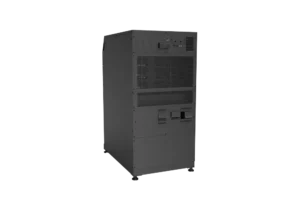

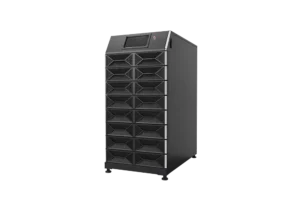

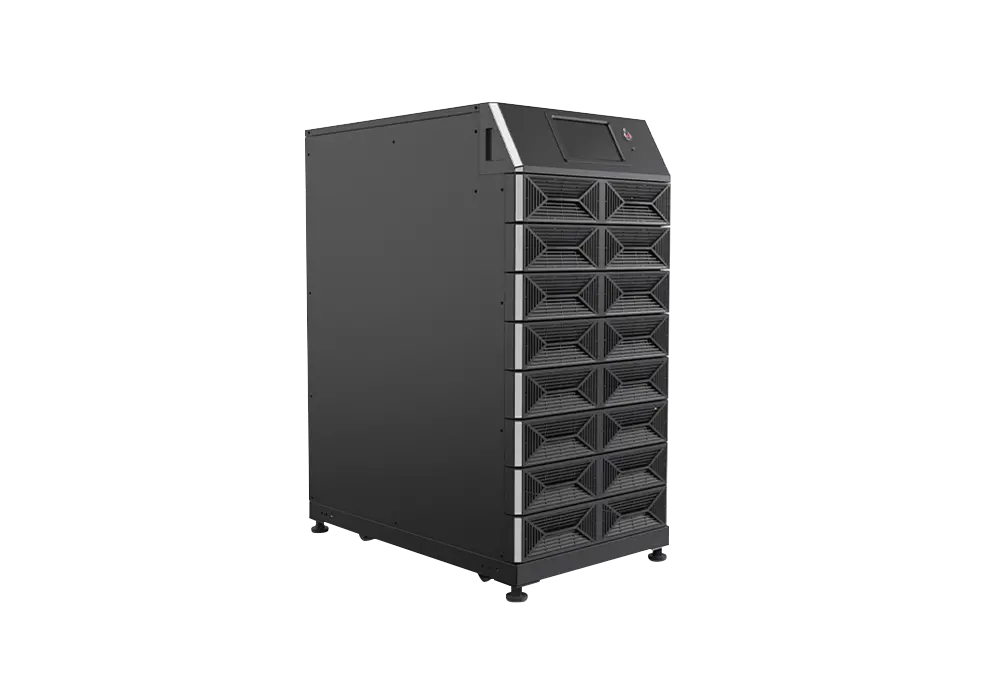

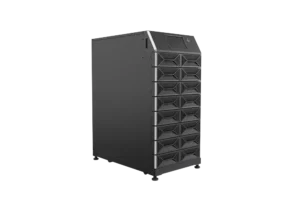

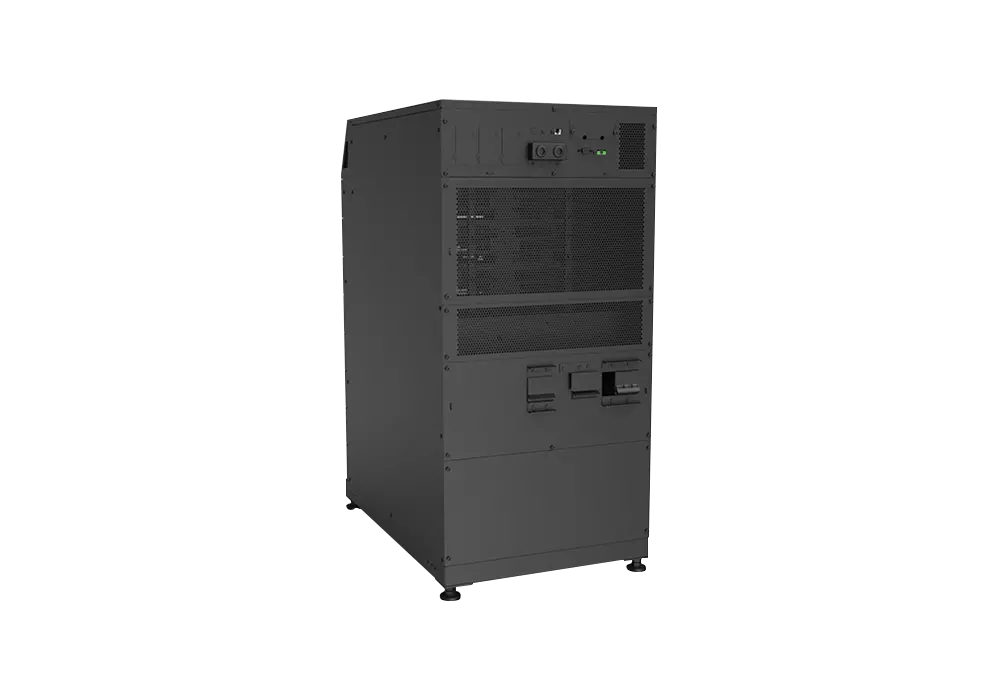

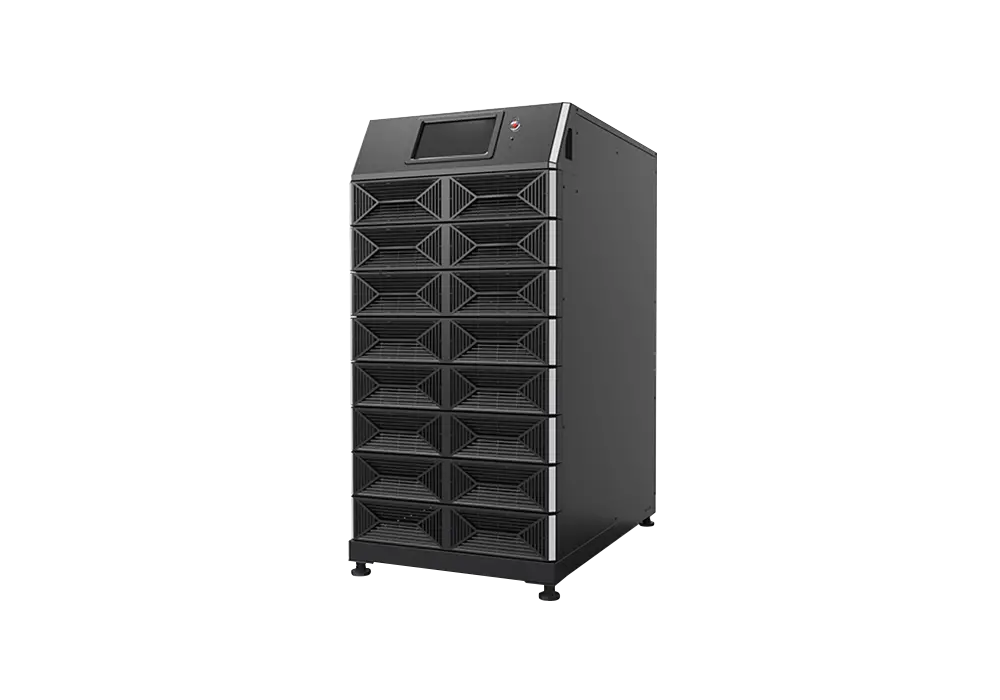

SOETECK Modular Online UPS 5kVA-20kVA, Rack & Tower Mount, 5kVA Power Module
The SOETECK SY-M Series UPS, Online Modular UPS 5kVA-20kVA provides modular, scalable power protection with 5kVA power modules and flexible rack and tower mount configurations. Designed for small to medium-sized applications, it delivers high efficiency, low THDi, and real-time monitoring with a user-friendly LCD LED interface. Perfect for data centers, telecom systems, and commercial facilities.
| UPS Structure | Online Double Conversion |
| Input Voltage | 380/400/415VAC (line voltage), 220/230/240VAC (phase voltage) |
| Input PF | >0.95 |
| Output Voltage | 220/230/240VAC |
| Output PF | >0.99 |
| Frequency | 40 - 70Hz |
| Efficiency | ≥ 94.5% |
| Wire | 3-phase N wire PE |
Product Overview
The SOETECK SY-M Series UPS, Online Modular UPS 5kVA-20kVA is a versatile, high-performance power protection solution designed for small and medium-sized applications. Featuring 5kVA modular power modules, it supports flexible rack and tower mount installations, ensuring adaptability for diverse power environments such as data centers, communication systems, and commercial offices.
Built with advanced 3-level inverter technology and DSP control, the system achieves high efficiency and reliable power management. Its modular architecture allows seamless scalability up to 20kVA, while supporting redundancy configurations to ensure continuous operation in mission-critical environments.
The SOETECK SY-M Series UPS features a user-friendly LCD LED interface for real-time system monitoring and diagnostics. Its compact design, low total harmonic distortion (THDi <3%), and excellent overload capability make it the perfect choice for applications demanding reliable, clean, and scalable power protection.
Features
Flexible Installation Options
- Supports both rack and tower mount installations
- Compact design saves valuable space for small and medium-sized facilities
Modular and Scalable Design

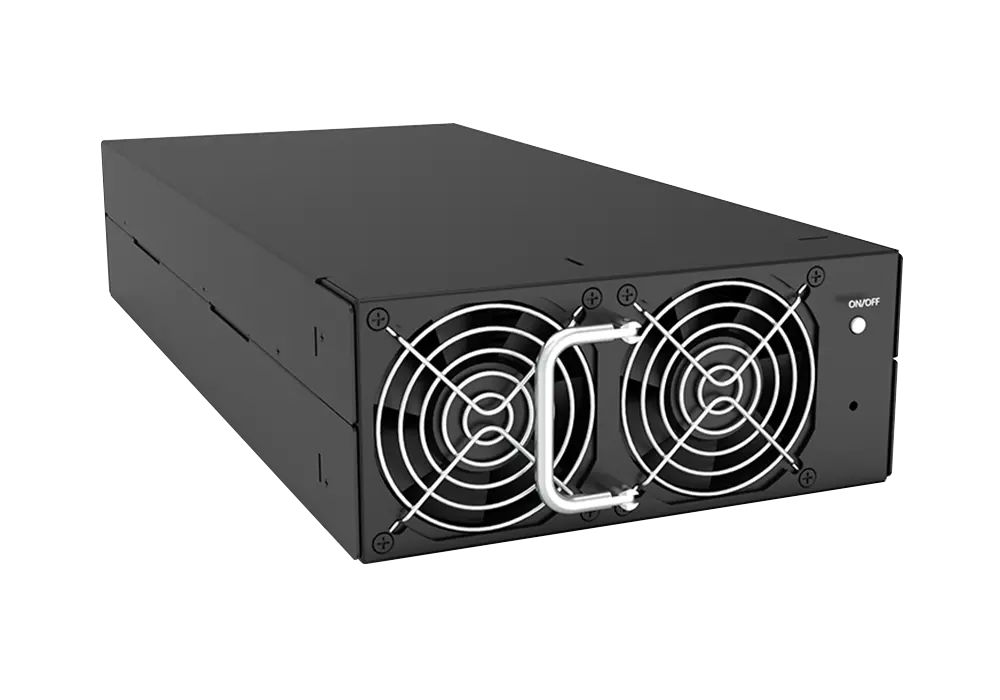

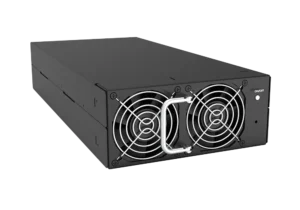

- Modular 5kVA power modules for seamless scalability up to 20kVA
- Supports N X redundancy for maximum system availability
High Efficiency and Reliability
- Advanced 3-level inverter technology and DSP control for optimized performance
- Efficiency of up to 96% reduces energy costs
- Total Harmonic Distortion (THDi): <3% ensures clean power delivery
User-Friendly Monitoring
- Equipped with an intuitive LCD LED display for real-time monitoring
- Supports communication interfaces: RS232, RS485, USB, SNMP
Superior Overload Capability
- Handles 110% for 60 minutes, 125% for 10 minutes, and 150% for 1 minute
- Ensures stable operation under demanding loads
Applications
- Small and Medium Data Centers
- Telecommunication Systems
- Commercial Offices
- Industrial Automation
- Medical and Laboratory Equipment
- Education Facilities
- Retail and IT Systems
Models
The SOETECK SY-M Series UPS, Online Modular UPS 5kVA-20kVA features flexible and scalable configurations, offering modular 5kVA power modules for seamless expansion. Designed for rack and tower mount installations, the system supports N X redundancy and delivers exceptional efficiency of up to 96%. With low THDi <3% and robust overload capabilities, this series ensures stable and reliable power protection for small and medium-sized applications.
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM3120/05DS | 5kVA | 277~478VAC (Line Voltage), 147~277VAC (Line Voltage) at full load, linearly derating from 100% to 50% load | 220/230/240VAC | ≥ 94.5% ( Normal mode ) | 3 phase N PE |
| SYM3120/10DS | 10kVA | 277~478VAC (Line Voltage), 147~277VAC (Line Voltage) at full load, linearly derating from 100% to 50% load | 220/230/240VAC | ≥ 94.5% ( Normal mode ) | 3 phase N PE |
| SYM3120/15DS | 15kVA | 277~478VAC (Line Voltage), 147~277VAC (Line Voltage) at full load, linearly derating from 100% to 50% load | 220/230/240VAC | ≥ 94.5% ( Normal mode ) | 3 phase N PE |
| SYM3120/20DS | 20kVA | 277~478VAC (Line Voltage), 147~277VAC (Line Voltage) at full load, linearly derating from 100% to 50% load | 220/230/240VAC | ≥ 94.5% ( Normal mode ) | 3 phase N PE |
