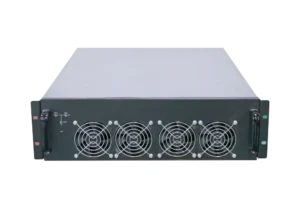

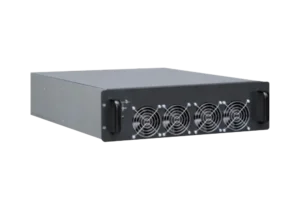

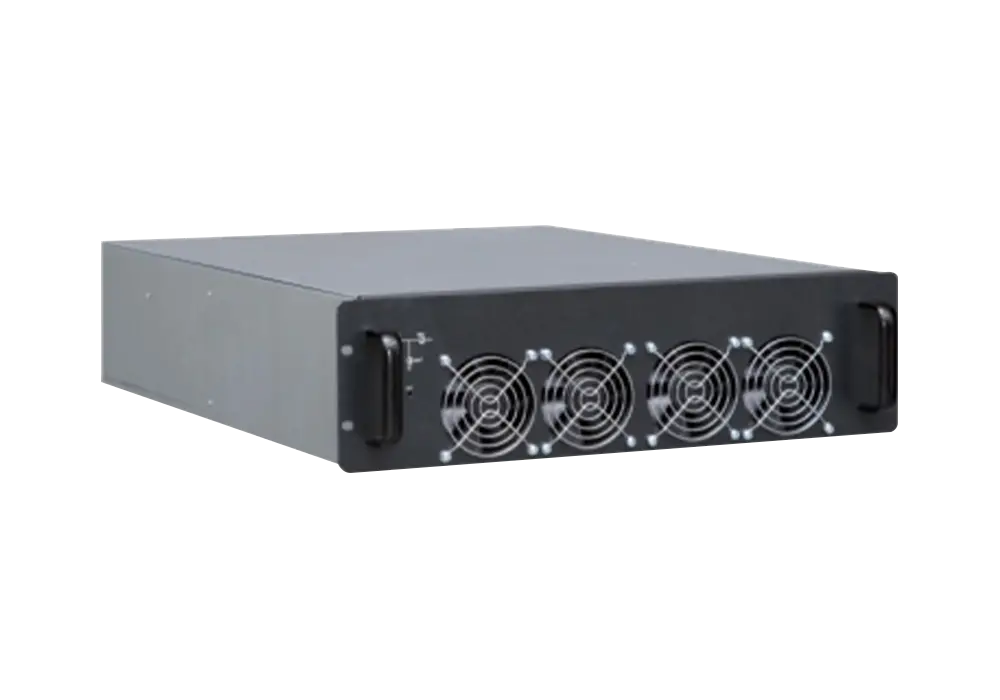

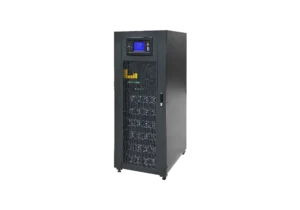

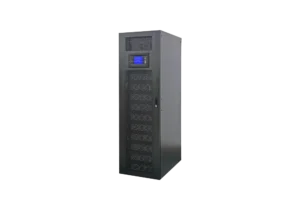

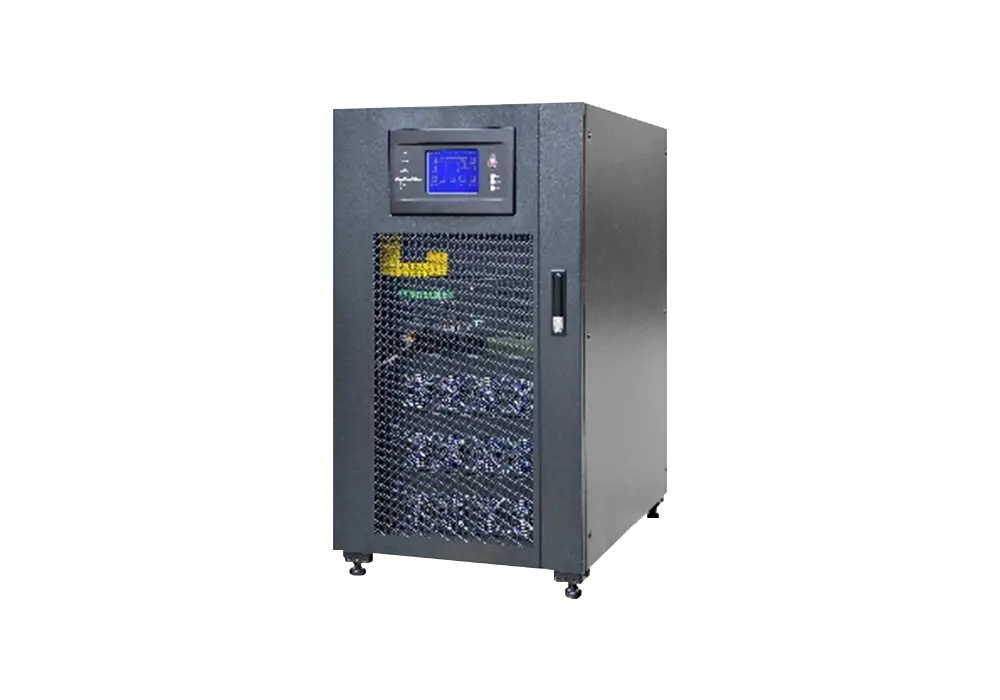

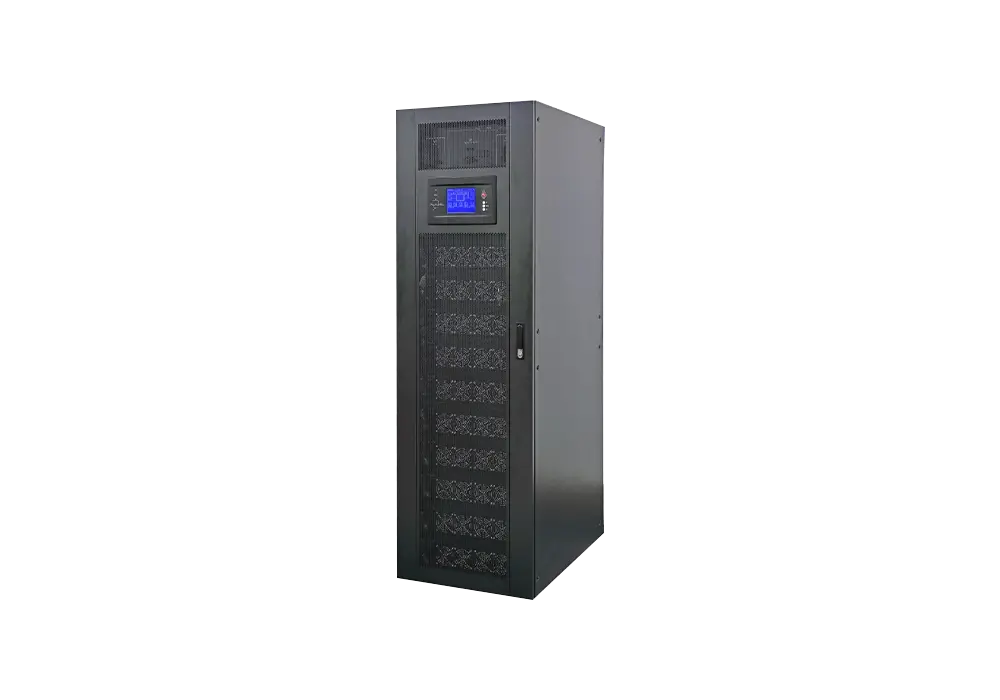

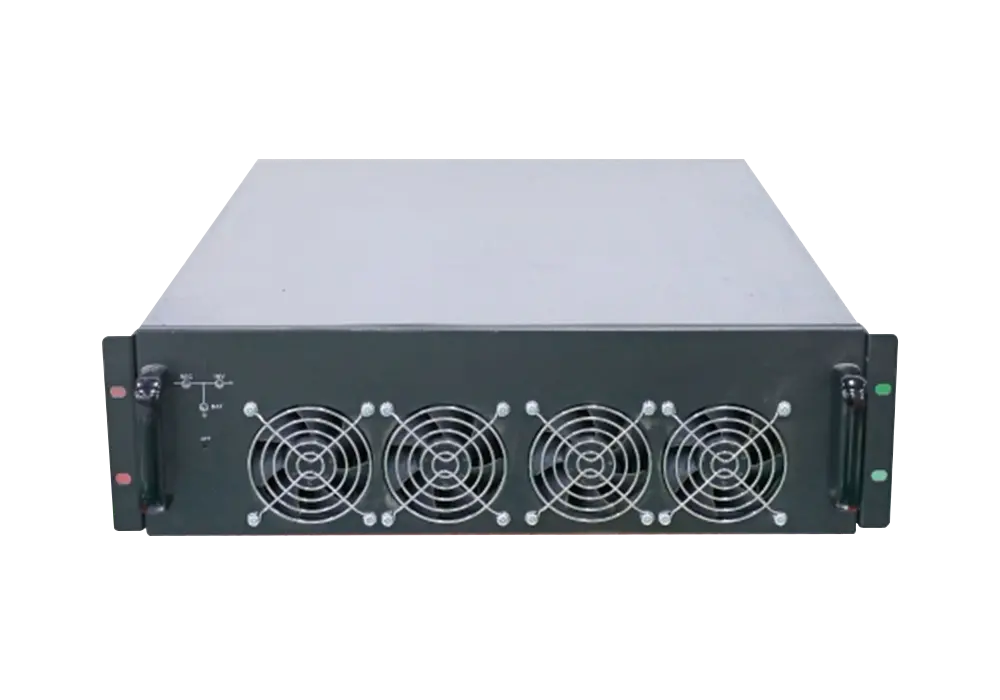

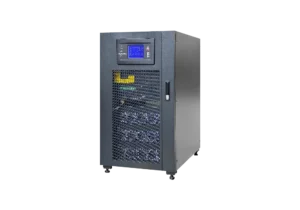

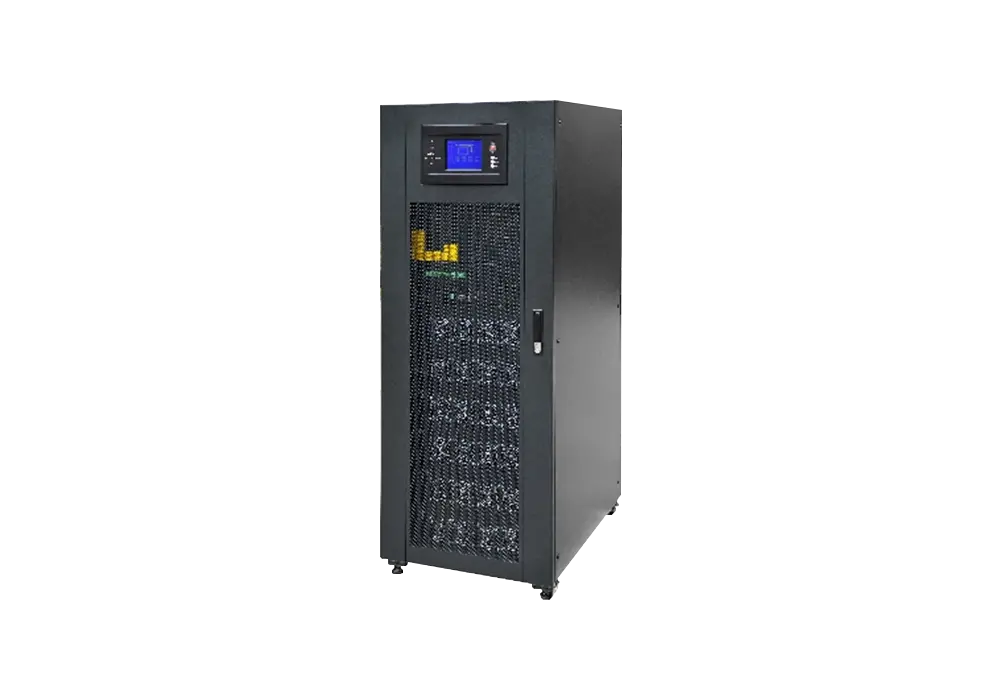

SOETECK Modular Online UPS 60kVA-200kVA, with 20kVA Power Module
The SY-M Modular Online UPS (20-200kVA) offers scalable power protection from 20kVA to 200kVA with a modular, hot-swappable design. Its high-power density (0.5m² footprint), integrated IGBT technology, and advanced DSP control ensure top-tier performance and reliability. Designed for data centers and critical applications, it supports N X redundancy, intelligent battery management, and easy maintenance. With a user-friendly LCD interface and independent air channel cooling, the SY-M Modular Online UPS (20-200kVA) provides efficient, flexible, and durable power solutions.
| UPS Structure | Online Double Conversion |
| Input Voltage | 380/400/415VAC |
| Input PF | >0.99 |
| Output Voltage | 380/400/415VAC |
| Output PF | 0.9 |
| Frequency | 40 - 70Hz |
| Efficiency | ≥ 95% |
| Wire | 3-phase N wire PE |
Product Overview
The SY-M Modular Online UPS (20-200kVA) series is designed to deliver reliable and flexible power protection for sensitive equipment. With its power rating ranging from 20kVA to 200kVA, the system meets diverse demands of data centers, telecommunications, and critical industrial applications. Its compact footprint of 0.5m² helps save valuable space, while advanced DSP control and IGBT technology ensure superior performance.
Featuring a hot-swappable modular design, the SY-M Modular Online UPS (20-200kVA) supports up to 20 power modules in parallel, offering N X redundancy. This guarantees system scalability and minimizes downtime during maintenance. The independent charging system intelligently prolongs battery life, enhancing long-term reliability. Moreover, the integrated IGBT modules reduce failure points and improve overall efficiency.
Equipped with a user-friendly LCD interface, the system provides comprehensive monitoring and control, improving operational convenience. The independent air channel design ensures efficient cooling and prevents dust intrusion, which is critical for long-term stability in harsh environments. The SY-M Modular Online UPS (20-200kVA) delivers unmatched reliability and efficiency, making it a perfect solution for modern critical power needs.
Features
High Power Density
- Compact footprint of 0.5m², saving valuable data center space
- Supports up to 200kVA capacity in a single cabinet
Modular and Scalable Design
- Supports up to 20 power modules in parallel with hot-swappable capability
- Ensures N X redundancy for enhanced reliability
Advanced Battery Management
- Independent charger for intelligent control, prolonging battery life
- Supports cold start for battery-only power-up
Integrated IGBT Technology
- Reduces failure points and ensures high efficiency and performance
- Delivers low input THDi and high power factor
User-Friendly Operation
- Equipped with a 5.7-inch LCD display and keyboard for real-time monitoring
- Offers programmable communication ports for flexible operation
Efficient Cooling Design
- Independent air channel for isolated cooling, preventing dust intrusion
- Maintains system performance and stability under critical conditions
Applications
- Data Centers
- Telecommunication Facilities
- Medical Equipment
- Industrial Automation
- Critical IT Infrastructure
Models

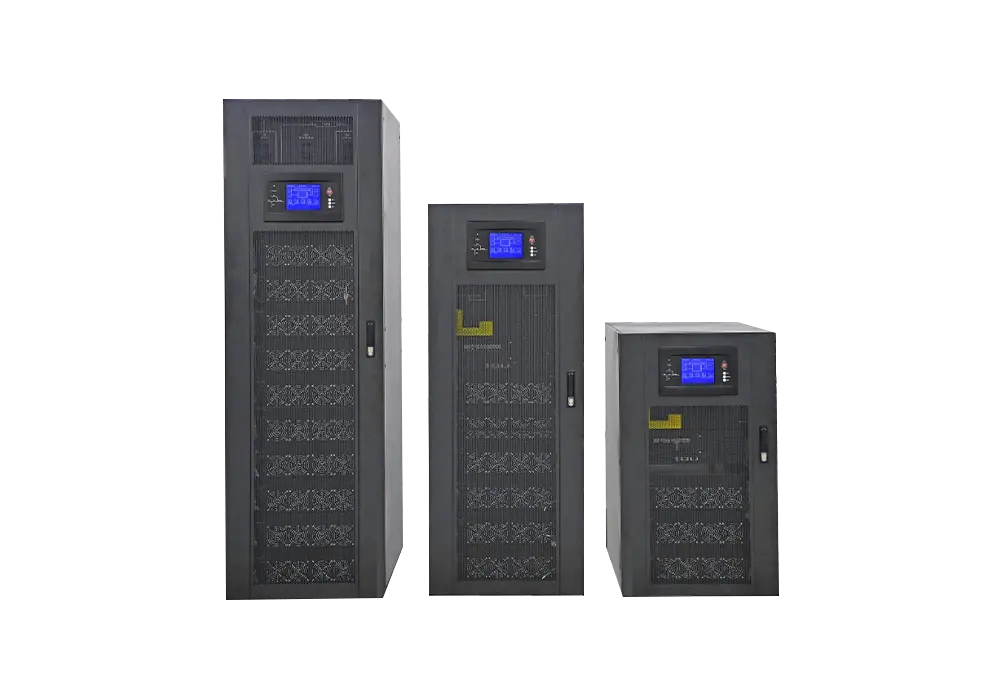

The SY-M Modular Online UPS (20-200kVA) series includes models ranging from 60kVA to 200kVA to meet various power protection requirements. The SY-M 200/20 delivers a robust 200kVA capacity with high-density performance in a compact design. For mid-sized applications, the SY-M 120/20 provides 120kVA power with scalability options. Meanwhile, the SY-M 60/20 model is ideal for smaller critical environments, offering 60kVA capacity while maintaining system efficiency and reliability. Each model features low input THDi, N X redundancy, and advanced battery management for optimal performance.
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM060/20 | 60kVA | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 95% ( Normal mode ) ; ≥ 99% ( ECO mode ) | 3 phase N PE |
| SYM120/20 | 120kVA | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 95% ( Normal mode ) ; ≥ 99% ( ECO mode ) | 3 phase N PE |
| SYM200/20 | 200kVA | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 95% ( Normal mode ) ; ≥ 99% ( ECO mode ) | 3 phase N PE |
Specifications
Data coming soon! Please revisit this page later, or reach out to us for additional details.
