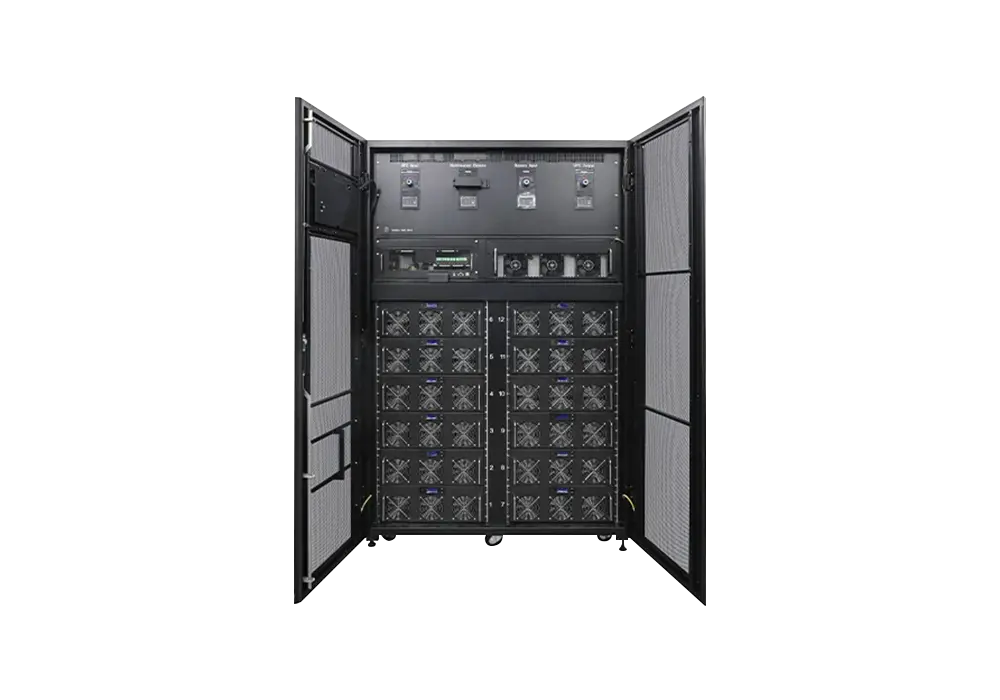

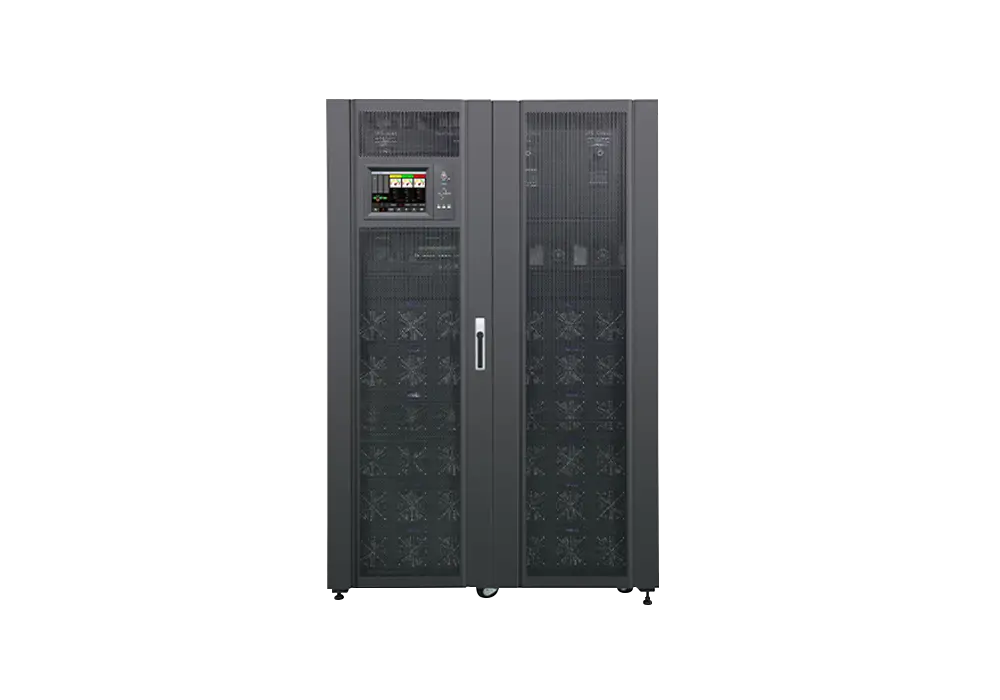

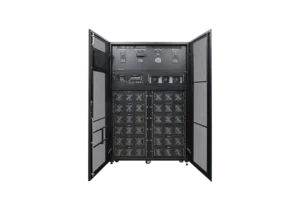

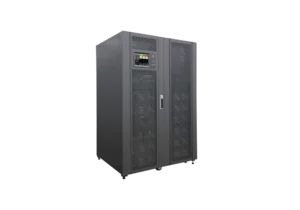

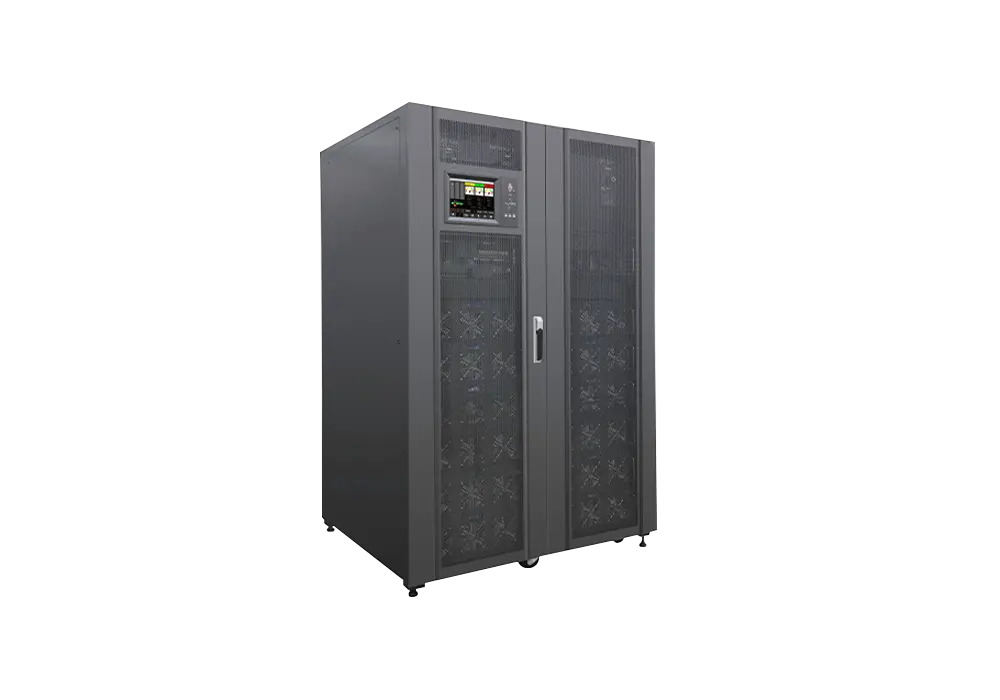

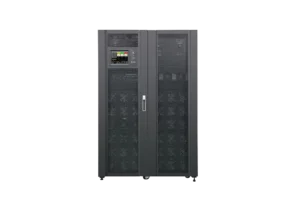

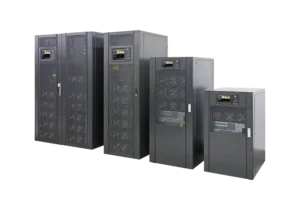

SOETECK Modular Online UPS 80kVA-600kVA, 40/50kVA Power Module
The SY-M Modular Online UPS (40-600kVA) is a scalable and high-efficiency power solution tailored for critical applications. With a capacity range of 40kVA to 600kVA, it features a modular N X redundancy design, intelligent energy management, and 96% efficiency. Hot-swappable modules and a 10.4-inch LCD touchscreen ensure seamless operation, maintenance, and monitoring, making it an ideal choice for large-scale data centers, industrial facilities, and government infrastructure.
| UPS Structure | Online Double Conversion |
| Input Voltage | 380/400/415VAC |
| Input PF | >0.99 |
| Output Voltage | 380/400/415VAC |
| Output PF | >0.99 |
| Frequency | 40 - 70Hz |
| Efficiency | ≥ 96% |
| Wire | 3-phase N wire PE |
Product Overview
The SY-M Modular Online UPS (40-600kVA) series is an advanced, scalable power protection solution designed for critical applications in large-scale facilities such as data centers, industrial plants, and government infrastructure. With a power capacity range from 40kVA to 600kVA, this series delivers exceptional efficiency, flexibility, and reliability for modern mission-critical environments.
Engineered with a three-level DSP control system, the SY-M Modular Online UPS (40-600kVA) ensures high power efficiency of up to 96%, reducing operational costs. Its modular design allows hot-swappable power modules for seamless maintenance and scalability. The system supports a strong N X redundancy configuration, maximizing uptime and reliability while ensuring adaptability to future power demands.
The intelligent energy-saving mode dynamically adjusts modules based on load, improving energy efficiency. Featuring a 10.4-inch LCD touchscreen for advanced monitoring, the system simplifies operation and management. Compact, robust, and equipped with high overload capability, the SY-M Modular Online UPS (40-600kVA) is the ideal choice for large-scale power protection.
Features
High Efficiency and Performance
- Delivers up to 96% efficiency, reducing energy costs and minimizing waste
- Supports three-level DSP control for precise and stable power management
Modular Scalability
- Power capacity range from 40kVA to 600kVA, adaptable to growing demands
- Hot-swappable power modules for seamless maintenance and scalability
Strong Redundancy and Reliability
- Supports N X redundancy for high availability and continuous operation
- Intelligent energy-saving mode dynamically adjusts modules to optimize load distribution
User-Friendly Monitoring
- Equipped with a 10.4-inch LCD touchscreen for advanced system monitoring and control
- Rich diagnostic and fault history logs for easy troubleshooting
Robust Overload Capability
- Handles 110% for 1 hour, 125% for 10 minutes, and 150% for 1 minute overloads
- Ensures stability in critical power environments
Applications
- Large Data Centers
- Industrial Manufacturing
- Financial Institutions
- Government Infrastructure
- Telecommunication Facilities
- Healthcare Systems
- Broadcast and Media Centers
- Energy and Utility Companies
- Transportation Infrastructure
Models

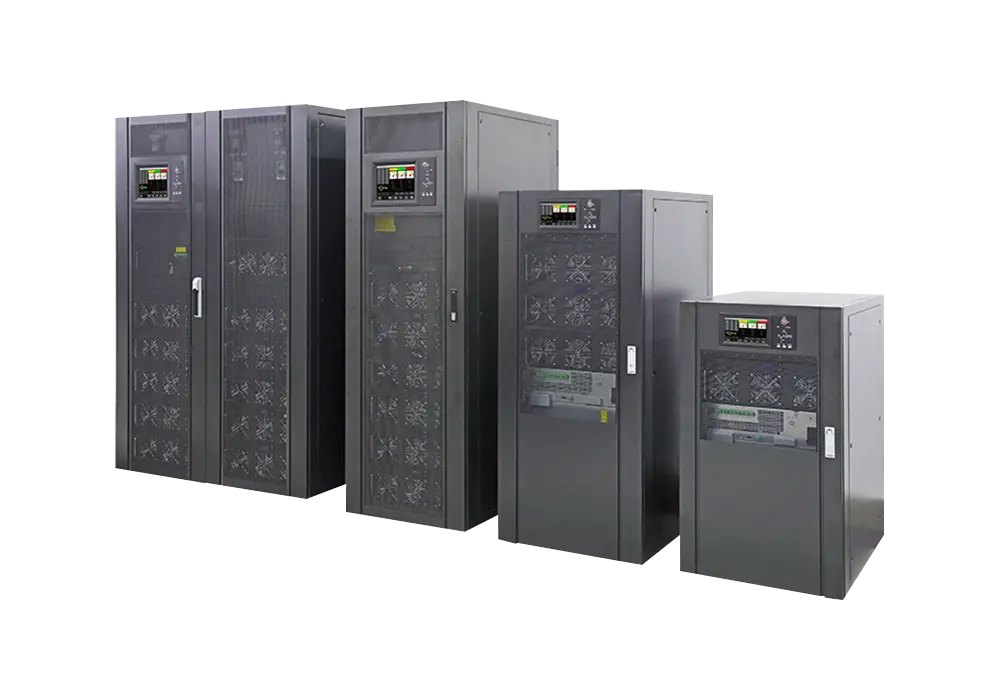

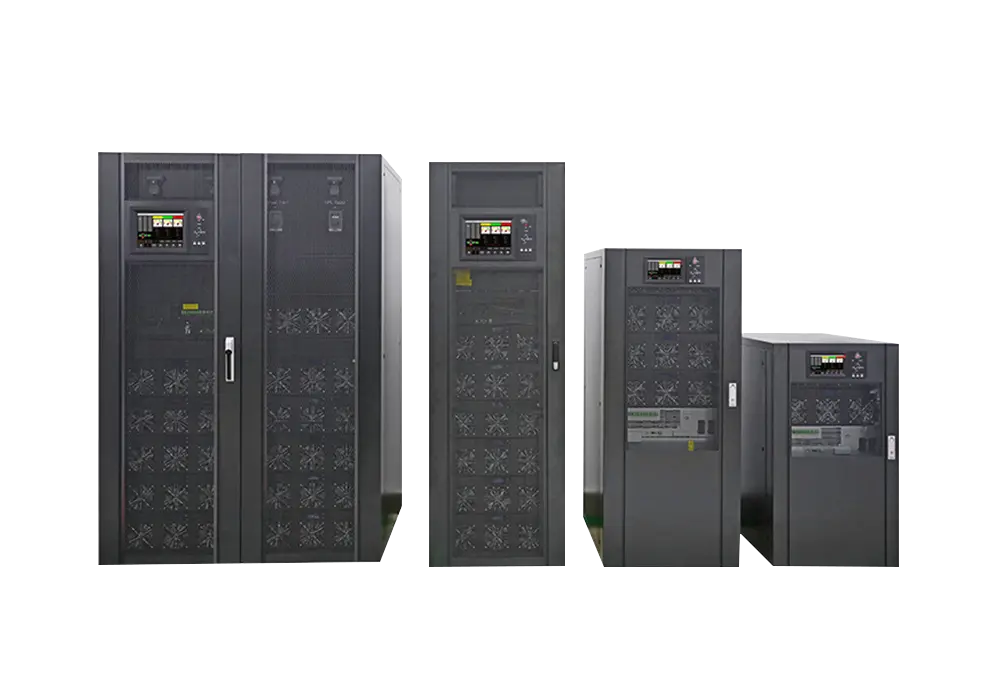

The SY-M Modular Online UPS (40-600kVA) series includes flexible models to cater to a wide range of applications. The SY-M 80/40 and SY-M 100/50 provide robust 80kVA and 100kVA outputs for medium-sized setups, while the SY-M 160/40 and SY-M 200/50 offer 160kVA and 200kVA for growing demands. For large-scale applications, the SY-M 500/50 and SY-M 600/50 deliver up to 600kVA, ensuring stable, high-capacity power. Featuring low THDi, high efficiency, and advanced monitoring, these models provide unparalleled performance for critical environments.
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM080/40X | 80kVA(40x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM100/50X | 160kVA(40x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM160/40X | 240kVA(40x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM200/50X | 100kVA(50x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM240/40X | 200kVA(50x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM300/50X | 300kVA(50x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM400/50X | 400kVA(50x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM500/50X | 500kVA(50x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
| SYM600/50X | 600kVA(50x) | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 96% ( Normal mode ) ; 96% （ Battery mode ） | 3 phase N PE |
Specifications
Data coming soon! Please revisit this page later, or reach out to us for additional details.
