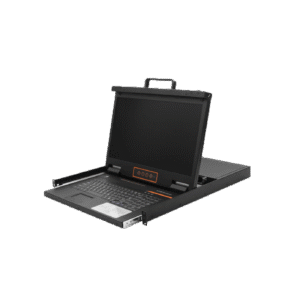

    SOETECK VGA LCD KVM Switch

    The SOETECK VGA LCD KVM Switch integrate multi-port switching in a 1U console, letting you control up to 8/16 computers via one monitor, keyboard, and mouse. It cuts peripheral costs/space, installs plug-and-play, and supports various hardware/OS, suiting scenarios from small offices to data centers.

    LED ModelFHD TFT
    View Area18.47″
    Input Power100V- 240Vac, 50-60Hz, <1.5A
    Port EmulationUSB
    Power Consumption27/29 W
    W*D*H448*560*42.5 mm


    Product Overview

    Integrated into a 1U height console, this VGA LCD KVM Switch allows control of multiple computers via a single set of peripherals—including a monitor, keyboard, and mouse. This integration eliminates the need to equip each computer with separate input and display devices, significantly reducing costs and saving space.
    This VGA LCD KVM Switch console offers easy and fast installation: users only need to connect the appropriate cables to the correct ports of the KVM and its modules, with no software configuration required. It supports direct control of up to 8 or 16 computers, and is compatible with multiple hardware platforms and operating systems, making it versatile for various IT environments.

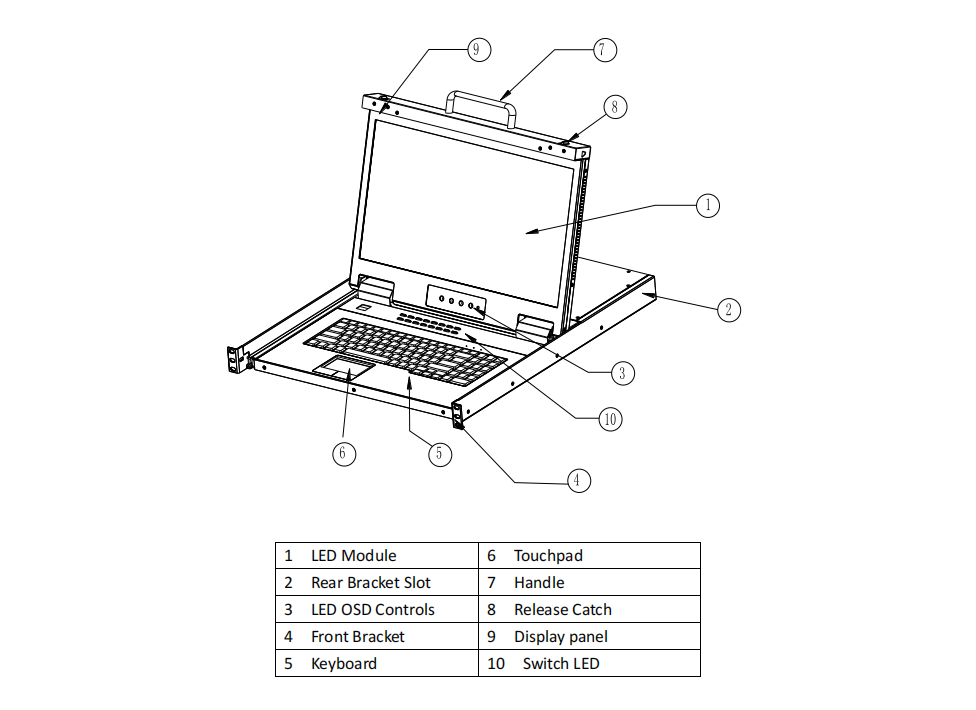

    SOETECK VGA LCD KVM Switch Product Display

    Features

    Hardware & Space-Design

    • All-in-One Console Design: Combines an 18.5” FHD TFT monitor, a 99-key keyboard (with 17 independent numeric keys), and a high-precision touchpad (with scroll wheel) into a single unit. This eliminates the need for separate external peripherals, reducing desk or rack clutter and simplifying setup.
    • 1U Rack-Mount Compatibility: Features a 1U height structure that fits standard 19” racks, optimizing vertical rack space utilization. The metal build enhances durability, while components like the rear bracket slot and handle facilitate easy installation and maintenance in data center or server room environments.

    Flexible Control & Scalability

    • Multi-Method Management & Batch Operations: Supports three computer switching modes (front-panel LEDs, keyboard hotkeys, OSD menu) to suit different user habits. It also includes auto-scan for real-time monitoring of selected computers and broadcast mode for executing operations (e.g., software updates) simultaneously across multiple devices, boosting efficiency.
    • Daisy-Chain Expansion: Enables cascading with up to 31 additional KVM switches, expanding control from 8/16 direct-connected computers to a maximum of 256 (SY1808) or 512 (SY1816) servers. This scalability makes it ideal for large-scale IT infrastructures like data centers requiring centralized server management.

    Compatibility & Reliable Operation

    • Cross-Platform & Hardware Support: Works seamlessly with operating systems including Windows, Sun, Unix, and Linux, and supports servers from major brands (Lenovo, HUAWEI, HP, IBM, Cisco, Dell). This ensures stable performance in mixed-software or mixed-hardware IT setups.
    • Uninterrupted Maintenance & Environmental Adaptability: Supports hot-plugging, allowing computers to be added/removed without powering down the switch—minimizing downtime for critical systems. It also operates in 0–50℃ (working) / -20–60℃ (storage) temperatures and 0–80% non-condensing humidity, with global power compatibility (100V–240Vac), ensuring reliability across diverse environments.

    Applications

    • Data Centers
    • Telecommunication Facilities
    • Renewable Energy Systems
    • Petrochemical & Industrial Control Rooms
    • Industrial Power Backup
    • Transportation Hub Control Centers

    Models

    The SOETECK SY1808 and SY1816 are 18.5” VGA LCD KVM Switch variants, both integrated into 1U height rack-mount consoles for centralized, space-saving computer control. They share core hardware and features but differ in direct connection capacity to match varying IT scale needs.
    ModelsView AreaOptimum ResolutionComputer ConnectionsPower ConsumptionWidthDepthHeightAppox.Weight
    SY180818.47″1920×1080@60HzDirect:8 / Max:25627W44856042.511.8kg
    SY181618.47″1920×1080@60HzDirect:16 / Max:51229W44856042.512kg

    Specifications

    Expand All
    GENERAL
    COMPUTER CONNECTIONS
    PORT EMULATION
    LED MONITOR
    PERIPHERAL
    DIMENSION

    Download Brochures

    Find supports from SOETECK teams

    If you are interested in this product, please share your industry background and specific requirements, along with your expected services. These will help us provide you with more personalized solutions and accurate quotes.
