SOETECK 42U Server Rack Cabinet – Highly Customizable for Data Centers & IT Infrastructure

The SOETECK SCM Series 42U Server Cabinet is a high-performance rack solution designed for data centers, enterprise IT environments, and cloud computing facilities. Engineered to support high-density server installations, this cabinet provides optimal airflow, structural integrity, and flexible cable management to ensure peak efficiency in demanding operations.

Constructed from premium cold-rolled steel and coated with an electrostatic powder finish, the Server CabinetS offer superior durability, corrosion resistance, and compliance with ANSI/EIA-310-D, IEC297-2, and ETSI standards. The cabinet features a modular design with a “G” frame structure, enhancing its static load capacity while allowing rapid equipment adjustments.

This server cabinet is equipped with high-perforation doors to improve airflow efficiency, achieving over 70% ventilation through its hexagonal perforated panels. Additionally, front and rear double doors with an opening angle of 110° enhance accessibility for maintenance. With a static load capacity of 1800KG and an IP20 protection rating, it ensures secure deployment in controlled IT environments, making it an ideal choice for mission-critical infrastructure.

Superior Structural Design

• Engineered with a “G” frame structure for enhanced stability and high load-bearing capacity.
• Constructed from premium cold-rolled steel for durability and strength.
• Electrostatic powder coating ensures corrosion resistance and a long lifespan.

Optimized Airflow Management

• High-perforation doors with 70% ventilation rate for effective cooling.
• Hexagonal perforation pattern enhances air circulation to reduce heat buildup.
• Supports bottom-up cooling integration for efficient thermal management.

Enhanced Accessibility & Security

• Front and rear double doors with 110° opening angle for easy maintenance.
• Equipped with MS829 advanced locks for enhanced security.

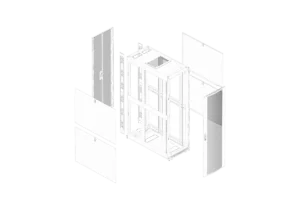

• Removable top and side panels facilitate quick installation and cable routing.

High Load Capacity

• Static load-bearing capacity of 1800KG, ensuring safe equipment deployment.
• Supports various rack-mounted IT infrastructure, including servers, PDUs, and networking equipment.

Compliance with Industry Standards

• Designed to meet ANSI/EIA-310-D, IEC297-2, and ETSI standards.
• IP20 protection rating for safe deployment in controlled environments.
• RoHS-compliant materials ensure eco-friendly manufacturing.

• Data Centers
• Cloud Computing
• Colocation Hosting
• Edge Computing
• Network Distribution
• Financial IT Infrastructure
• Security & Surveillance
• High-Density Computing

The SOETECK SCM Series 42U Server Cabinet is designed to meet the demands of modern high-density computing environments. With configurations available in 600mm and 800mm widths and depths ranging from 900mm to 1300mm, it offers adaptable solutions for various IT deployments.
