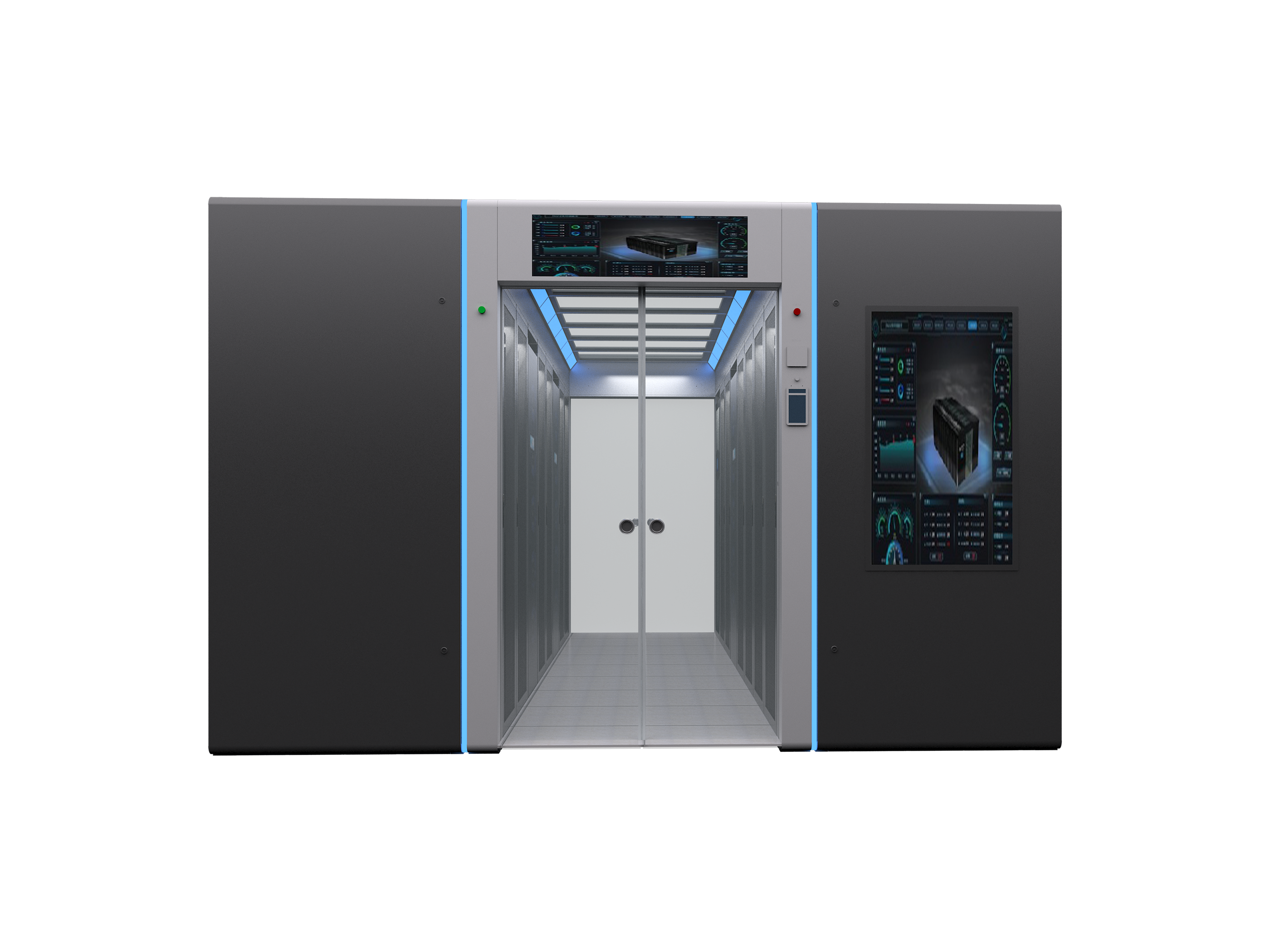

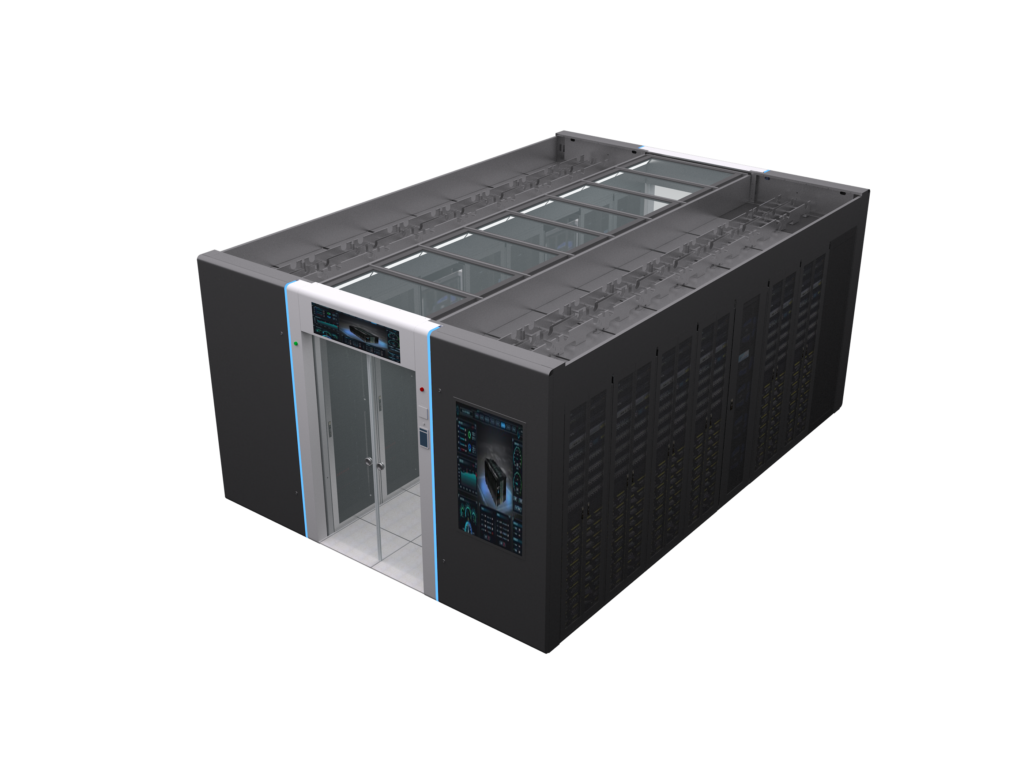

Aisle Modular Data Center

Enhancing IT Infrastructure with SOETECK’s Micro Modular Data Center Solutions. Delivering Unmatched Scalability and Performance Anytime, Anywhere.

Smart, Efficient, and Scalable Micro Modular Data Center

In today’s data-driven world, the demand for efficient data processing is rapidly growing with the rise of 5G, IoT, and AI. To meet this need, SOETECK has developed the Cabinet Modular Data Center, which addresses common challenges in traditional data centers, including long setup times and high operational costs. Our modular design allows for flexible configurations ranging from 1 to 10 cabinets, features high seismic resistance, and can be installed in just one hour thanks to its plug-and-play design.

The SOETECK Cabinet Modular Data Center delivers exceptional value with an intelligent monitoring system that tracks temperature, humidity, and power usage in real time, enhancing safety and reliability. Its fully sealed IP5X design effectively separates hot and cold airflows while keeping noise levels below 49 decibels, creating a comfortable working environment. With high-efficiency UPS systems and variable-speed cooling, it achieves a low Power Usage Effectiveness (PUE) of 1.4 for significant energy savings.

Widely used in banking, education, healthcare, manufacturing, and government sectors, SOETECK’s solutions are designed to meet diverse data processing needs. Compared to traditional setups, they can reduce construction costs by 30%, cut setup times by 90%, and save up to 80% in space. Our unified management platform allows for seamless remote monitoring and maintenance, enhancing overall user experience.

Aisle Modular Data Center Solution - 9

GET BROCHURE

Details of Our Cabinet Data Center Solution

1 – Typical Designs of Our Cabinet DC

The containerized data center provides an integrated solution for power distribution, cooling management, fire safety, and structured cabling. It is designed to offer safety, reliability, and efficiency in a compact format.

Key Features:

Safety and Reliability: Built to high safety standards with multiple protective measures, including fire resistance, water resistance, and enhanced security features.
Rapid Deployment: The design enables quick setup and installation, allowing for operational readiness in a short timeframe.
Flexible Scalability: Modular architecture supports easy expansion to accommodate changing requirements.
High Density and Efficiency: Efficient use of space allows for high computing power while minimizing resource consumption.
Intelligent Management: Equipped with monitoring and management systems for effective oversight and maintenance.

2 – Featured Models

Our integrated cabinet system for data centers comprises three types: the All-in-One AC Version (3-6 kVA), Rack-Mounted AC Version (3-10 kVA), and Row-Based AC Version (6-20 kVA). Each integrates UPS, power distribution, and monitoring systems, providing efficient and flexible solutions to meet the needs of data centers of various scales. These designs optimize space utilization while ensuring equipment safety and continuous operation.

with Top-mount Packaged Rack Cooling

Integrated in a fully enclosed cabinet with top-mounted packaged air conditioning, 3-6 kVA UPS, power distribution, battery, monitoring, and security systems. No separate outdoor unit is needed for true plug-and-play functionality.

with Rack Cooling

Integrated in a fully enclosed cabinet with rack air conditioning, 3-10 kVA UPS, power distribution, battery, monitoring, and security systems. The split design reduces U-space occupancy while ensuring low noise levels.

with in-Row Rack Cooling

Integrated in a fully enclosed cabinet with in-row air conditioning, 6-20 kVA UPS, power distribution, battery, monitoring, and security systems. The in-row cooling system saves U-space of cabinets while enhancing cooling performance.

SOETECK offers highly customizable cabinet modular data center designed to meet the demands of modern data centers. This series of intelligent cabinets can be paired with various types of racks or precision air conditioning systems to accommodate different application environments of varying sizes. The cooling capacity can be tailored according to customer requirements, with the entire cabinet featuring a hot and cold aisle containment design that ensures efficient operation, achieving a PUE as low as 1.4 and effectively reducing energy consumption. The truly plug-and-play design allows for deployment in just 10 minutes, significantly enhancing response times and adapting flexibly to rapidly changing market needs.

With an IP5X protection rating, the fully enclosed structure effectively prevents dust and noise, ensuring the safe and stable operation of the equipment. The internal insulation materials not only prevent condensation but also reduce cooling loss, further enhancing cooling efficiency. Additionally, the emergency pop-open door system and the three-in-one access control system provide enhanced security, while the standard monitoring touchscreen and remote management capabilities offer intelligent oversight, supporting multiple northbound protocols for centralized monitoring and management. With its exceptional performance and flexible configurations, the SOETECK integrated cabinet stands out as the ideal choice for high-demand data centers.

Do You Need a Cabinet Data Center?

If your business encounters any of the following scenarios, a cabinet data center could be the perfect solution:

You require high-density server deployment to maximize space utilization in your facility.
You need reliable and scalable infrastructure that can grow in tandem with your business demands.
You seek a cost-effective solution that minimizes both initial capital investment and ongoing operational costs.
You prioritize physical security and redundancy features to ensure continuous data availability and disaster recovery capabilities.
You are looking for an efficient cooling solution to maintain optimal operating conditions for your IT equipment.

3 -Key Components

The SOETECK cabinet data center solution consists of several key components, including the cabinet system, thermal control system, critical power supply, and dynamic environment system. Here, you will find details about several core systems.

Thermal Management

SOETECK offers comprehensive cooling solutions tailored for data centers and base stations, including room-level, row-level, and rack-level precision air conditioning systems. To effectively address the cooling demands of high-density computing applications within individual cabinets, our rack-level and row-level precision air conditioning systems are designed for efficiency and cost-effectiveness.

No posts found

Critical Power

The SOETECK cabinet data center solution incorporates an efficient power distribution system, featuring a range of rack-mounted UPS units and custom-designed distribution modules. Customers can choose from either rack-mounted lithium batteries or lead-acid batteries to suit their needs. We also offer tailored UPS selection services, along with comprehensive distribution design and manufacturing. Furthermore, based on your required backup duration, we provide a variety of battery options, including battery packs, battery cabinets, and battery racks.

No posts found

Featured Models and Specifications

Models	SY-MDC-03N	SY-MDC-06T	SY-MDC-10R	Customized
Usable Space (U)	18	31	27	Customized
Redundancy Type	N	N	N	N / N+1 / 2N
Cooling Type	Integrated AC	Split-type AC	Split-type AC	Integrated / Split
AC Location	Top-mounted	Rack-mounted	Rack-mounted	As required
Cooling Capacity (kW)	3.5	3.5	6.5	Customized
UPS Capacity (kVA)	3	6	10	3 ~ 20
PDU Ports	Standard 8	Standard 16	Standard 16	Standard / Intelligent
Emergency Ventilation	Auto-opening door	Auto-opening door	Auto-opening door	Auto-opening door

SOETECK Cabinet Modular Data Center.pdf

Transportation and Installation

transportation package-11 cabinet data center-8

Complete Unit Transportation
The entire product is factory pre-adjusted, with enhanced vibration resistance design. Except for the outdoor air conditioner, all other equipment is transported as a complete unit.

On-site Installation of Only the Outdoor Air Conditioner
Transportation costs and on-site construction and commissioning costs are significantly reduced, shortening the time and lowering the failure rate.
